Horizontal boring mills

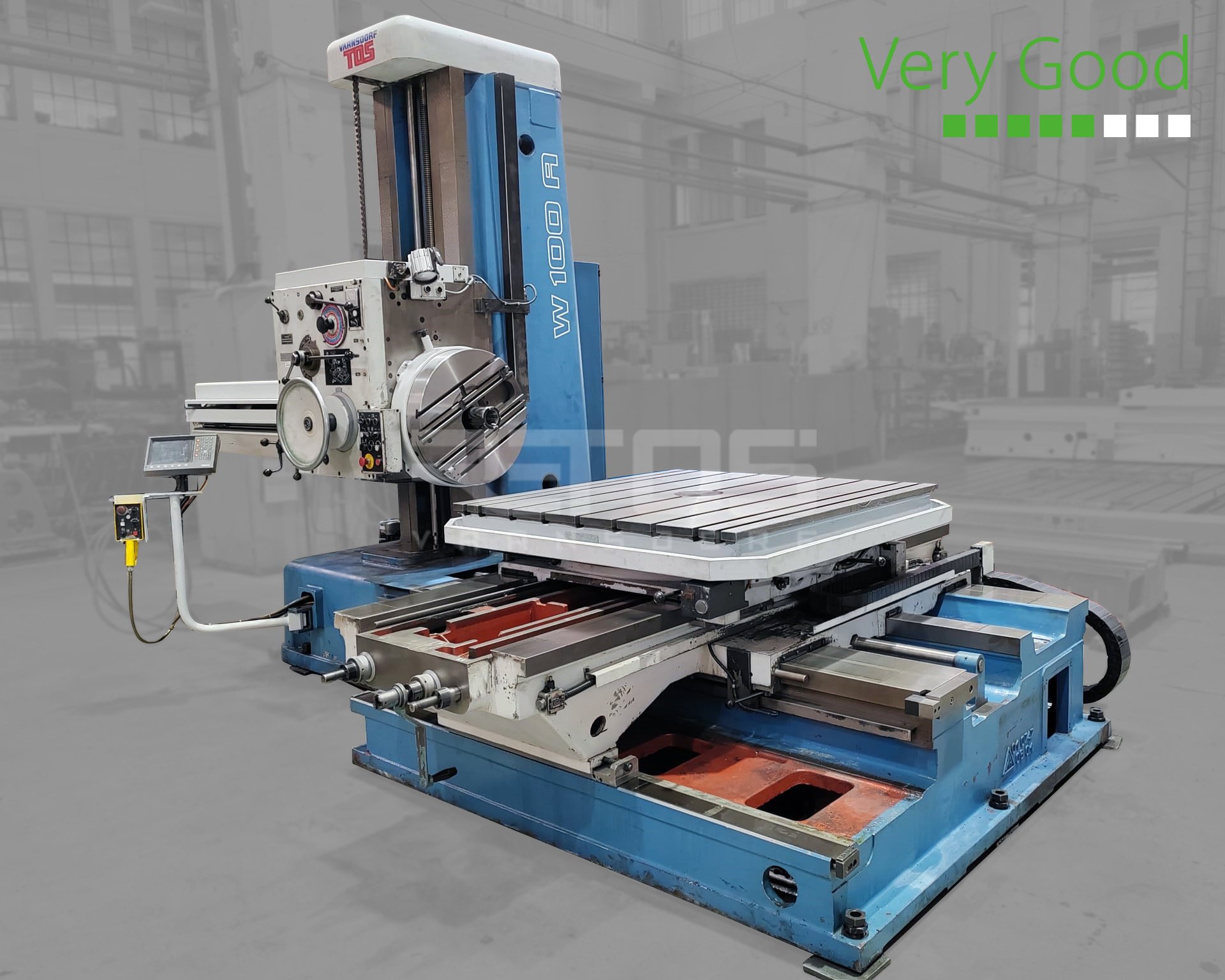

W100A, 2006 | 13.09.2023

■  TABLE TYPE HORIZONTAL BORING MILL

■  PRODUCER: TOS VARNSDORF

■  PRODUCTION YEAR: 2006

■  REPAIR YEAR: 2023

■  CONDITION: USED, VERY GOOD

■  WARRANTY: YES

■  IN STOCK

Request

SPECIFICATION

■  the machine is fully functional

■  measurement Heidenahain PT 880 DRO of 4 axes (X, Y, Z, W)

■  PP100 - portable control panel

■  CHZ100 - tool cooling kit - fluid



SCOPE OF REPAIR 2023

■  Cleaning, revision and technical inspection

■  Complete machine geometry repair (90% condition - geometric accuracy protocol on request)

■  Regrinding of the spindle taper cavity

■  Turning table surface

■  Adjusting the starting clutch and rapid traverse clutch

■  Repairing of machine control and tool clamping

■  Repairing and turning the faceplate surface

■  Replacing of guideway wipers

■  Replacing X-axis cover

■  Revision of lubrication

■  Revision of tool cooling CHZ100

■  Revision of table optical admeasuring

Parameters

Workspindle diameter 100 mm
Clamping taper 50 ISO
Spindle speed range 1120 rpm
Table transversal travel (X) 1600 mm
Headstock travel (Y) 1120 mm
Table longitudinal travel (Z) 1250 mm
Spindle stroke (W) 900 mm
Table clamping surface 1250 x 1250 mm x mm
Table loading capacity 3000 kg
