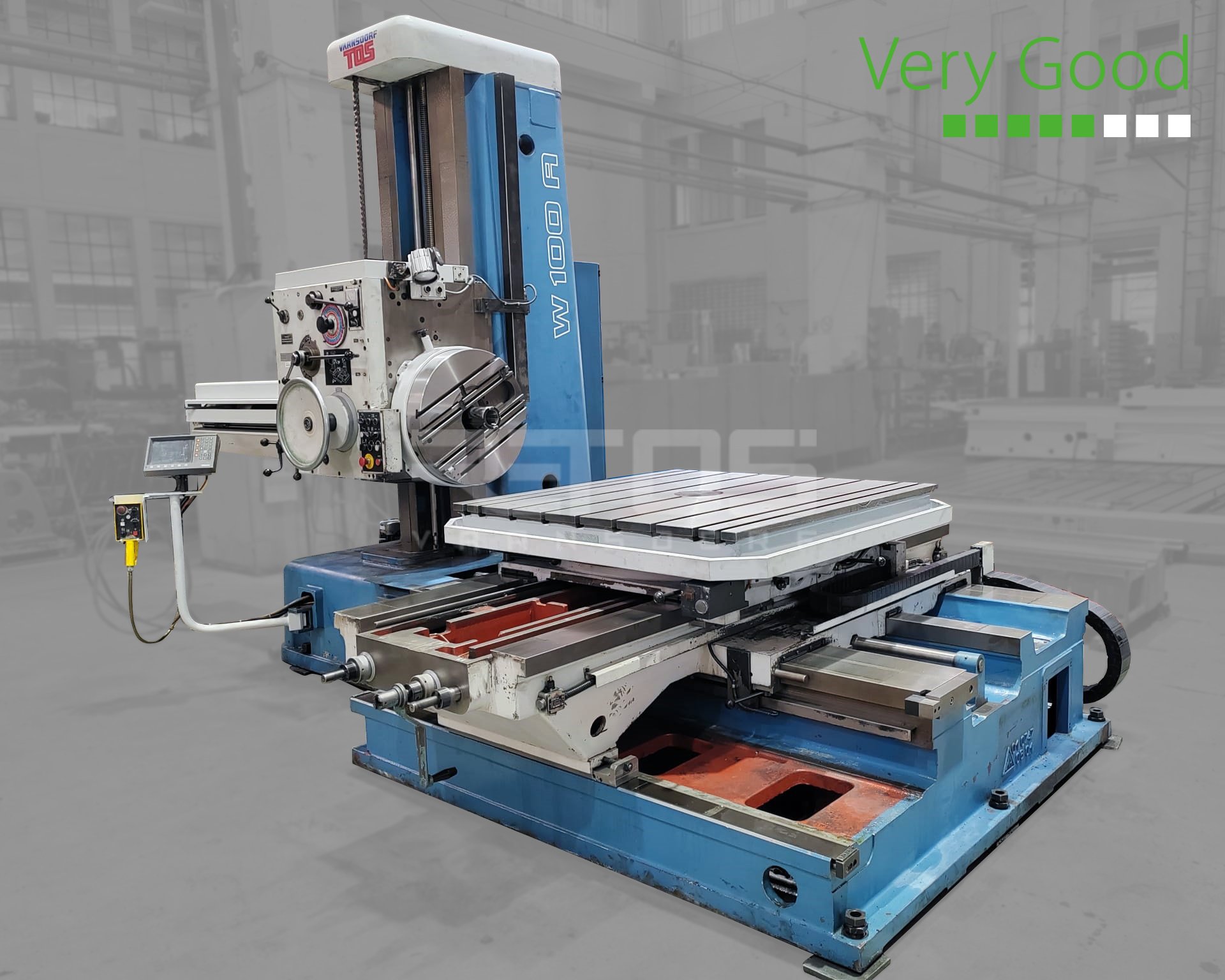

W100A, 2006 | 13.09.2023
■ TABLE TYPE HORIZONTAL BORING MILL
■ PRODUCER: TOS VARNSDORF
■ PRODUCTION YEAR: 2006
■ REPAIR YEAR: 2023
■ CONDITION: USED, VERY GOOD
■ WARRANTY: YES
■ IN STOCK
SPECIFICATION
■ the machine is fully functional
■ measurement Heidenahain PT 880 DRO of 4 axes (X, Y, Z, W)
■ PP100 - portable control panel
■ CHZ100 - tool cooling kit - fluid
SCOPE OF REPAIR 2023
■ Cleaning, revision and technical inspection
■ Complete machine geometry repair (90% condition - geometric accuracy protocol on request)
■ Regrinding of the spindle taper cavity
■ Turning table surface
■ Adjusting the starting clutch and rapid traverse clutch
■ Repairing of machine control and tool clamping
■ Repairing and turning the faceplate surface
■ Replacing of guideway wipers
■ Replacing X-axis cover
■ Revision of lubrication
■ Revision of tool cooling CHZ100
■ Revision of table optical admeasuring
ПАРАМЕТРЫ
| Workspindle diameter | 100 | mm |
| Clamping taper | 50 | ISO |
| Spindle speed range | 1120 | rpm |
| Table transversal travel (X) | 1600 | mm |
| Headstock travel (Y) | 1120 | mm |
| Table longitudinal travel (Z) | 1250 | mm |
| Spindle stroke (W) | 900 | mm |
| Table clamping surface | 1250 x 1250 | mm x mm |
| Table loading capacity | 3000 | kg |
