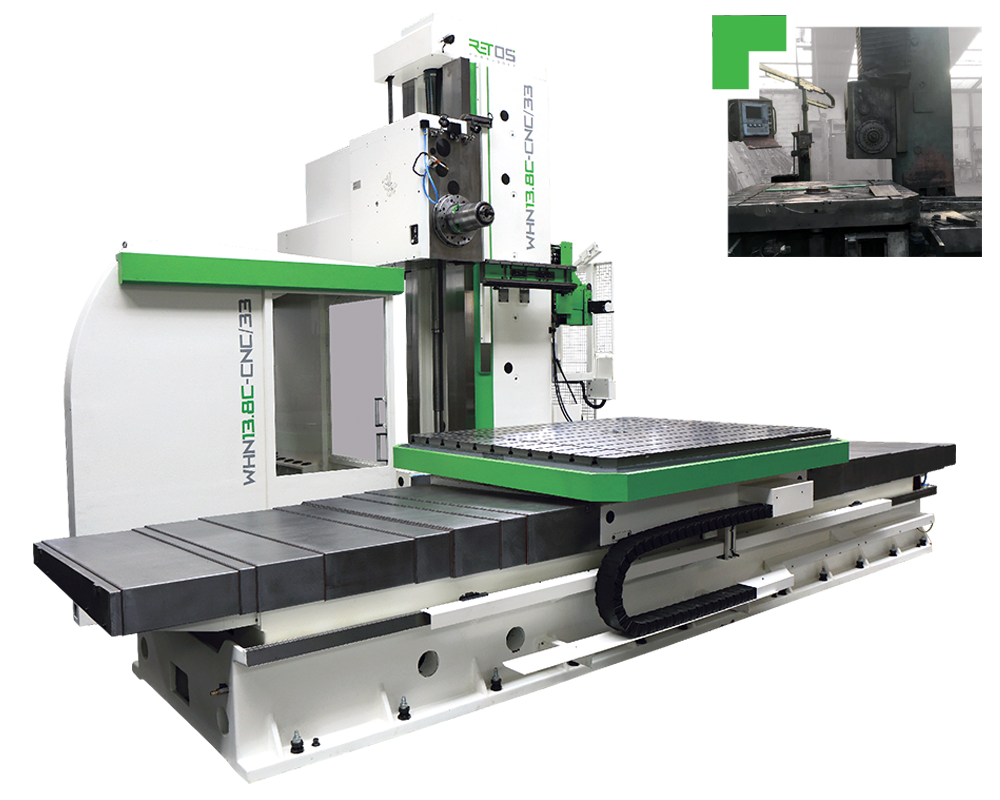

Horizontal boring mills

WH13CNC, OVERHAUL 2023 | 01.11.2023

■ HORIZONTAL BORING MILL – T TYPE

■ PRODUCER: TOS VARNSDORF

■ OVERHAUL YEAR: 2023 RETOS

■ CONDITION: AFTER OVERHAUL

■ WARRANTY: YES

■ IN STOCK

Request

SPECIFICATION

■ HEIDENHAIN TNC 640 control system

■ HEIDENHAIN drives and SIEMENS motors

■ Ready for CHOV + ATC

■ Can be equipped with other optional accessories - delivery on request

MAIN PARAMETERS

Workspindle diameter 130 mm
Clamping taper 50 ISO
Spindle speed range 3000 rpm
Transversal table travel (X) 3500 mm
Vertical headstock travel (Y) 2000 mm
Longitudinal table travel (Z) 1250 mm
Spindle stroke (W) 800 mm
Table clamping surface 2500 x 1800 mm x mm
Table loading capacity 12000 kg
