WHQ13.8-CNC/30, 2005 | 2.12.2024

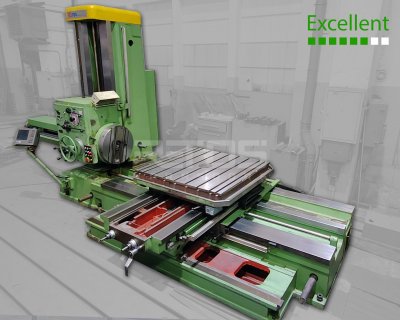

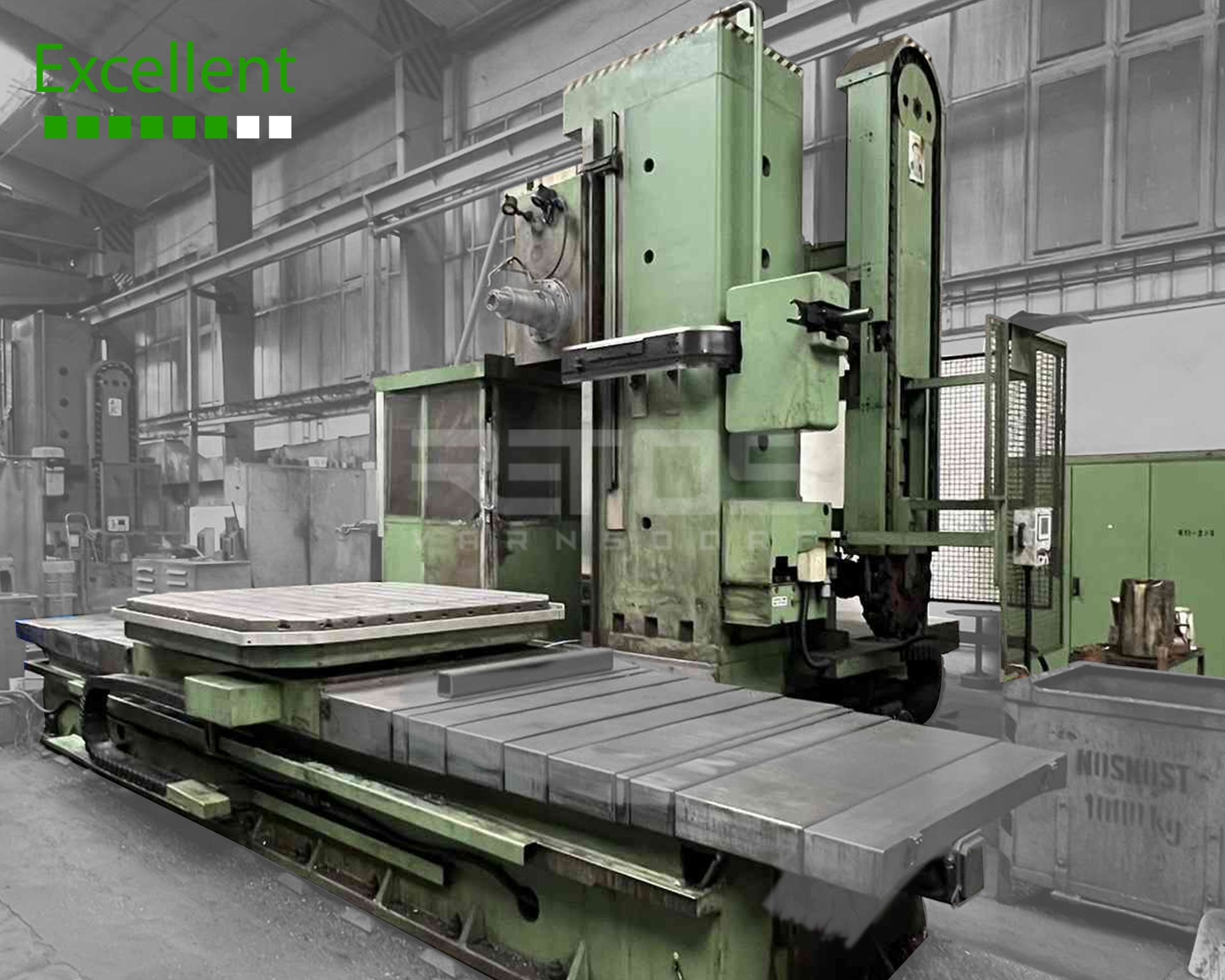

■ T-TYPE HORIZONTAL BORING MILL
■ PRODUCER: TOS VARNSDORF
■ PRODUCTION YEAR: 1980
■ MODERNISATION AND OVERHAUL YEAR: 2005 (RETOS)
■ REPAIR YEAR: 2024 (RETOS)
■ CONDITION: USED, EXCELLENT
■ WARRANTY: YES
■ IN STOCK AT THE SUPPLIER
SPECIFICATION
■ HEIDENHAIN iTNC530 control system + handwheel
■ SIEMENS motors and drives
■ CHZ13 - tool cooling - emulsion
■ ATC60 - automatic tool changer
■ operator platform
SCOPE OF REPAIR 2024
■ Cleaning
■ Revision and machine geometry adjustment
■ Revision of machine functionality
■ Revision of electrical equipment
■ Revision of hydraulic and lubrication
■ Clearance adjustment and drive optimisation
■ Replacing of guideway wipers
■ Repair of machine telescopic covers
■ Replacing of counterweight cables
■ Repair of operator platform
■ Revision of tool cooling CHZ13
■ Revision of automatic tool changer ATC60
MAIN PARAMETERS
| Workspindle diameter | 130 | mm |
| Clamping taper | 50 | ISO |
| Spindle speed range | 3000 | rpm |
| Transversal table travel (X) | 3500 | mm |
| Vertical headstock travel (Y) | 2000 | mm |
| Column longitudinal travel (Z) | 1250 | mm |
| Spindle stroke (W) | 800 | mm |
| Table clamping surface | 1800 x 1800 | mm x mm |
| Table loading capacity | 12000 | kg |
