Horizontal boring mills

SP100-500

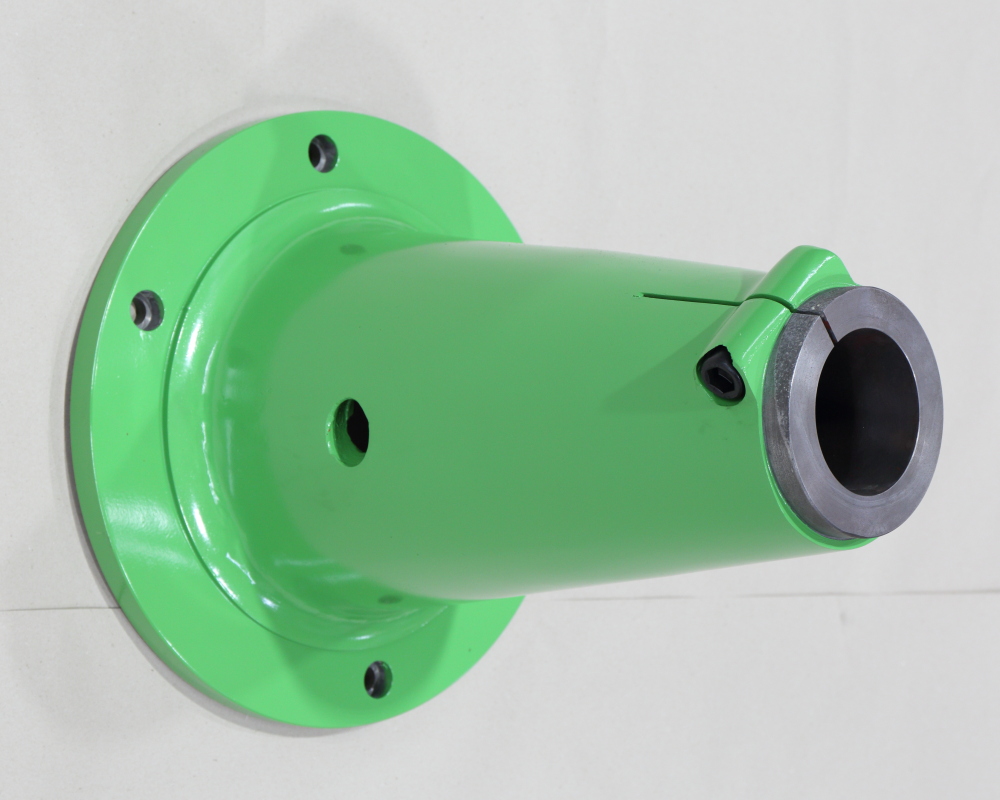

spindle clamping support

The SP100-500 spindle clamping support considerably increases the rigidity of the workspindle bearing. Thus, with a fixed spindle stroke in the W axis of over 500 mm, the machining parameters can be considerably raised, while the spindle speed range is reduced.

The spindle clamping support is mounted on the front side of the installed facing head of the machine manually.

MAIN PARAMETERS

Distance between clamping support front and steady rest front 500mm
Max. permissible workspindle speed224rpm
Total clamping support weight70kg
