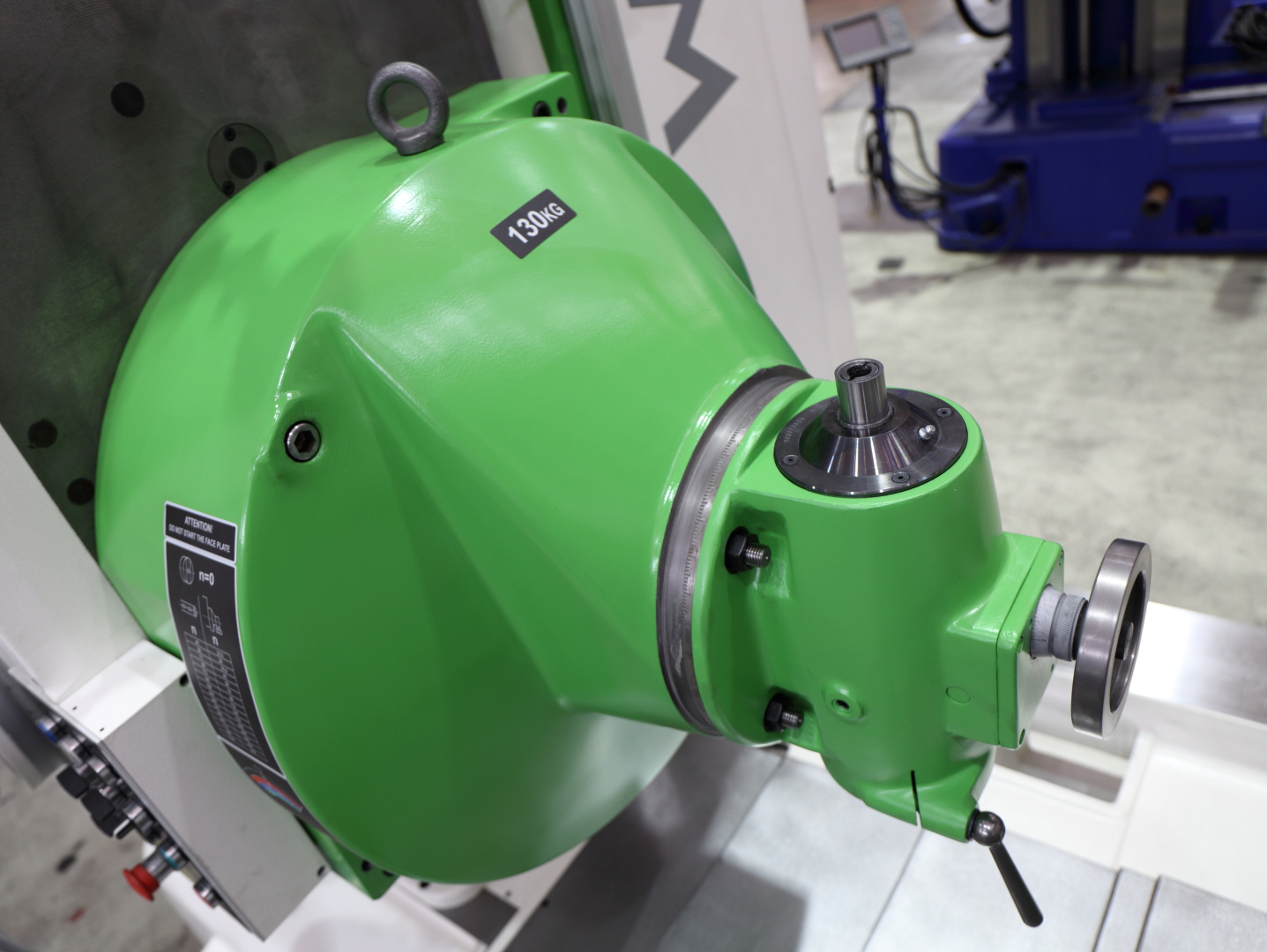

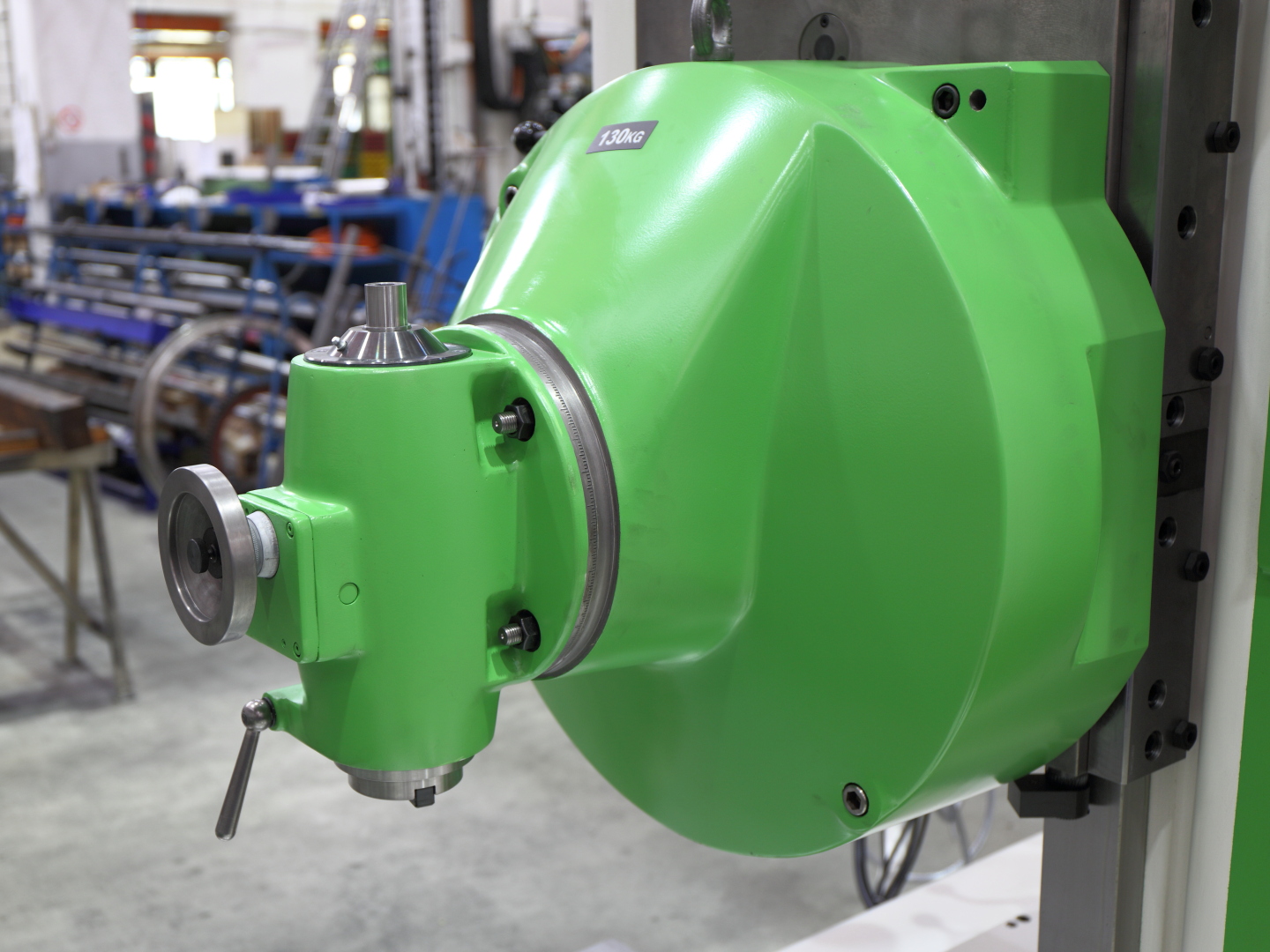

The FP40-100 milling head can be used to mill in the basic and inclined planes parallel to the workspindle axis, or to bore in the basic planes rectangular to the workspindle axis.

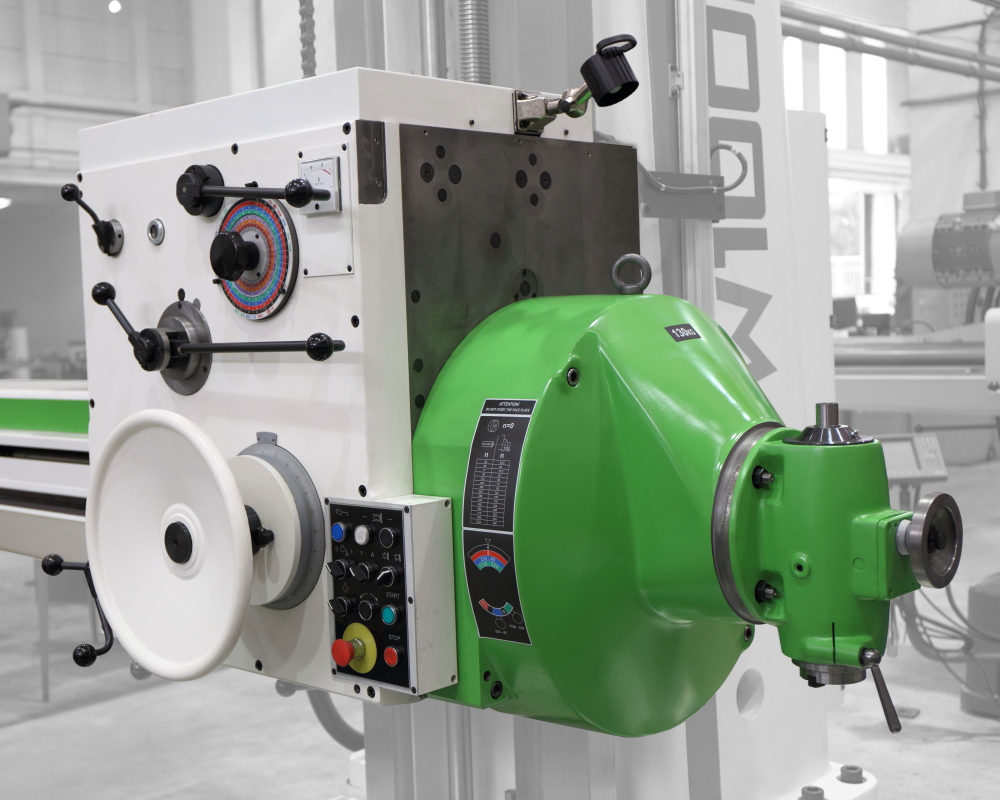

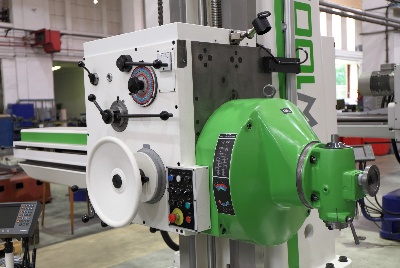

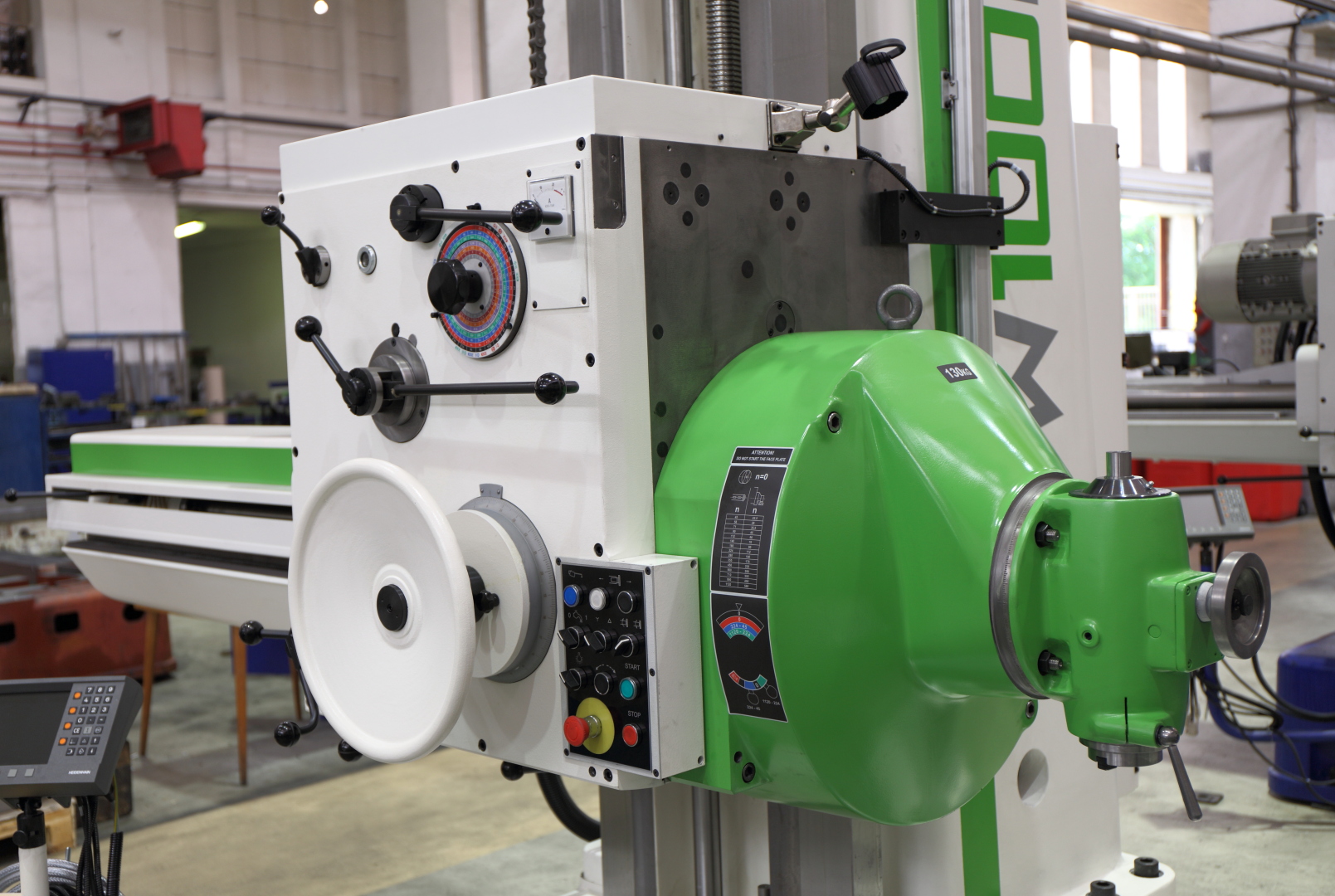

The milling head is mounted on the front side of the head stock manually.
The milling head is positioned manually.
Main Parameters
| Clamping taper | 40 | ISO |
| Tool shank | 2080 | DIN |

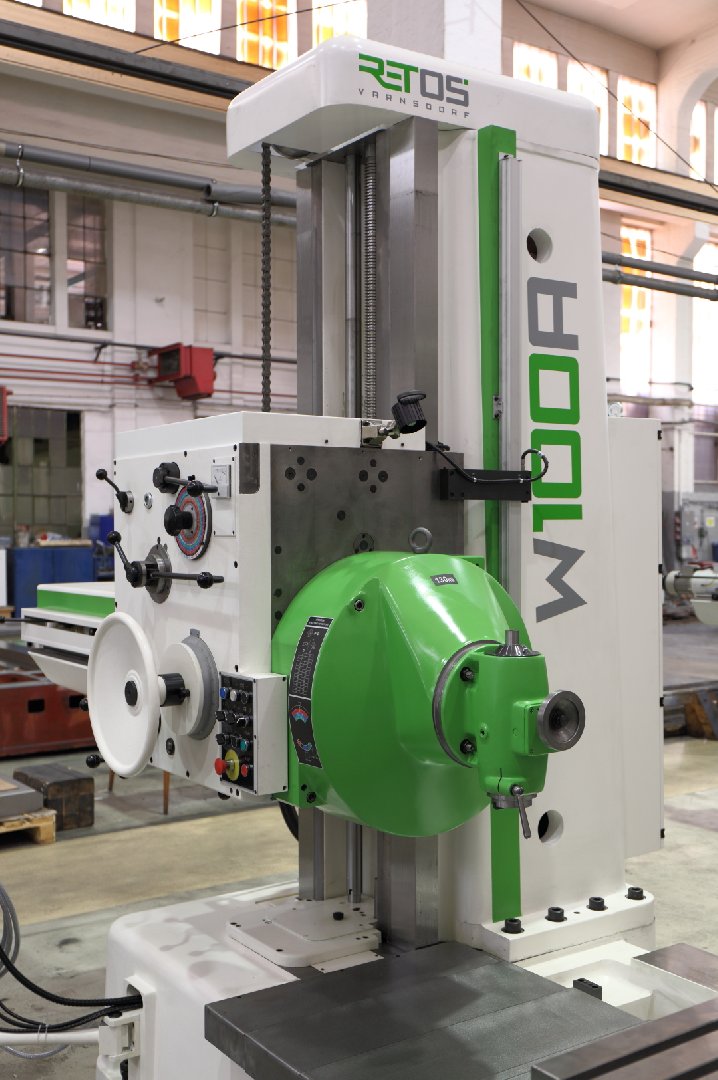

| Max. speed (achievable on the W100A machine) | 560 | rpm |
| Max. permissible transmitted power | 5 | kW |
| Max. permissible torque on the spindle | 250 | Nm |
| Speed transmission from machine spindle to milling head spindle | 2:1 | |
| Milling head spindle stroke | 40 | mm |
| Rotatability of the rotatable milling head parts | 360 | deg |
| Total milling head weight | 200 | kg |
