Horizontal boring mills

RET10X, 2016

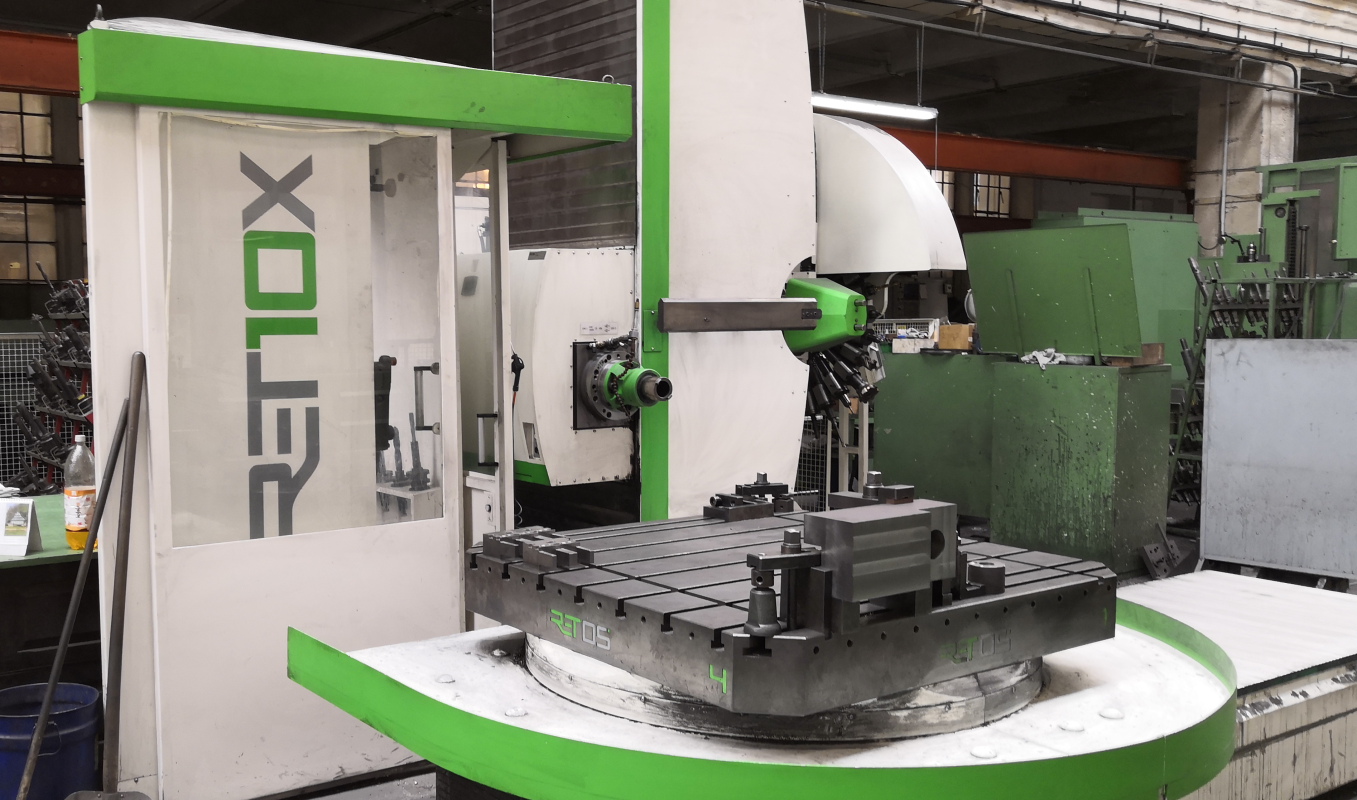

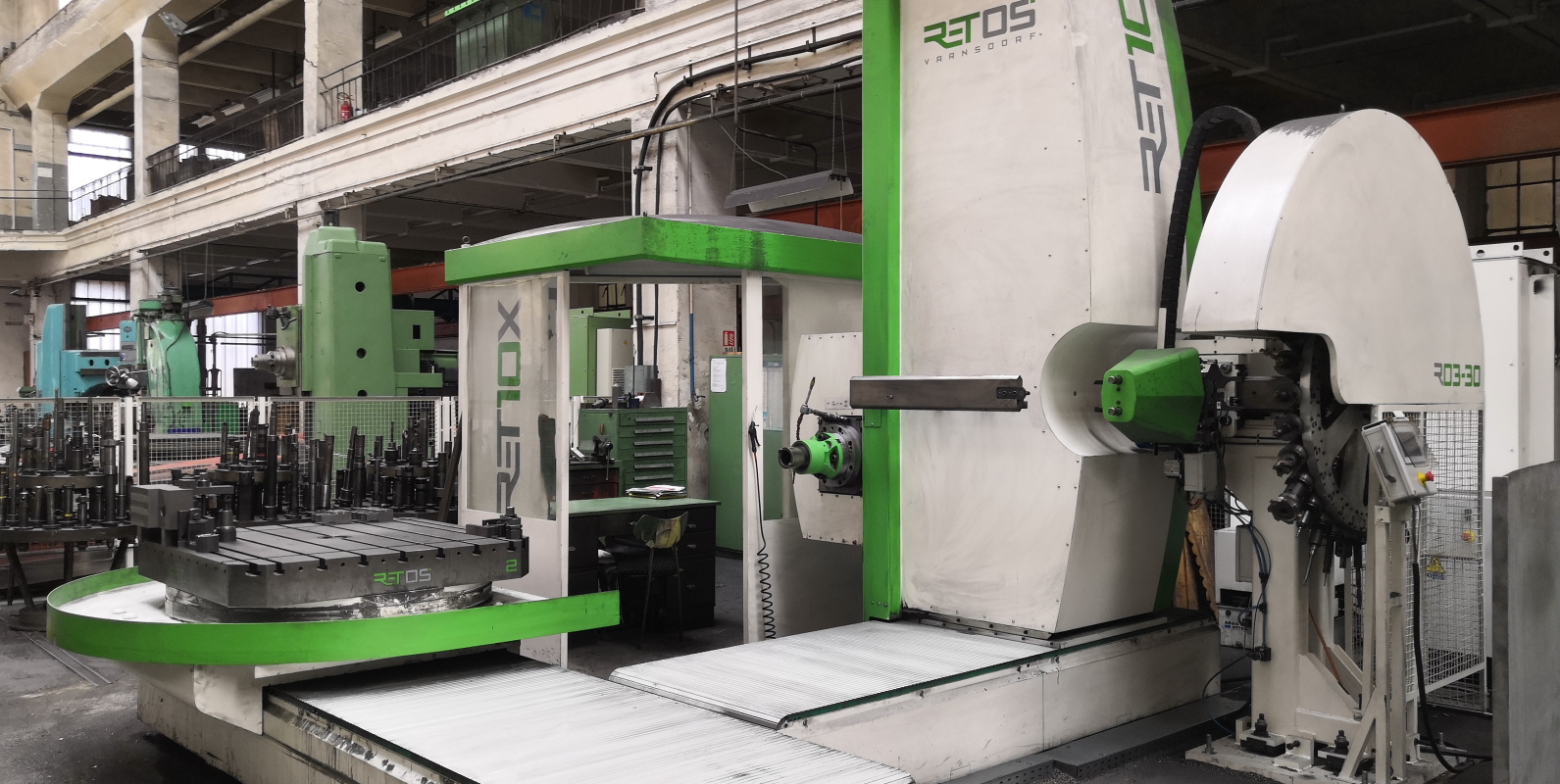

■  T-TYPE HORIZONTAL BORING MILL

■  PRODUCER: RETOS VARNSDORF

■  PRODUCTION YEAR: 2016

■  CONDITION: USED, EXCELENT

■  WARRANTY: YES

■  ON STOCK IN RETOS

SPECIFICATION

■  HEIDENHAIN iTNC530 control system + handwheel

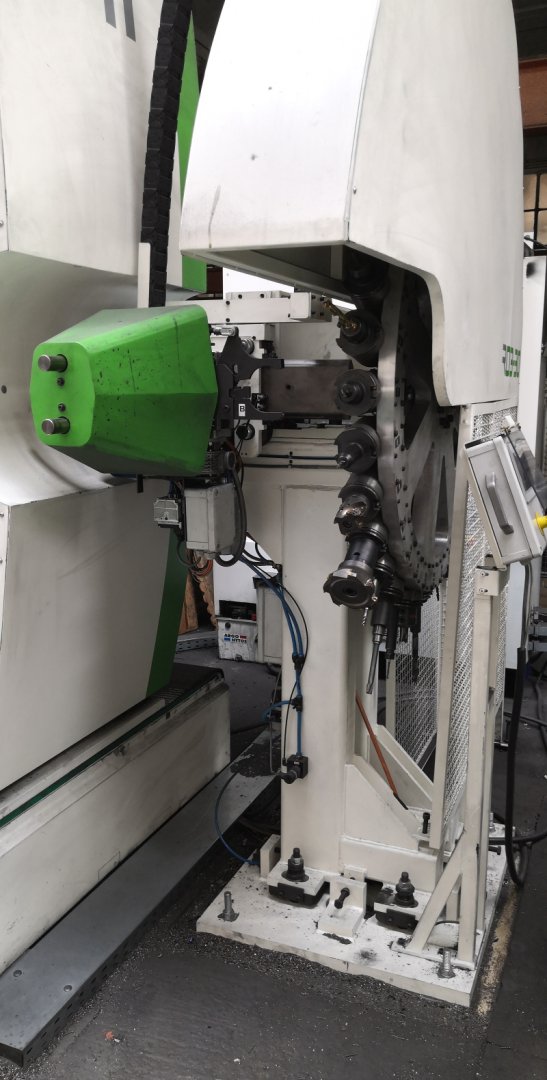

■  ATC R03-30 automatic toolchanger

■  CHZ-V – tool cooling – air

■  table (B-axis) with master/slave drive - interpolation

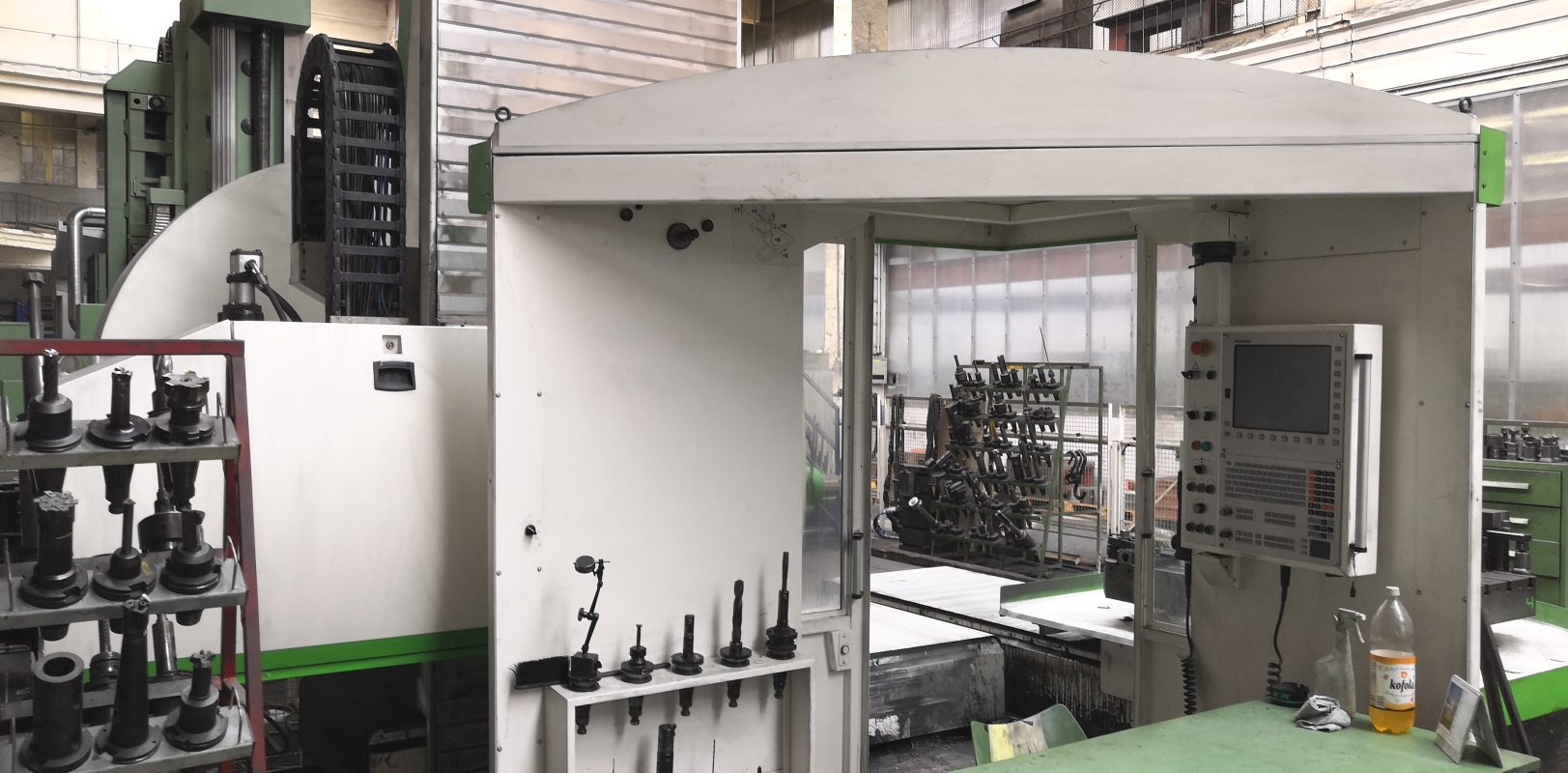

■  operator housing

Parameters

Ram cross section 315 / 360 mm

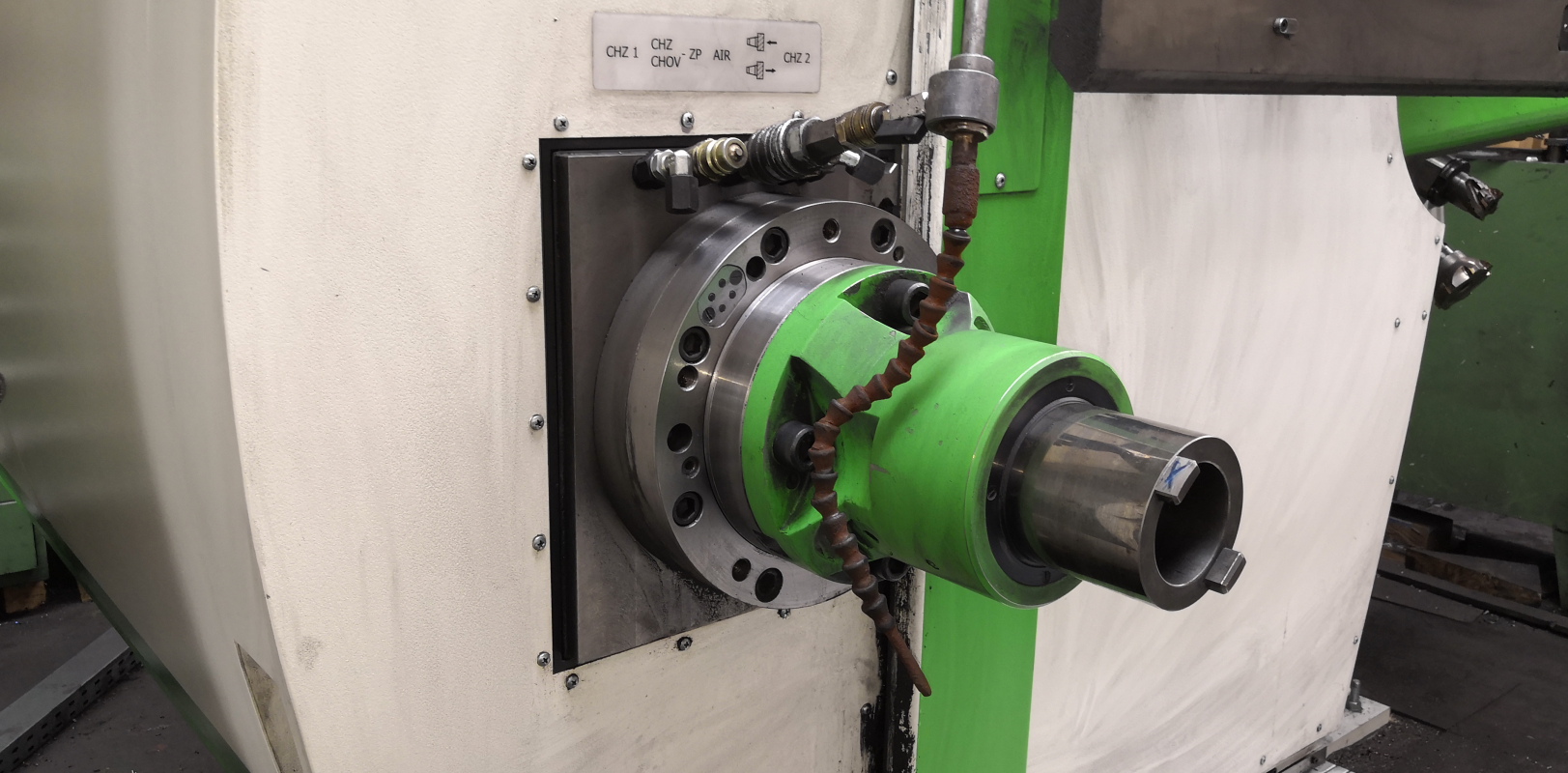

Workspindle diameter 100 mm
Clamping taper 50 ISO
Spindle speed range 3500 rpm
Table transversal travel (X) 2000 mm
Ram/headstock travel (Y) 2000 mm
Column longitudinal travel (Z) 1250 mm
Ram stroke (V) 650 mm
Spindle stroke (W) 610 mm

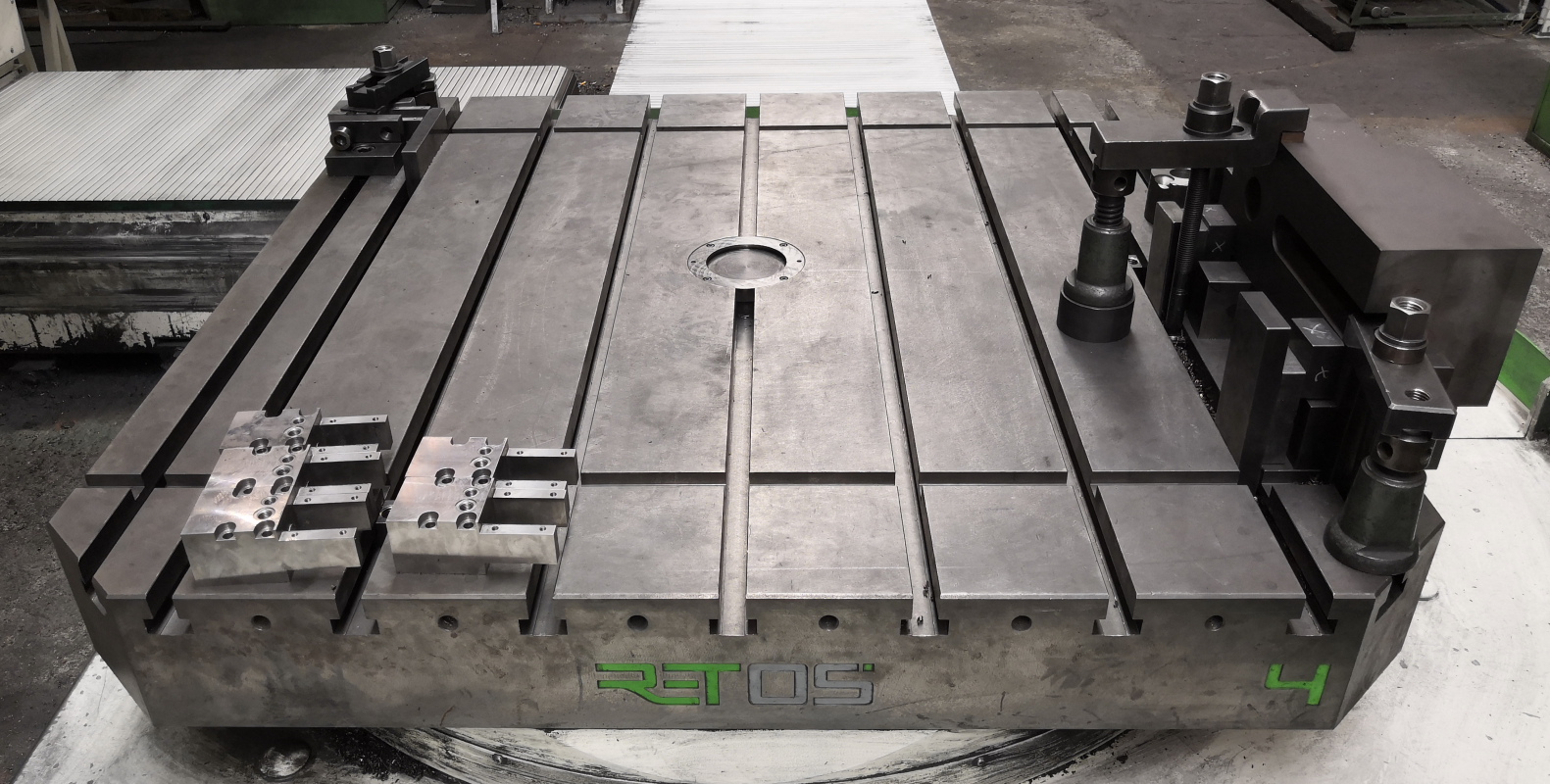

Table clamping surface 1250 x 1250 mm x mm
Table loading capacity 8000 kg
