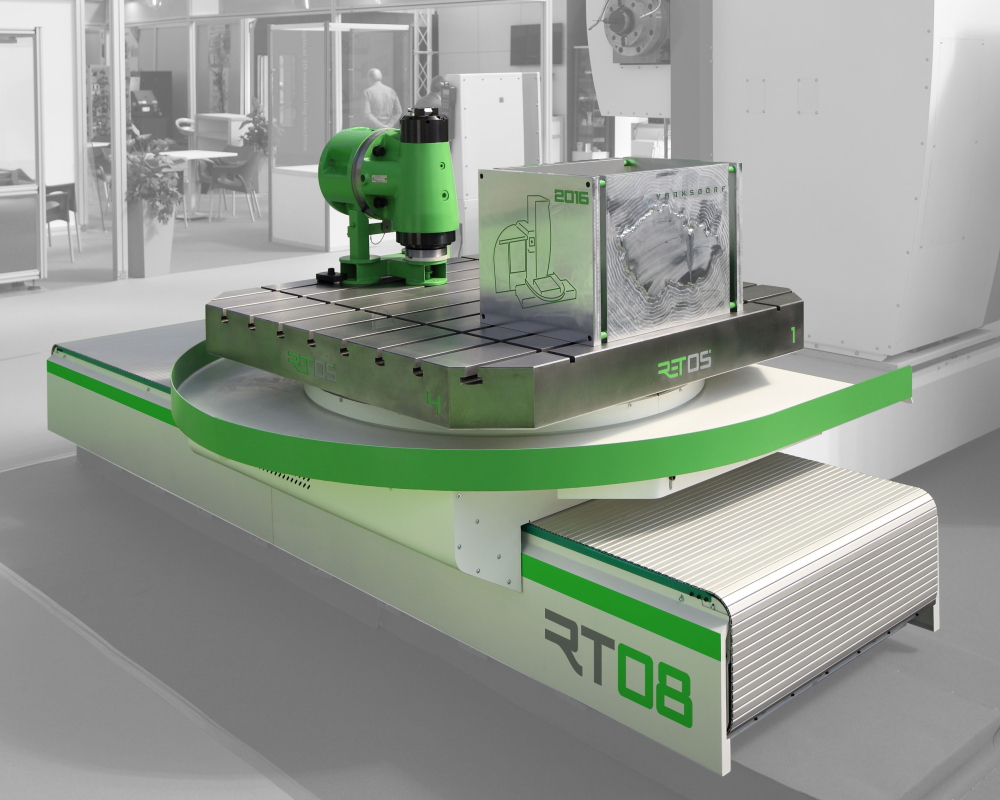

The NC/CNC rotary table of the original construction is designed as an accessories for the RET10P machine or other machine tools. It is planned to integrate the controlling of the table into the controlling system of the machine.
Basic Information
- contouring rotary table
- 1 linear axis + rotary table (NC positioning or CNC interpolation)
- designed as an accessories of the technological sites mainly of the floor type horizontal boring mills
- optimized for RET10P machine
- serves for clamping and positioning of the workpieces as option or complement of the clamping plate
- enlarges the technological capabilities of the machine
- it is a separate unit and it is not fixed to the machine
- it is electrically, on the level of the control system and electrocabinet, fully integrated into the configuration of the machine
Main Parameters
| Table loading capacity | 8000 | kg |
| Table clamping surface | 1250 x 1250 | mm x mm |
| 1500 x 1500 | mm x mm | |
| diameter 1300 | mm | |
| Width of T-slots | 22 H8 | mm |
| Centering hole diameter | 100 H7 | mm |
| V…longitudinal travel of table | 1000, 1250, 1500, 1750, 2000 | mm |
| Feeds…V – manual mode | 4 - 500 | mm / min |
| Feeds…V – automatic mode | 4 - 10000 | mm / min |
| Rapid traverse...V | 20000 | mm / min |
| Feeds of table rotation…B | ** 0 - 16 | rpm |
| Rapid traverse of table rotation…B | 21 | rpm |
| ** increase in speed possible if torque is reduced | ||
| Table weight | 3600 - 4200 | kg |
| Basic dimensions – length | 2670, 2920, 3170, 3420, 3670 | mm |
| Basic dimensions – width | 1250 / 1500 | mm |
| Basic dimensions – height | 900 | mm |
