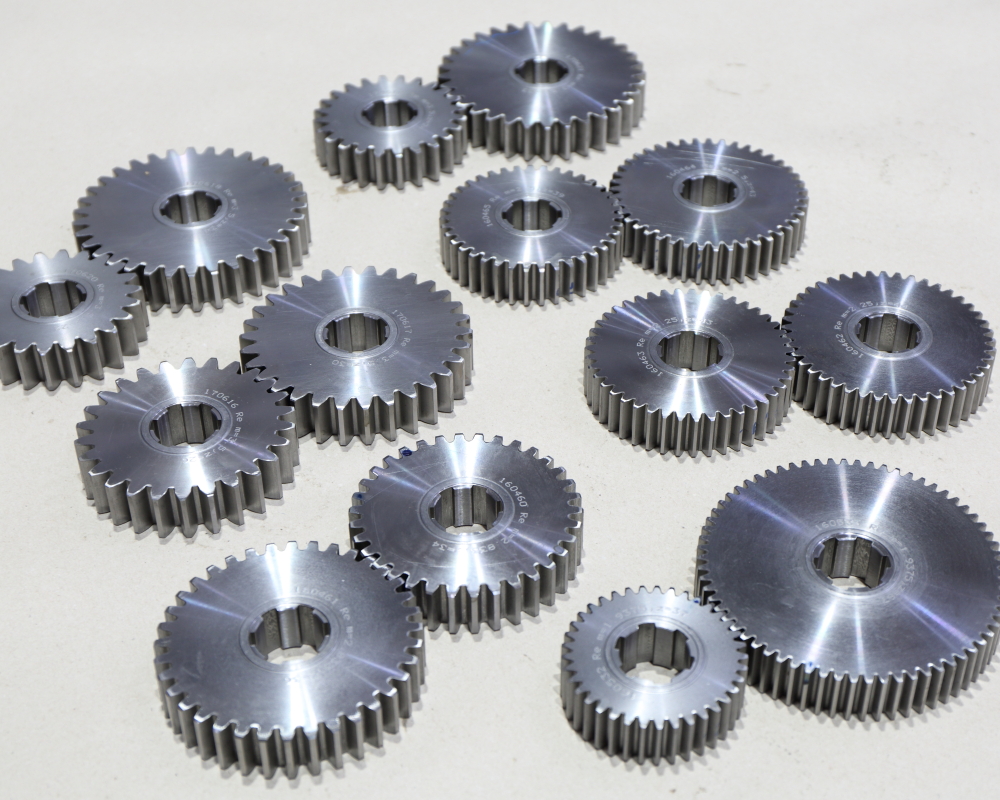

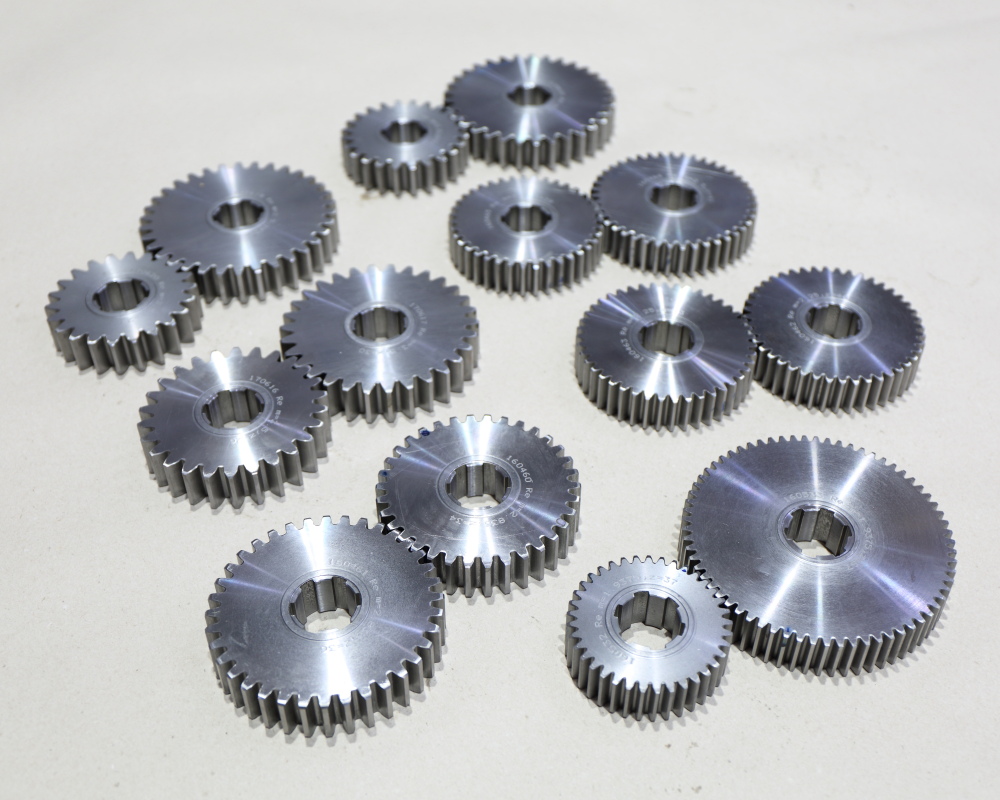

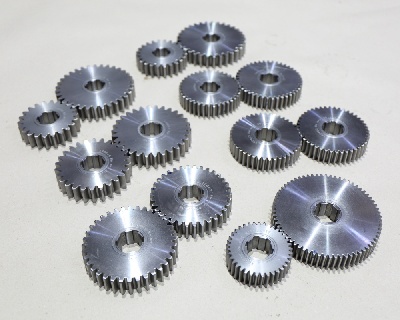

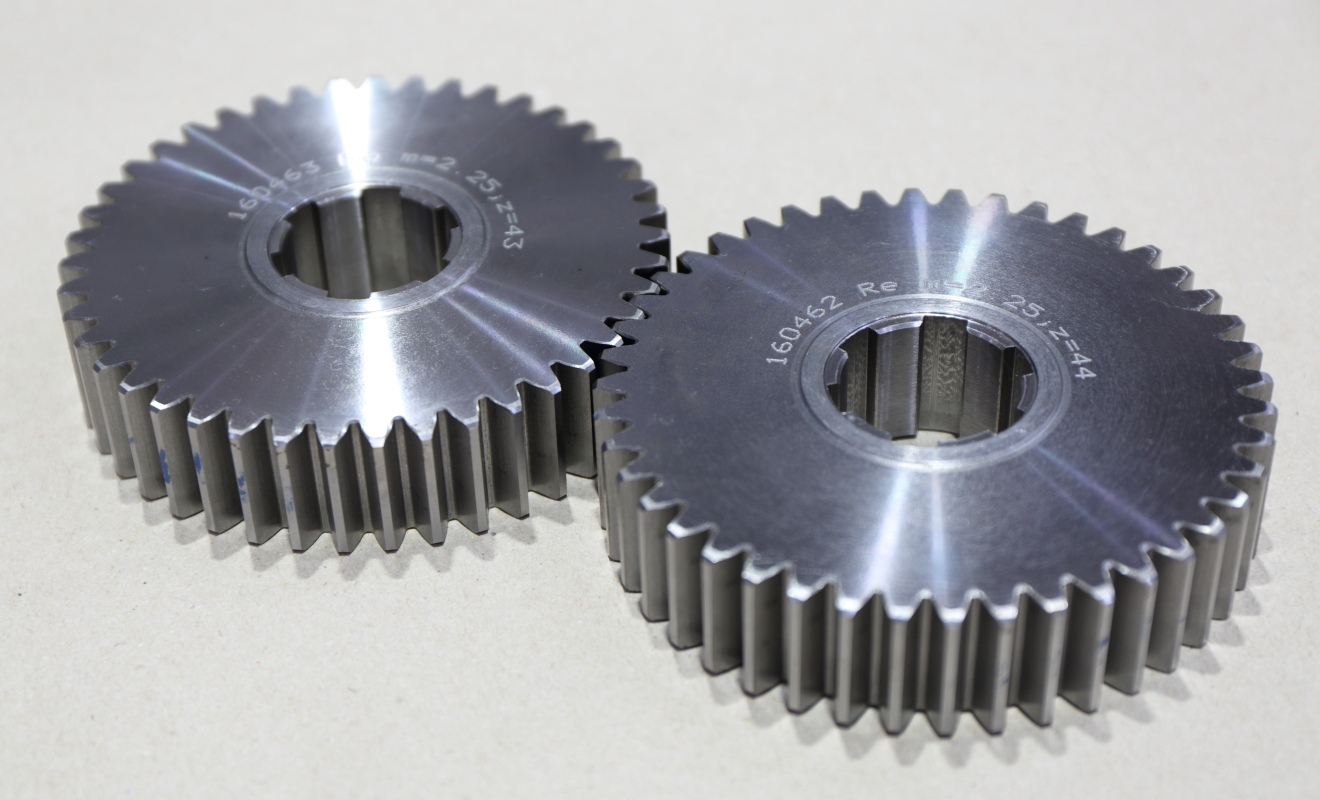

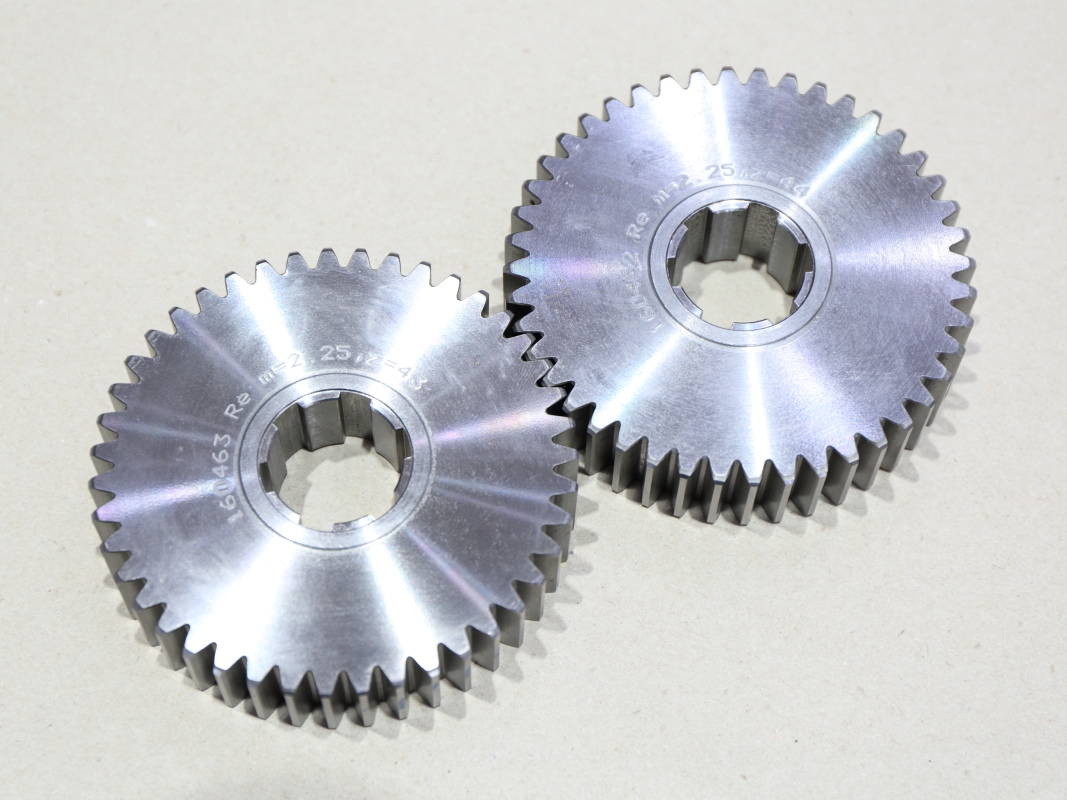

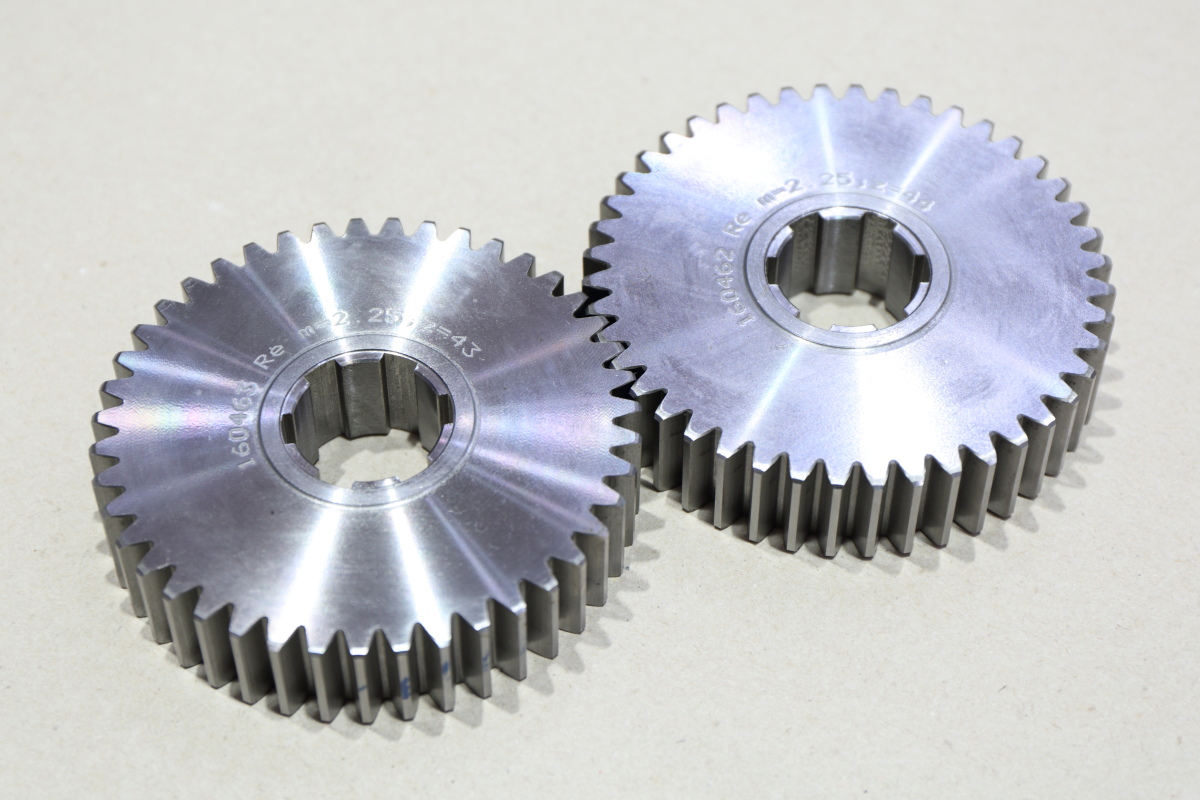

The RZ100 gear kit enables you to cut further 47 metric and Whitworth inch threads, which cannot be cut using the machine's standard kinematics (18 basic gears) for shifting the machine's thread feeds.
The gears are changed manually.
Main Parameters
STANDARD | RZ100 | ||||||
28 : 33 | 30 : 26 | 36 : 34 | 43 : 44 | 39 : 43 | 24 : 34 | 22 : 33 | 37 : 67 |
21/2 | 2 | ||||||
3 | |||||||
33/4 | 23/4 | 3 | 31/4 | 31/2 | 41/2 | 43/4 | 53/4 |
5 | 4 | ||||||
6 | |||||||
71/2 | 51/2 | 6 | 61/2 | 7 | 9 | 91/2 | 111/2 |
10 | 8 | ||||||
12 | |||||||
15 | 11 | 12 | 13 | 14 | 18 | 19 | 23 |
20 | 16 | ||||||
24 | |||||||
30 | 22 | 24 | 26 | 28 | 36 | 38 | 46 |
40 | 32 | ||||||
48 | |||||||
60 | 44 | 48 | 52 | 56 | 72 | 76 | 92 |
80 | |||||||
96 | |||||||
120 | 88 | 96 | 104 | 112 | 144 | 152 | 184 |
