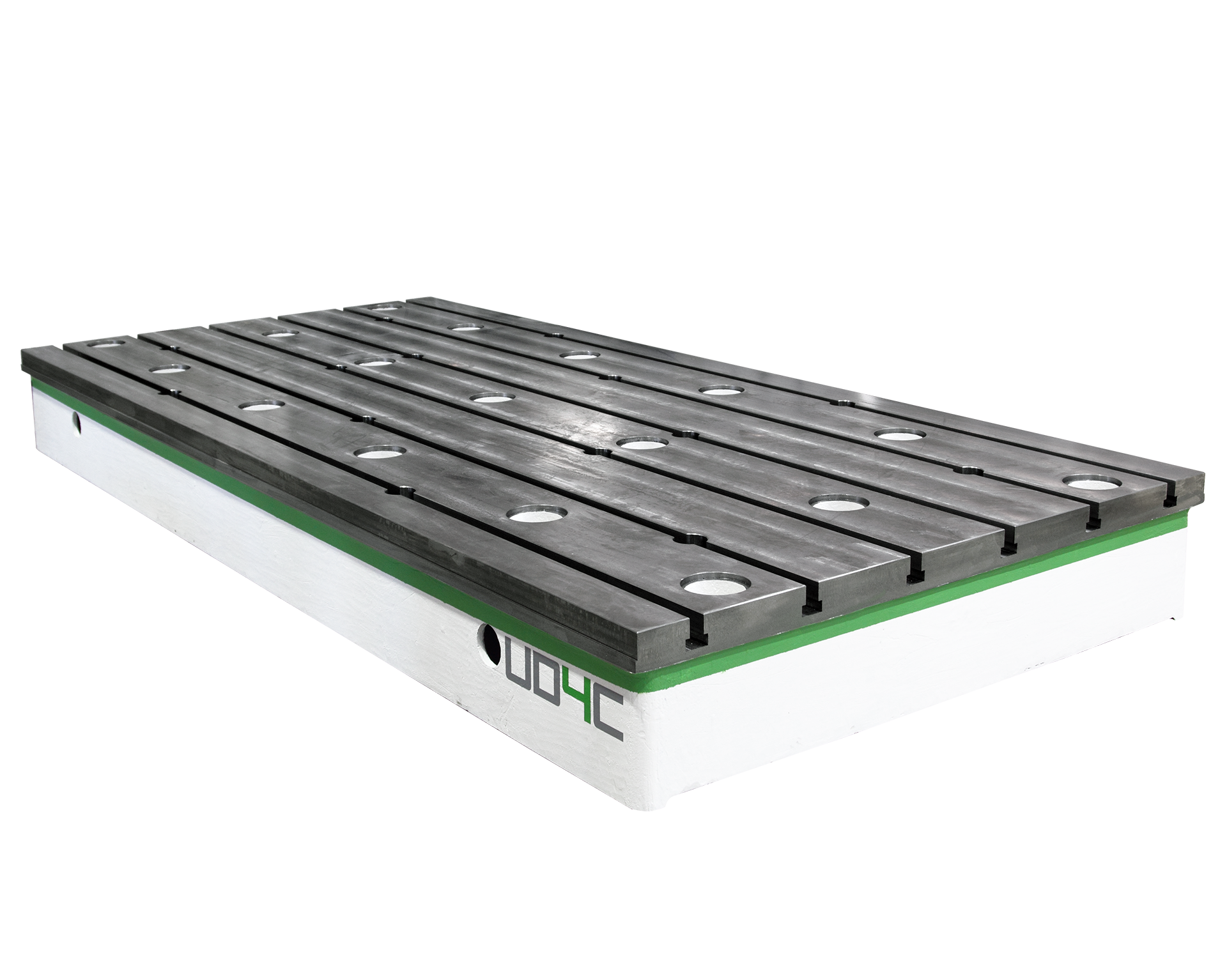

UD4/UDT clamping plates are optional accessories for the RET10P and HP100 floor type horizontal boring and milling machines.
A clamping plate is a device used for workpiece clamping.
You can create large clamping fields by combining several clamping plates. Clamping fields can be created by using clamping plates of the same type only.
Clamping plates or clamping fields enable clamping of extra large and heavy workpieces or further accessories such as clamping tables, angle plates, cubes, devices etc.
The clamping plate is solidly anchored in the concrete foundation using anchoring material similarly to the actual machine.
ОСНОВНЫЕ ПАРАМЕТРЫ
| Designation | UD4D | UD4C | UDT | ||||
| Clamping surface length | 2420 | 4020 | 2000 | 3000 | 4000 | 2000 | 3000 |
| Clamping surface width | 1875 | 1875 | 1485 | 1485 | 1485 | 1985 | 1985 |
| Clamping plate width | 1885 | 1885 | 1495 | 1495 | 1495 | 1995 | 1995 |
| Height | 400 | 400 | 300 | 300 | 300 | 300 | 300 |
| Hardness of functional surfaces | 190 ± 20 HB | ||||||
| Loading capacity | 45 t | 80 t | 10 t/m² | 10 t/m² | 10 t/m² | 10 t/m² | 10 t/m² |
| Clamping slot width | 36 H12 | ||||||
| Clamping slot pitch | 315 | 315 | 250 | 250 | 250 | 250 | 250 |
| Clamping slot amount | 6 | 6 | 6 | 6 | 6 | 8 | 8 |
| Weight [kg] | 5000 | 8200 | 2700 | 3950 | 5350 | 3500 | 5000 |
