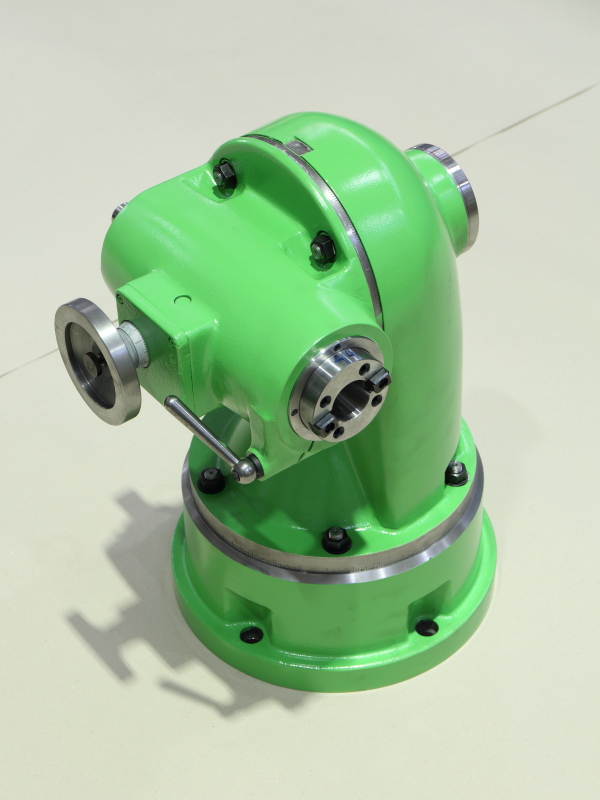

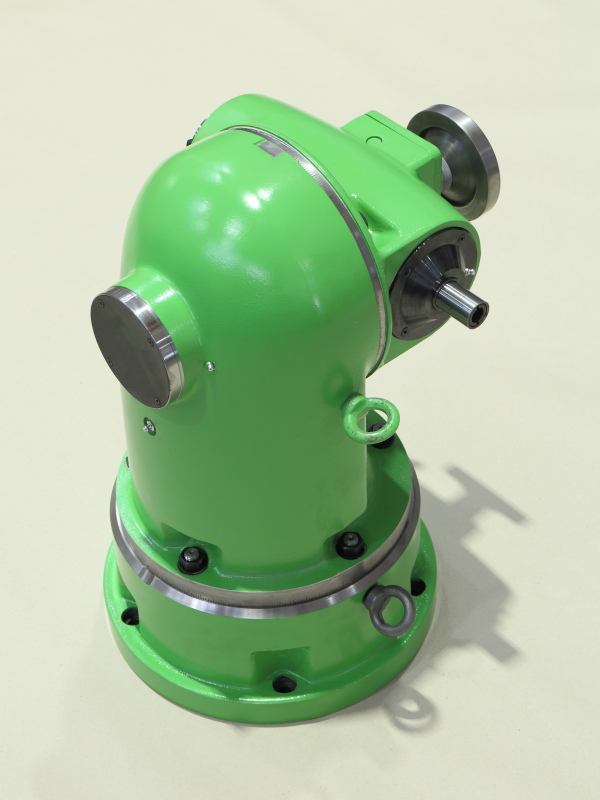

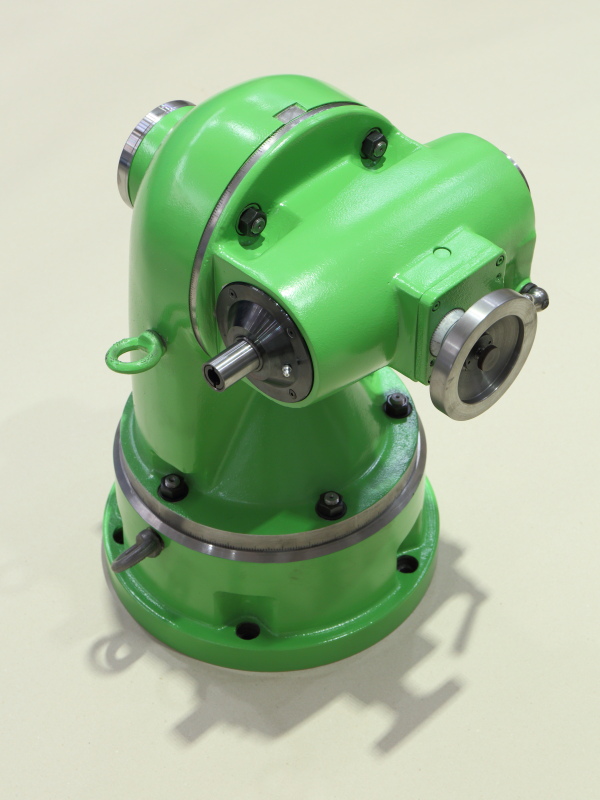

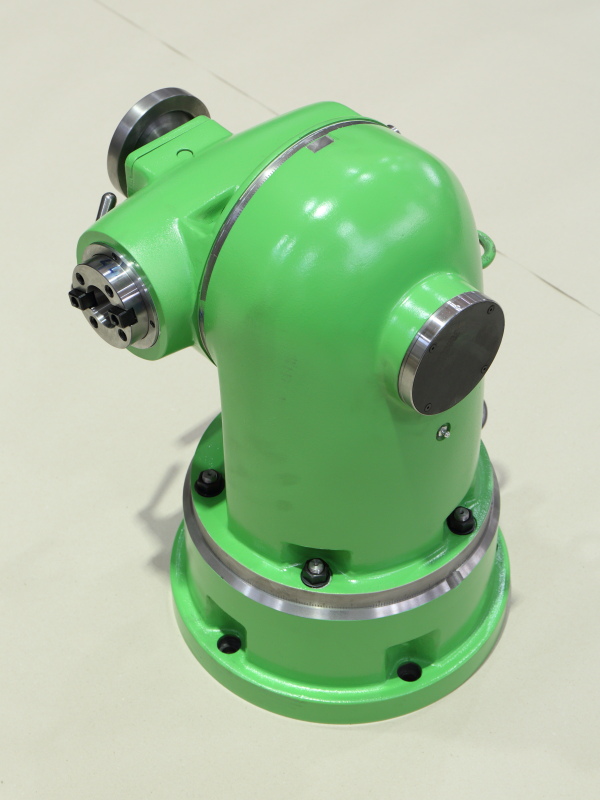

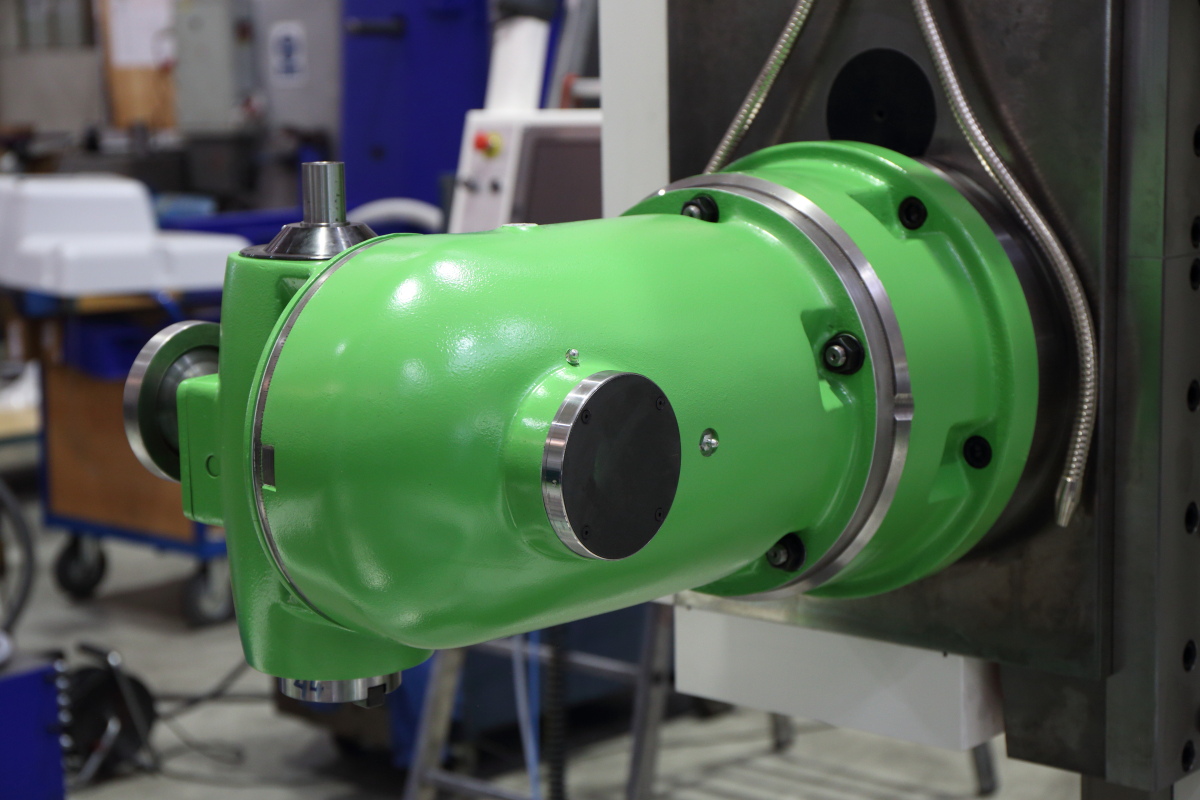

The UFP40-10 universal milling head can be used to mill and bore in inclined planes.

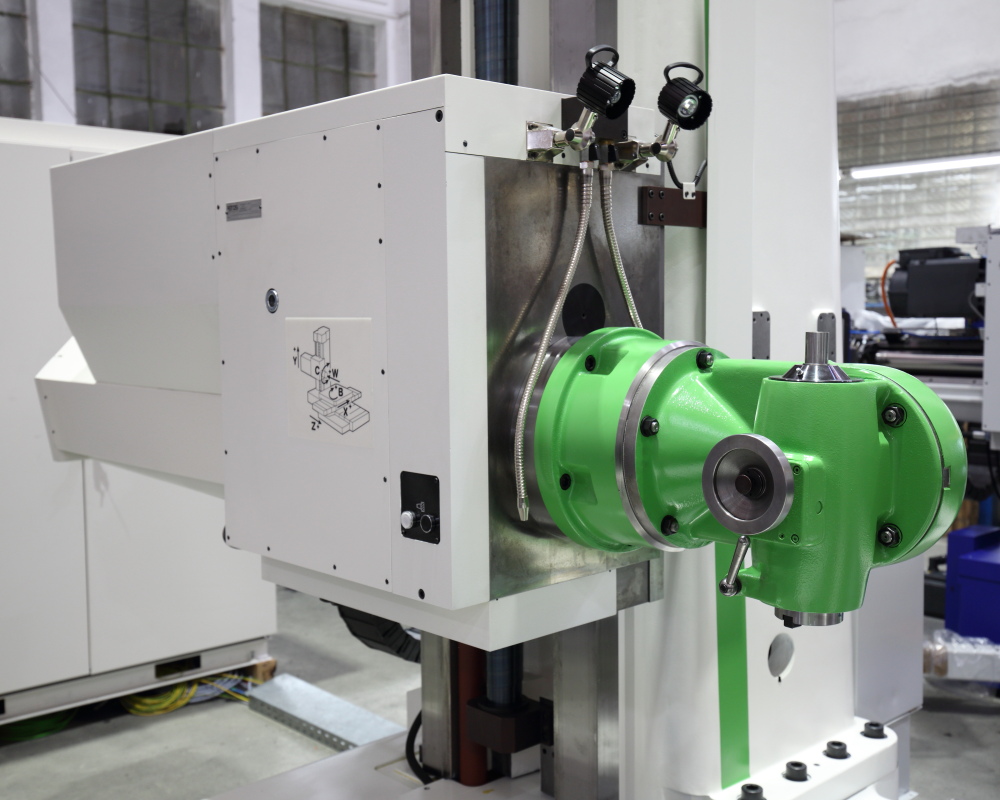

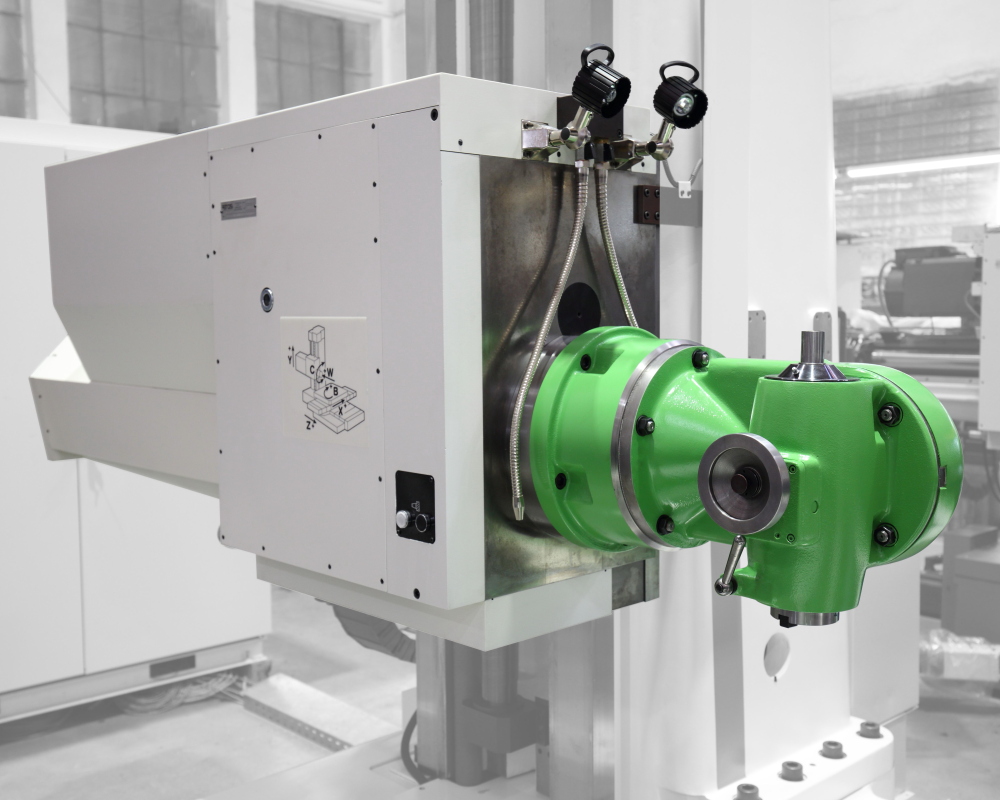

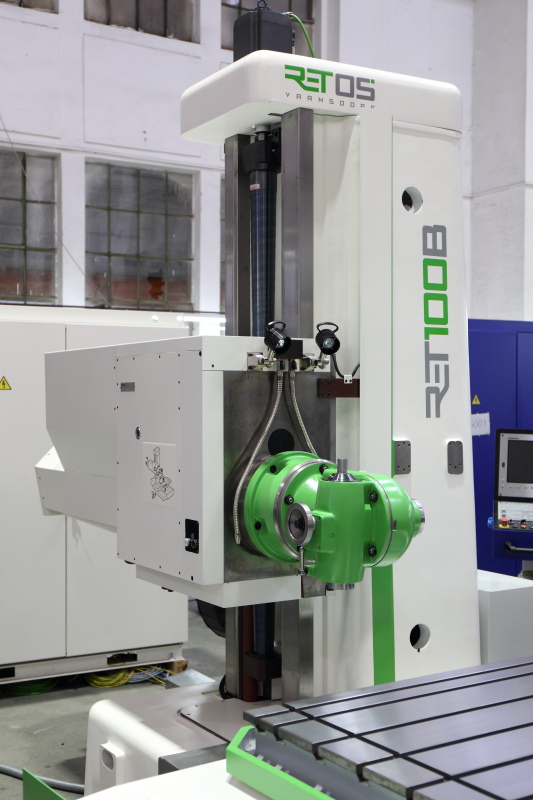

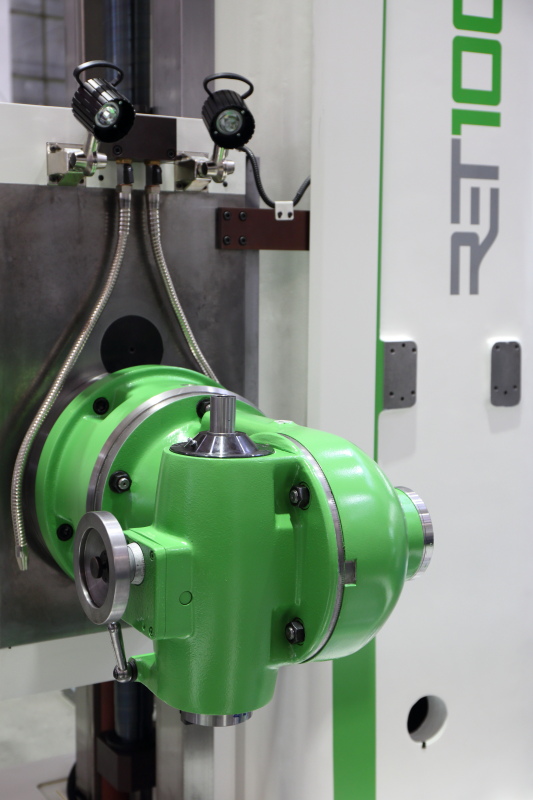

The milling head is mounted on the front side of the head stock (centering diameter of spindle bearing bushing) manually.
The milling head is positioned manually.
Main Parameters
Clamping taper | 40 | ISO |
Tool shank | 2080 | DIN |

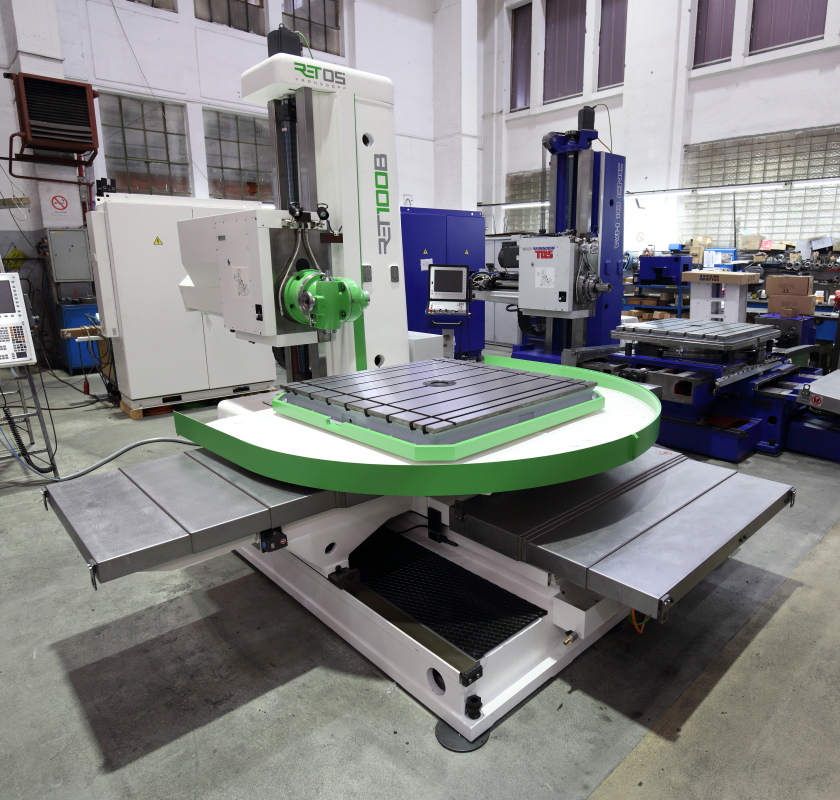

Max. speed (achievable on the RET10X, RET10P, RET100B) | 900 | rpm |
Max. permissible transmitted power | 10 | kW |
Max. permissible torque on the spindle | 250 | Nm |
Speed transmission from machine spindle to milling head spindle | 2:01 | |
Milling head spindle stroke | 40 | mm |
Rotatability of the rotatable milling head parts in the C axis | 360 | deg |
Rotatability of the rotatable milling head parts in the A axis | -0,166666667 | deg |
Total weight | 130 | kg |
