Horizontal boring mills


universal milling head

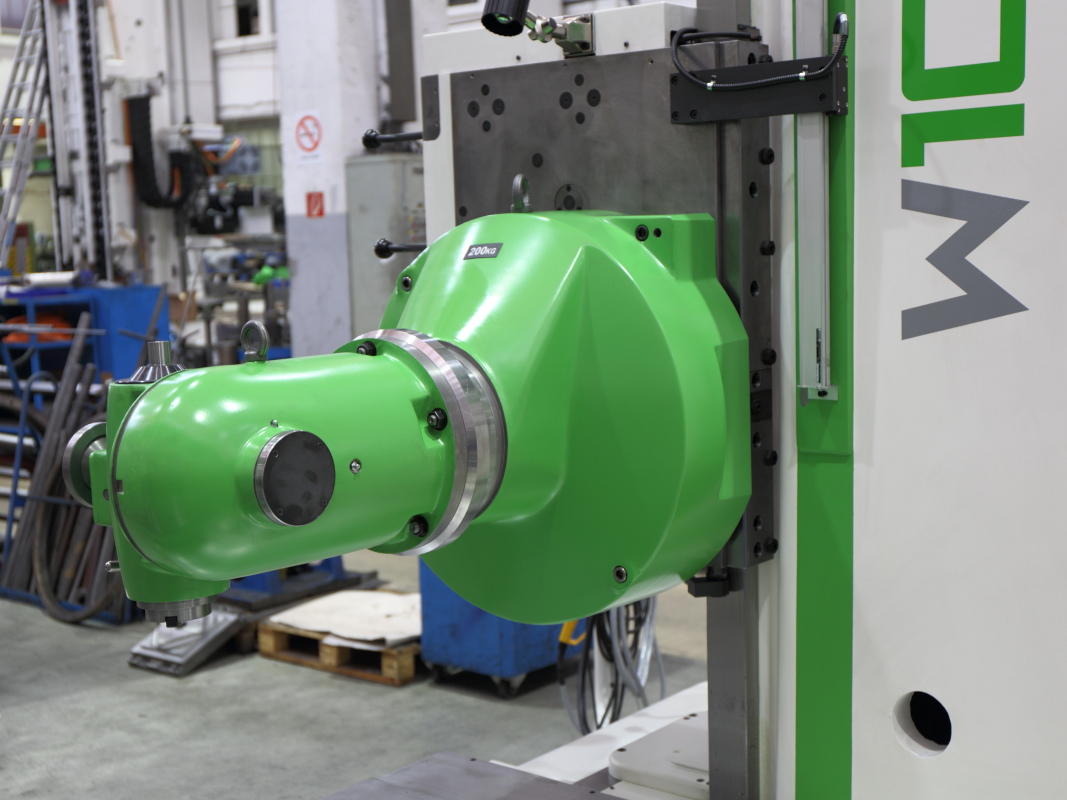

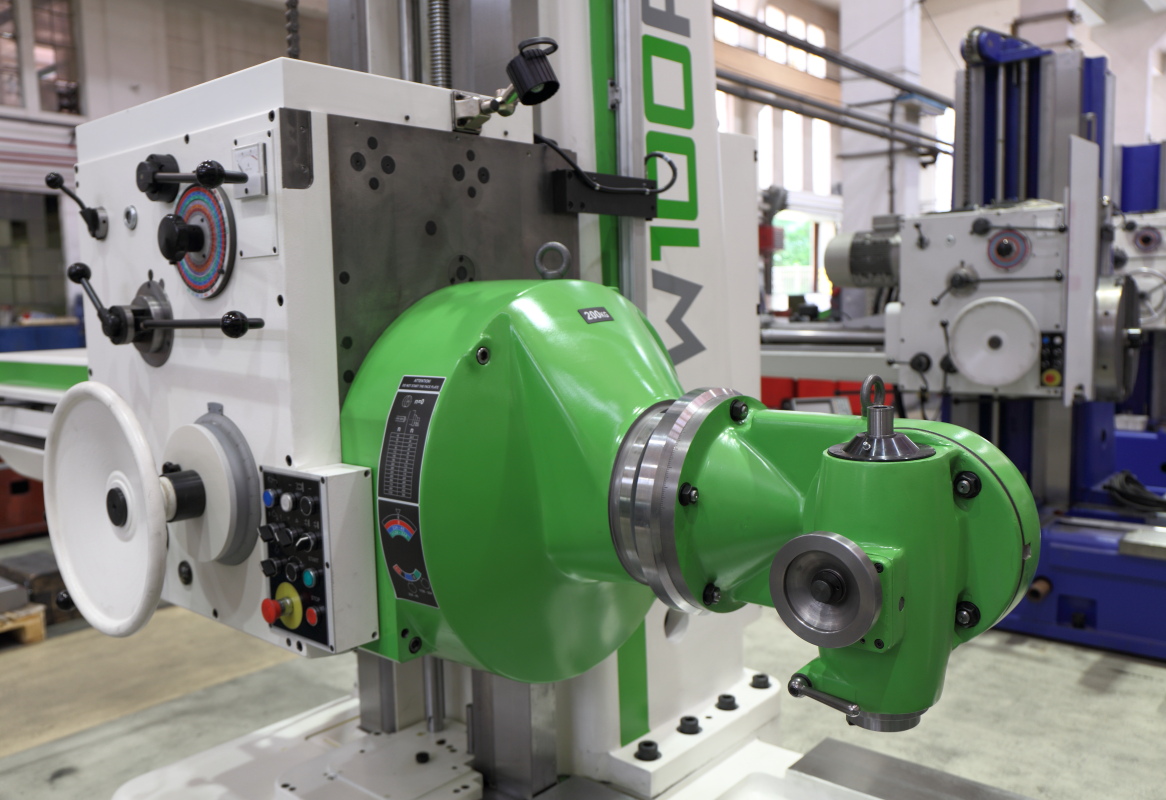

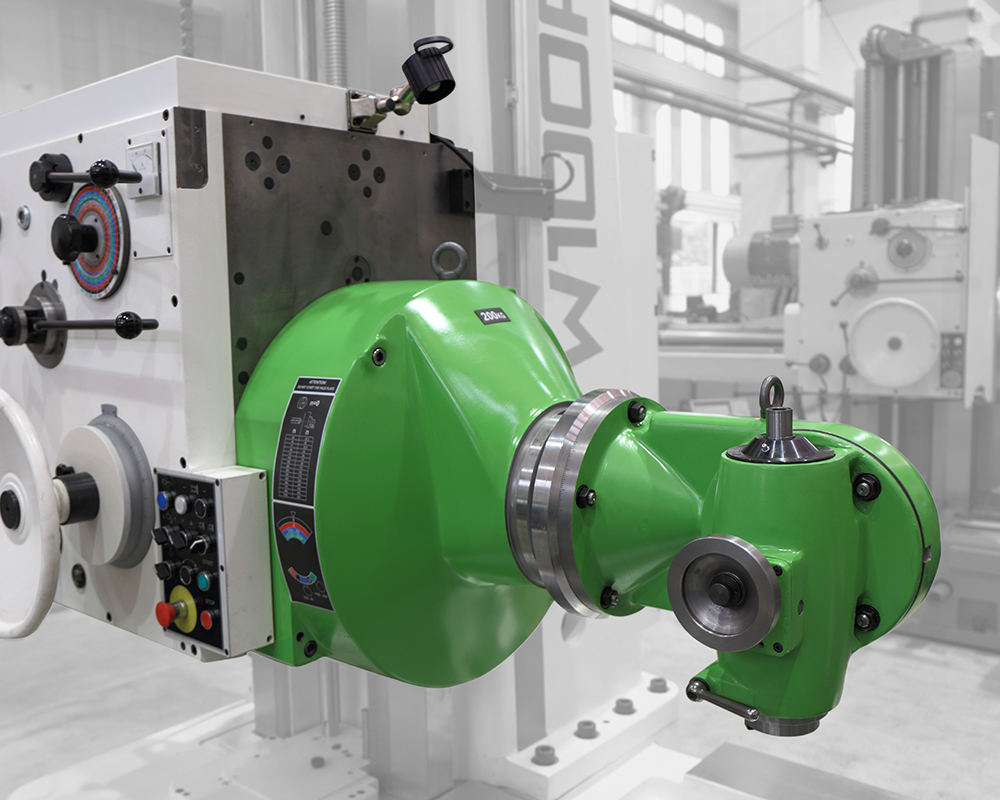

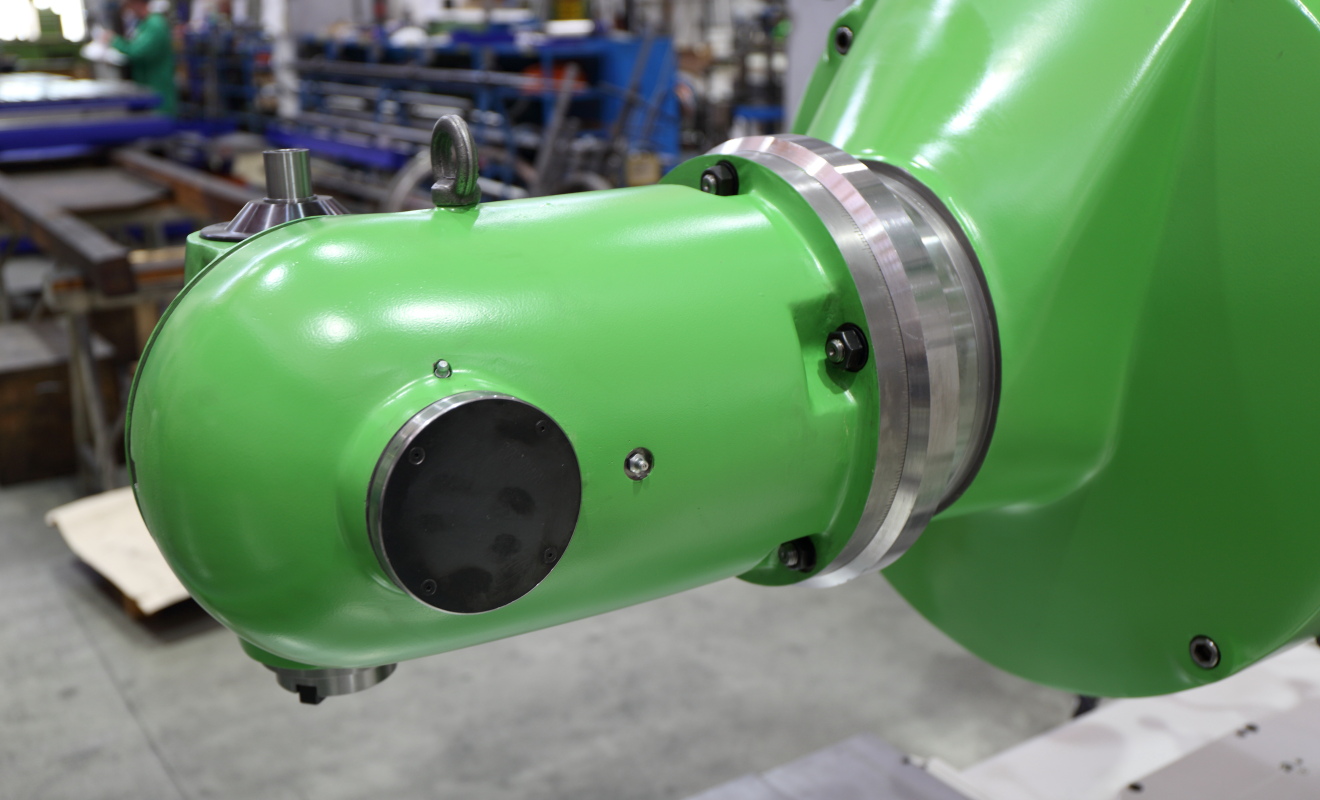

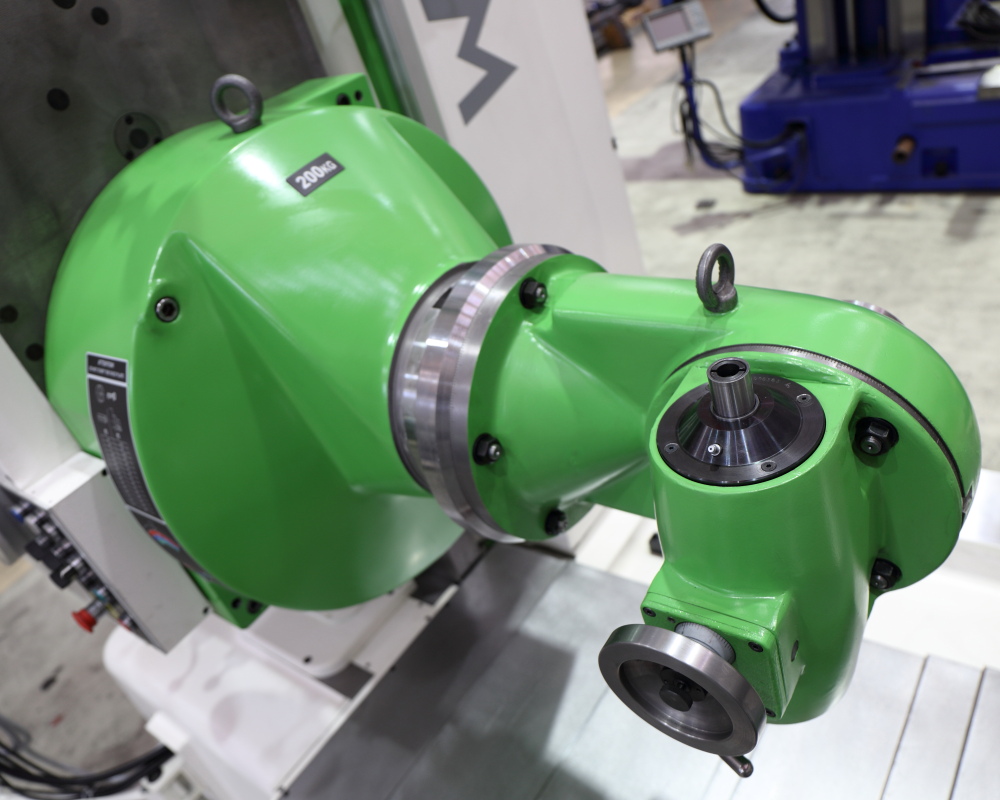

The UFP40-100 universal milling head can be used to mill in various inclined planes parallel to one of the machine's main axes (X, Y, Z) or to bore in the machine's main axes (X, Y, Z).

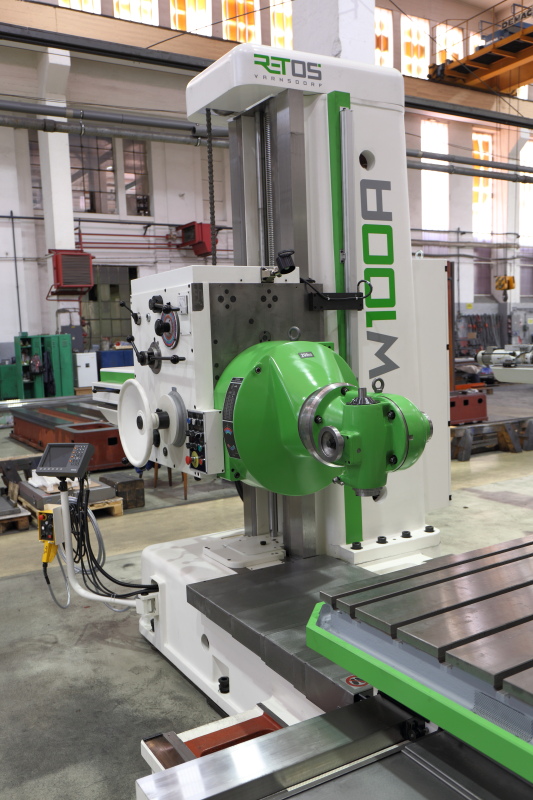

The milling head is mounted on the front side of the head stock manually.

The milling head is positioned manually.

Main Parameters

Clamping taper 40 ISO
Tool shank 2080 DIN
Max. speed (achievable on the W100A machine) 560 rpm
Max. permissible transmitted power 10 kW
Max. permissible torque on the spindle 250 Nm
Speed transmission from machine spindle to milling head spindle 2:1
Milling head spindle stroke 40 mm
Rotability of the rotable milling head parts in the C axis 360 deg
Rotability of the rotable milling head parts in the A axis -30/+180 deg
Total milling head weight 270 kg
