Horizontal boring mills

UU800-UU3000

Clamping angle plates

Brochure

UU angle plates are optional accessories for horizontal boring and milling machines.

A clamping angle plate is a device used for workpiece clamping.

The clamping is performed on the machine's main clamping surface (table or clamping plate).

UU clamping angle plates are fastened via T-slots and standardized clamping claws manually using lifting devices.

Main Parameters

Designation UU800 UU950 UU1120 UU1450 UU1620 UU2000 UU2500 UU3000
Version illus. 1 illus. 2
Hardness of functional surfaces 190 ± 10 HB
Clamping slot width 22 H12
Clamping slot pitch 160 175
Clamping slot amount 5 6 7 9 9 11 14 17
Thread holes M20
Height 800 950 1120 1450 1620 2000 2500 3050
Clamping surface width 320 500 320 500 700 800 1000 1200
Foot surface width 320 560 320 560
Depth 500 500 600 650 725 1000 1200 1500
Weight [kg] 230 440 400 780 1250 1850 3200 5700

SPECIFICATION

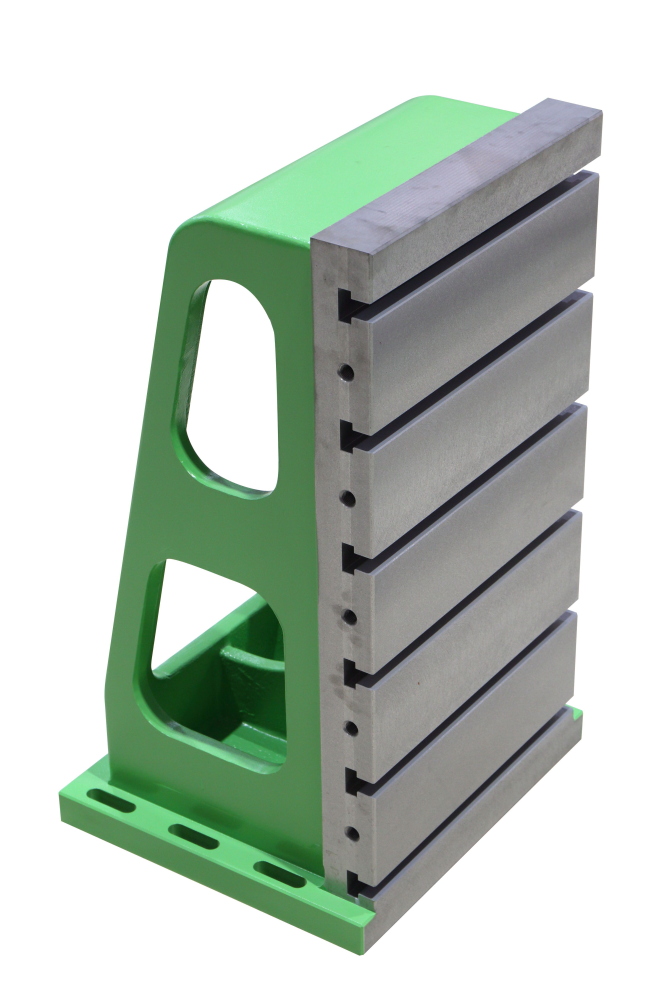

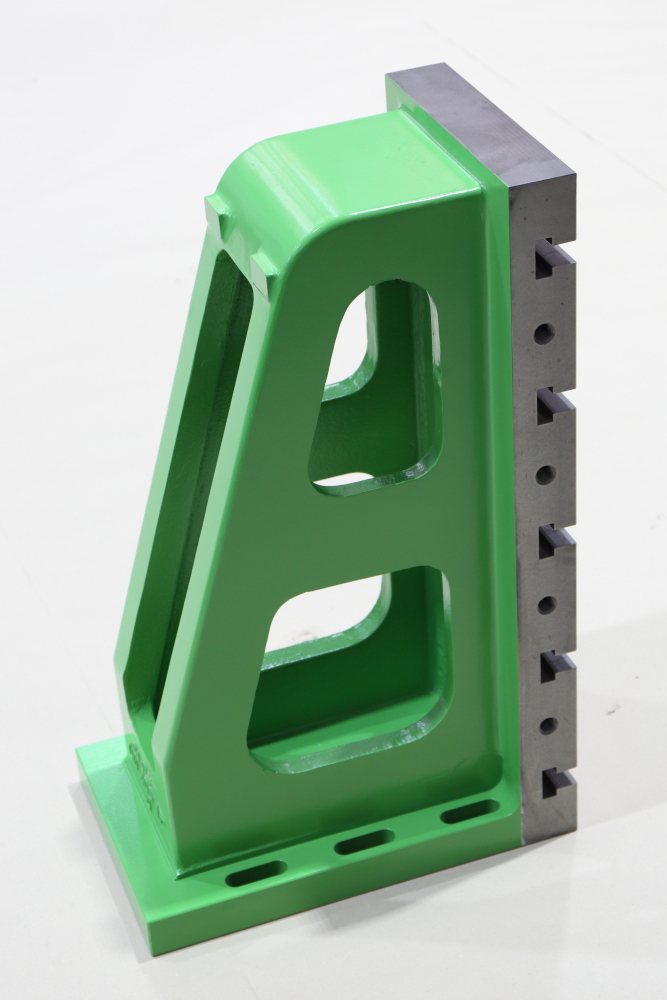

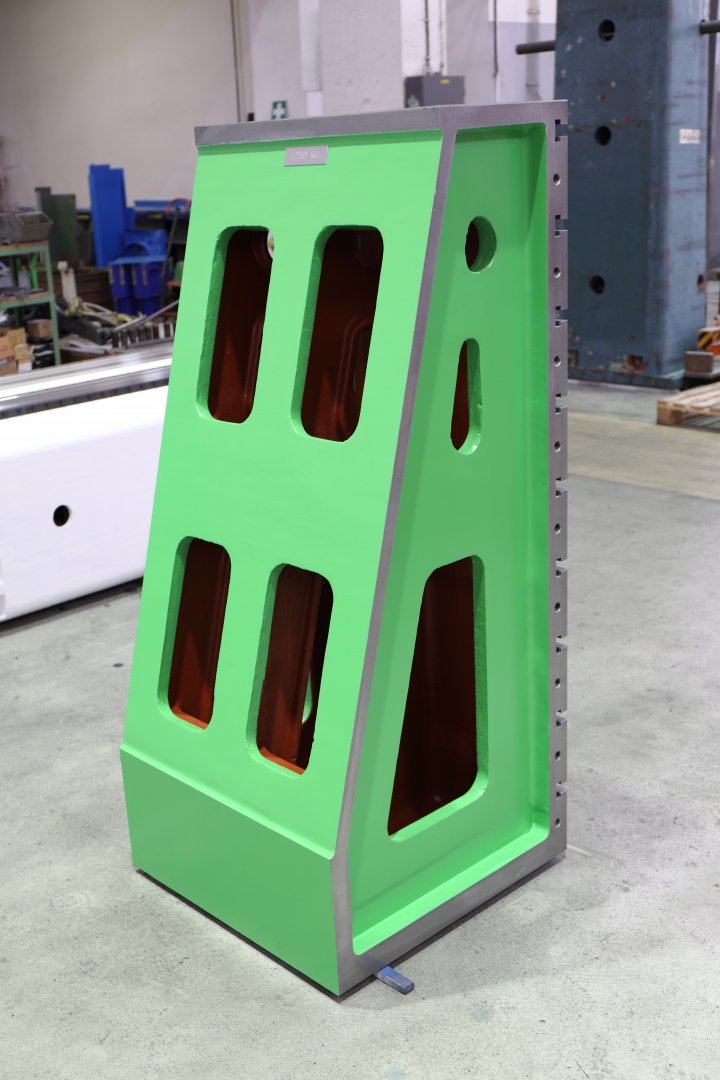

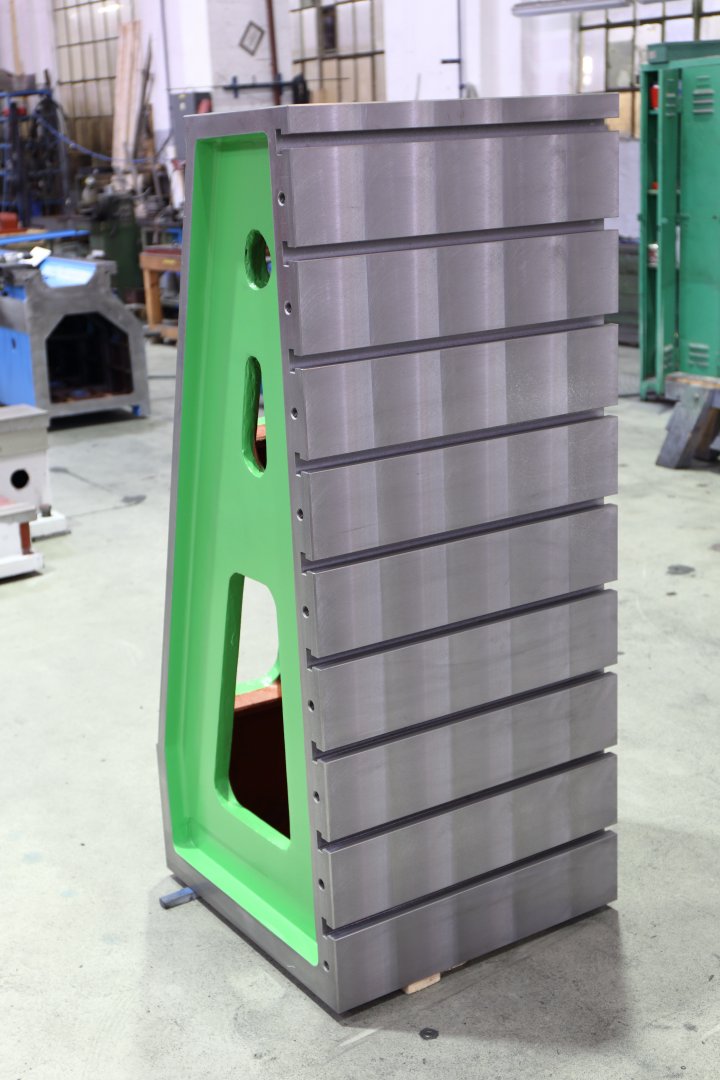

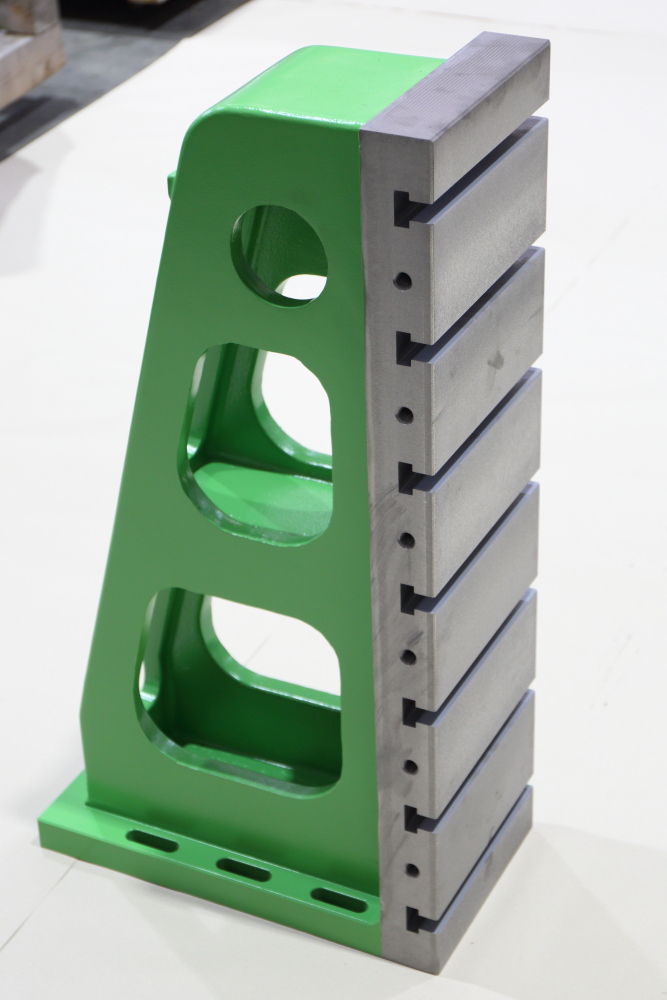

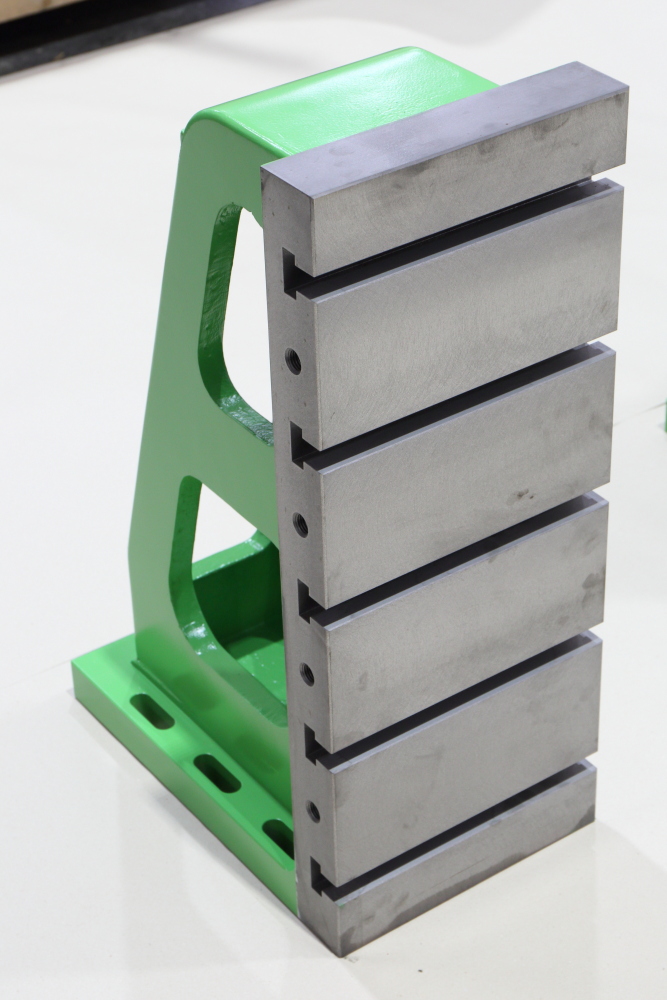

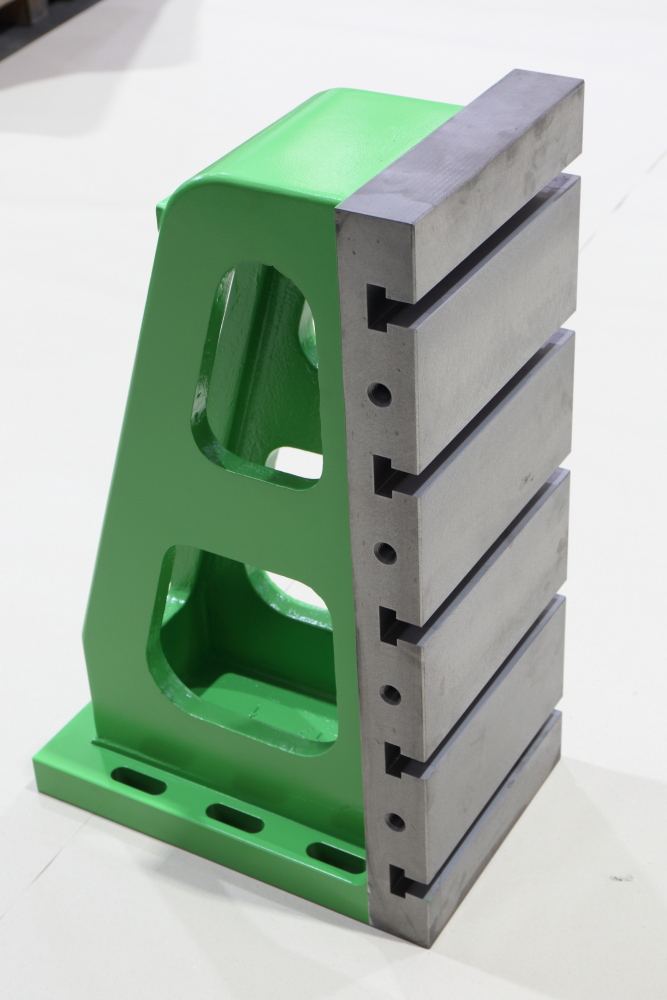

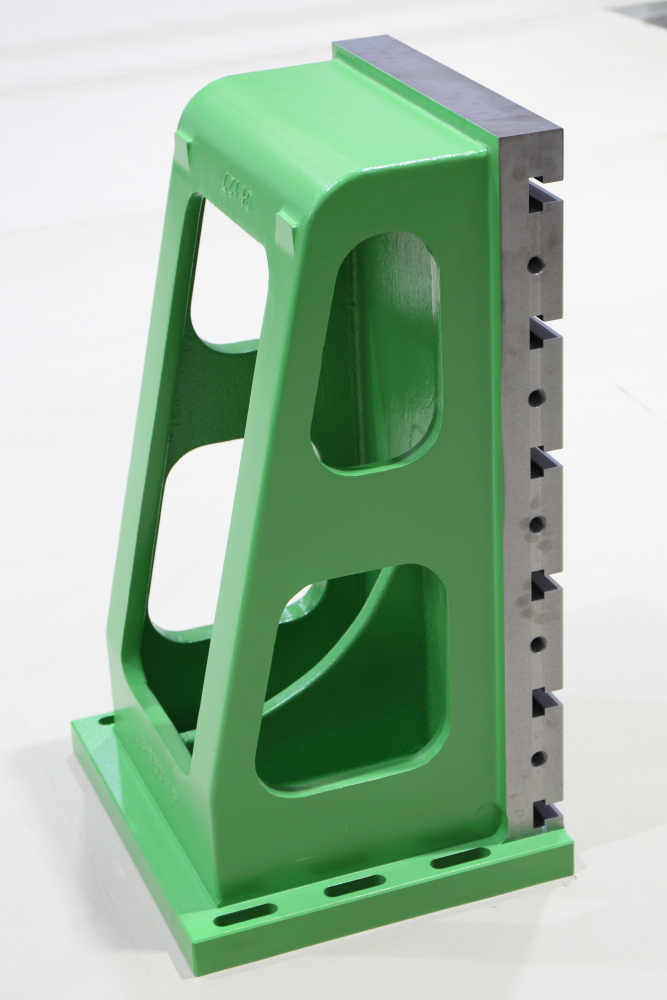

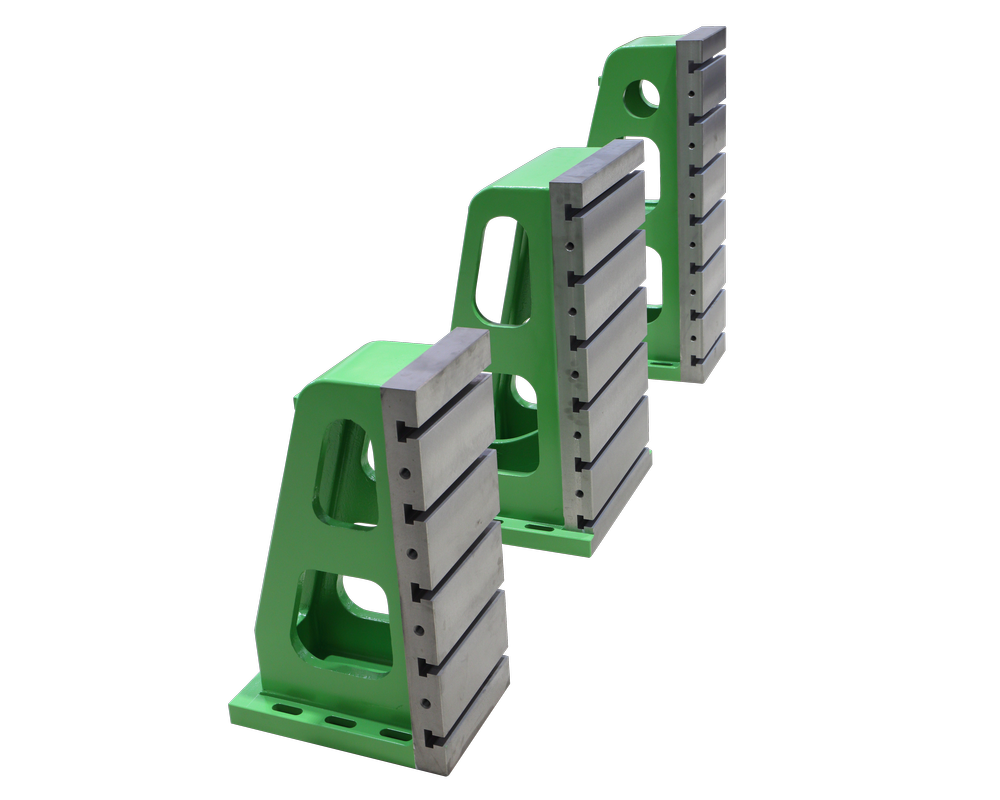

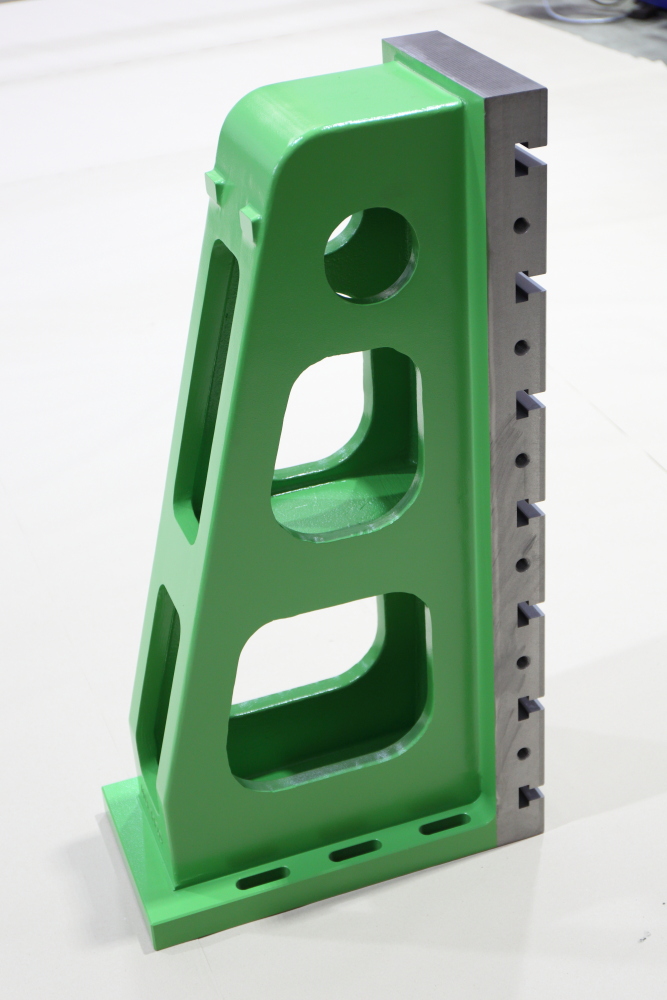

Depending on the size, are offered two clamping angle plate versions – see illustrations.

Customised version on demand (slot pitch and size, threads and connection holes)



BRIEF TECHNICAL DESCRIPTION

UU800 – UU3000 clamping angle plates are high-quality gray iron castings with reinforcement ribs for high stiffness.

The angle plate’s clamping surfaces have T-slots and thread holes.



GEOMETRIC ACCURACY

During clamping, it is necessary to align the UU in order to obtain the required geometric accuracy.

Geometric accuracy can be improved by finishing the clamping angle plate directly on the machine on which it will be used.
