Horizontal boring mills

VH80, VH100

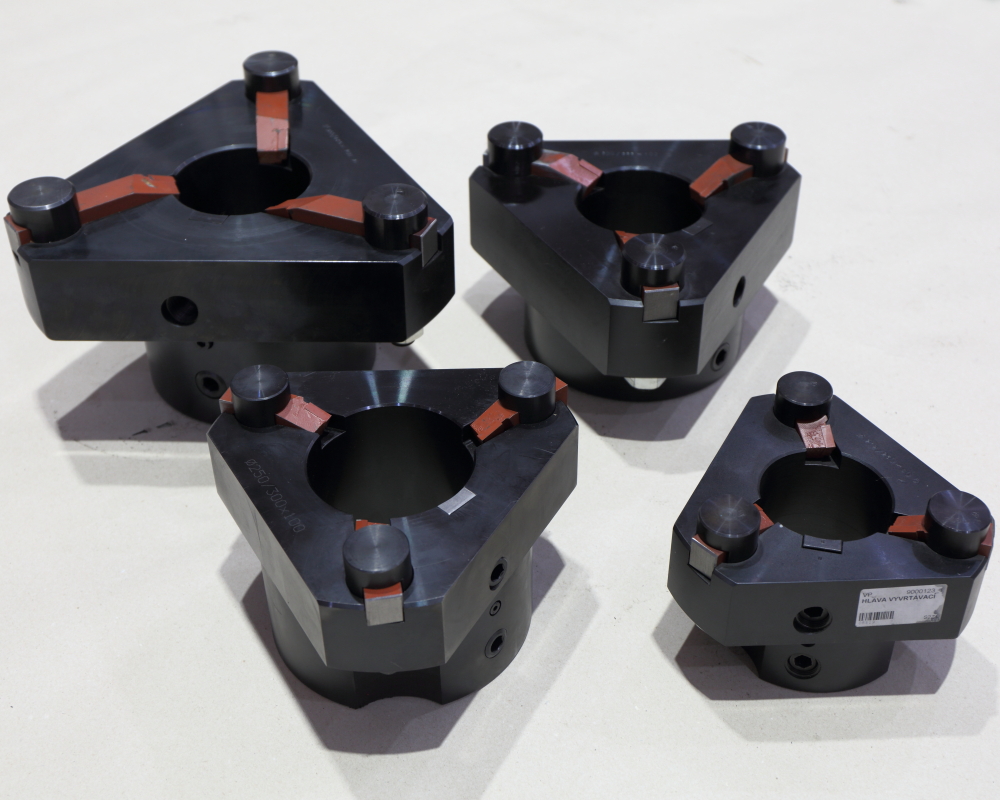

three-tool boring head

Request

Together with the boring bars VT80, VT100 the three-tool boring heads allow you to bore out complicated and deep through holes – meeting the requirements for maximum precision and axial alignment.

Main Parameters

Inner diameter (boring bar diameter) 80 80 80 80 80 100 100 100 mm
Min. boring diameter 180 212 250 300 355 250 300 355 mm
Max. boring diameter 212 250 300 355 425 300 355 425 mm
Length of head hub 88 125 125 125 160 125 125 160 mm
Tool measures (square cross-section) 20 20 20 25 25 20 25 25 mm
Weight 11 11 18 22 33 17 25 35 kg
