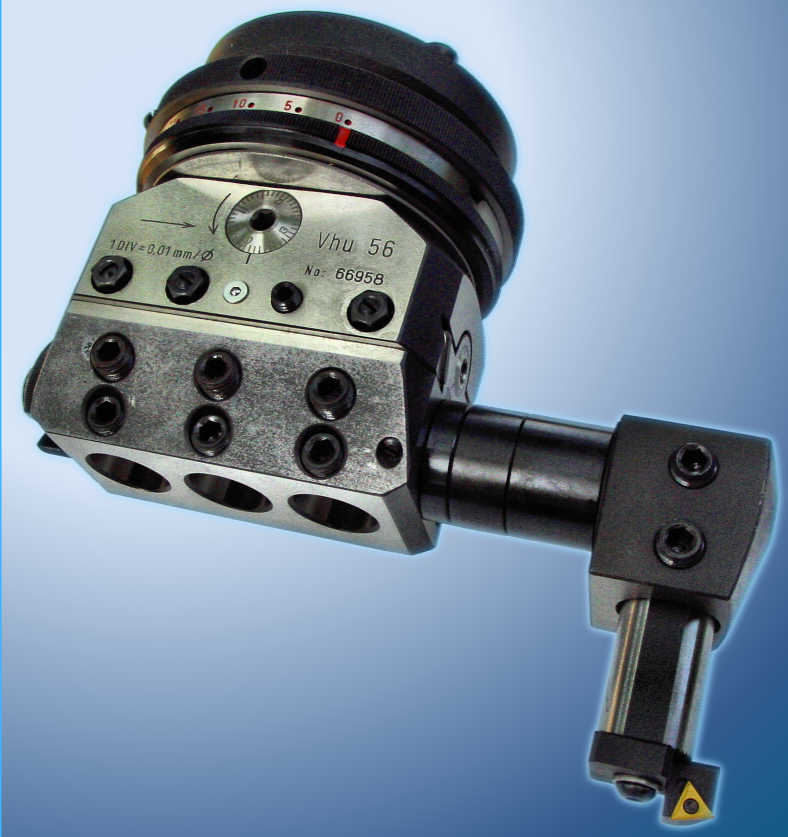

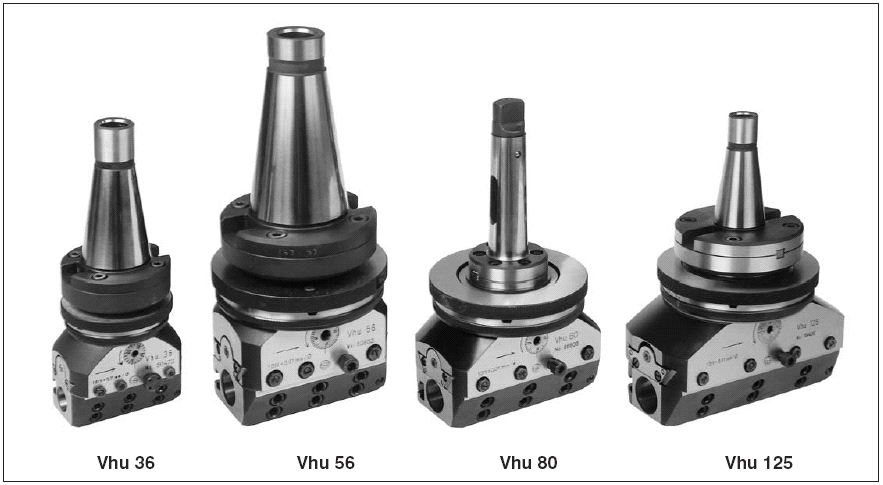

Universal Boring Head

  •  considerably increases the capabilities of boring and milling machines
  •  for precision boring of cylindrical holes and for machining fo external cylindrical surfaces
  •  by using automatic slide feed, the boring head can be used for facing, backfacing and taper machining

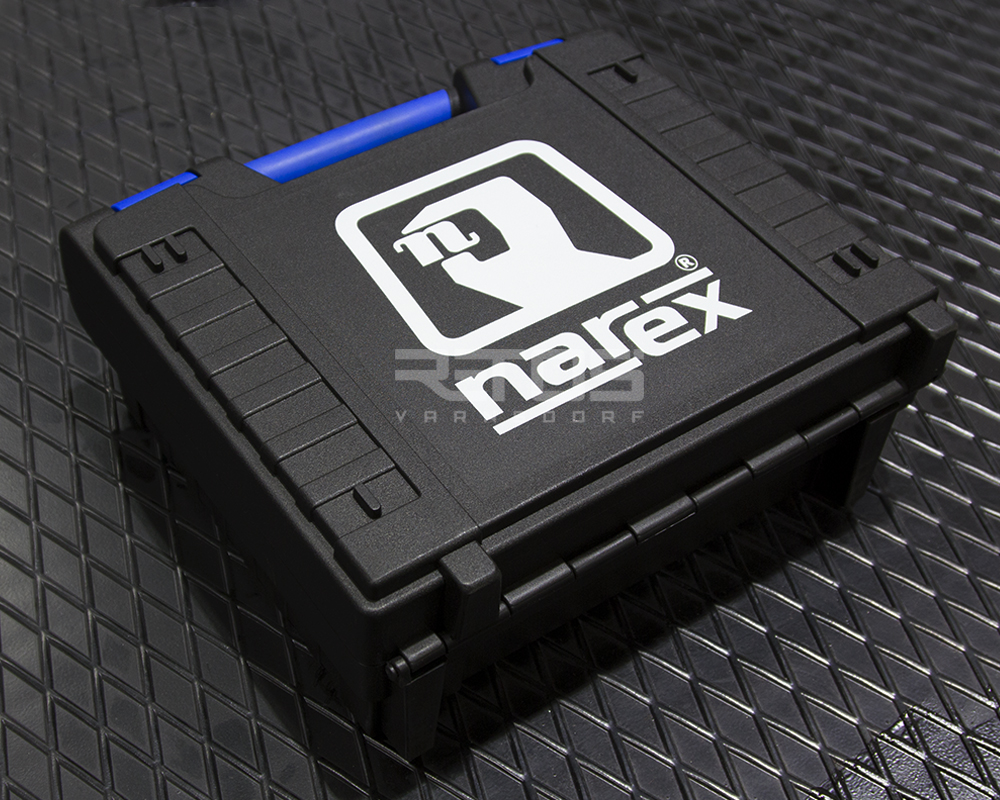

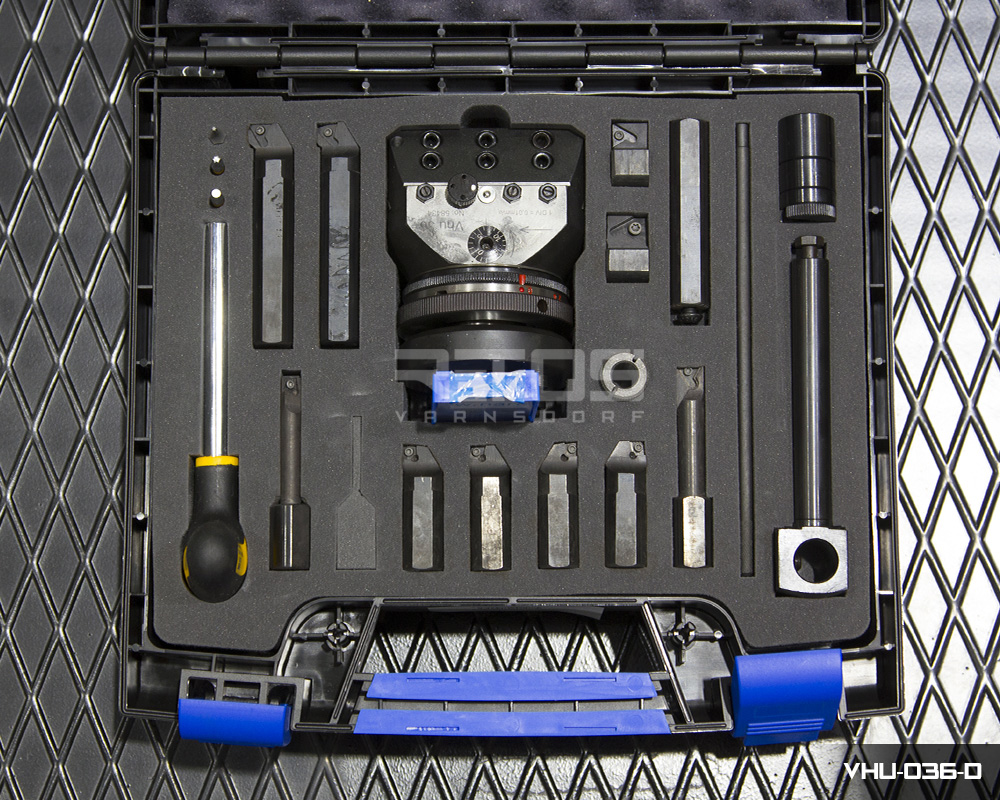

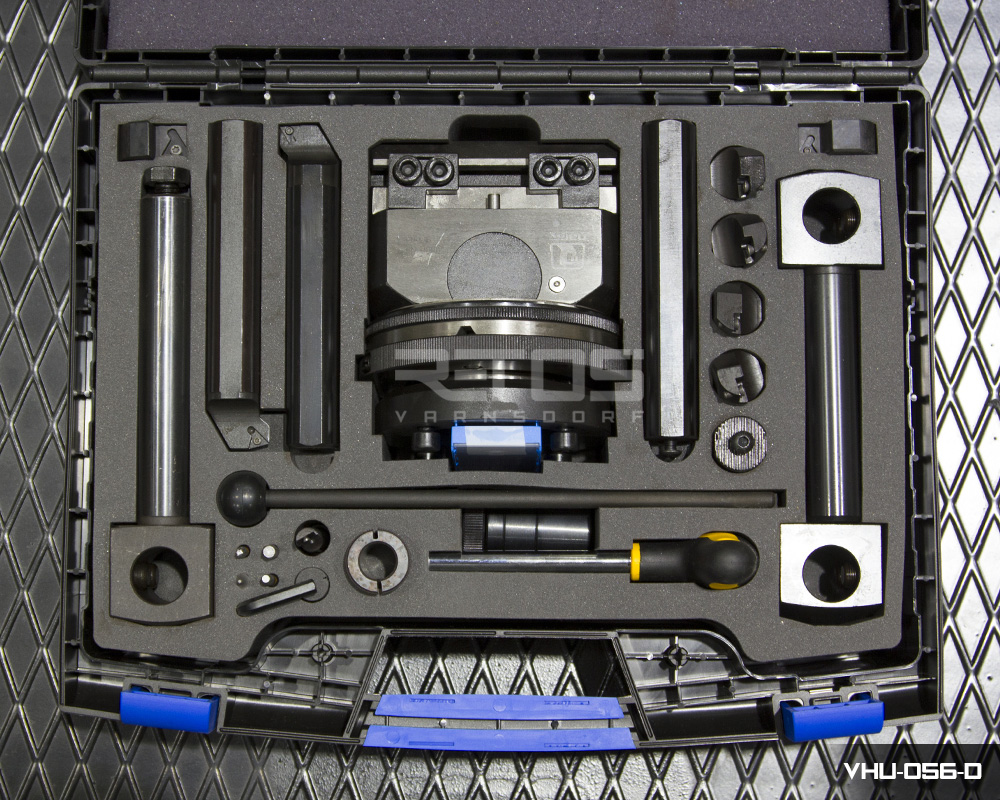

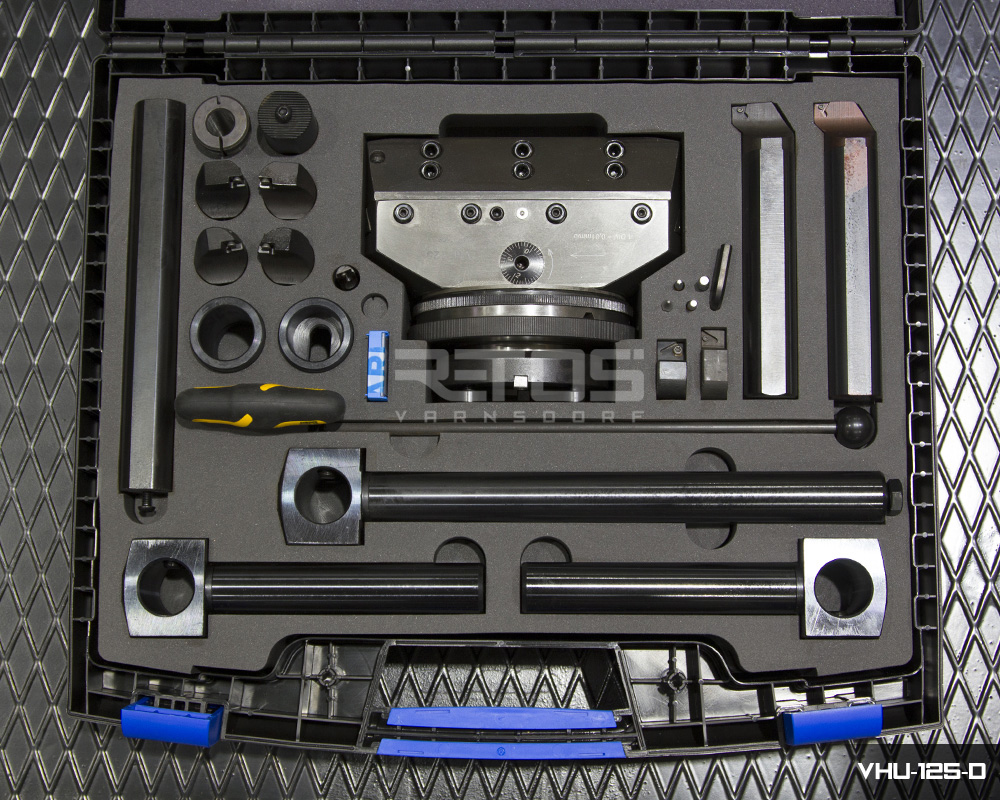

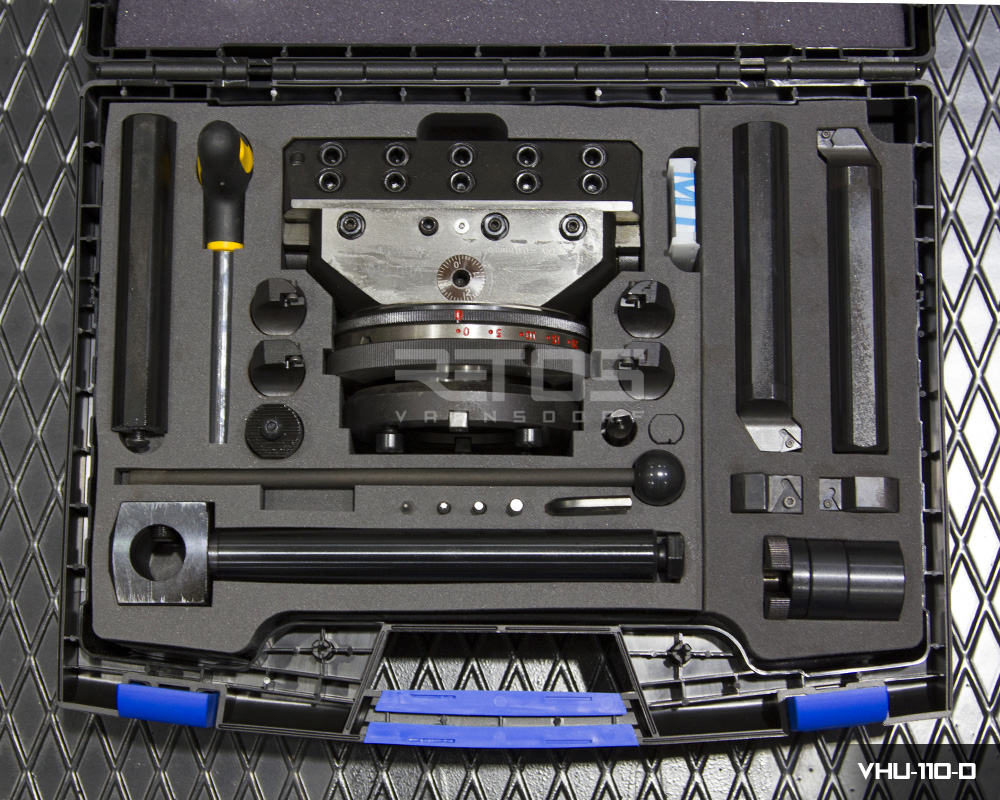

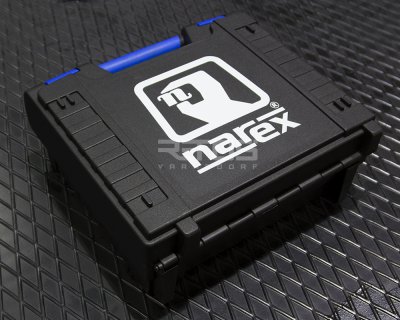

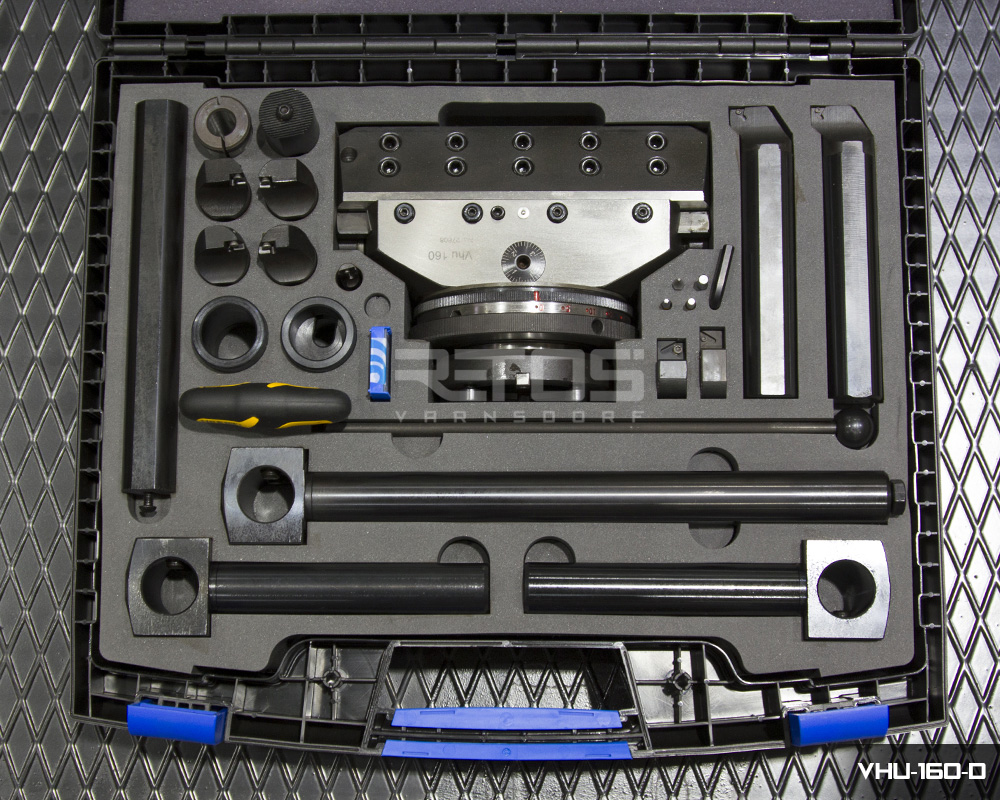

  •  delivered with basic accessories in a case

Main Parameters

36 56 80 110 125 160
Slide travel 36 56 80 110 125 160 mm
Facing diameter 230 320 380 430 610 690 mm
Boring diameter 225 360 410 450 650 720 mm
Manual rapid feed 3 4 mm/rev
Accuracy of adjustment 1 DIV = 0,01 mm/Ø
Diameter of clamping holes 16 25 32 mm
Weight of head 2,1 7,5 8,1 8,4 12,4 13,8 kg
Taper shanks VK360 VK800, VK801 VK801 VK
Case dimensions 320 x 270 x 85 490 x 350 x 165 540 x 380 x 170 mm
