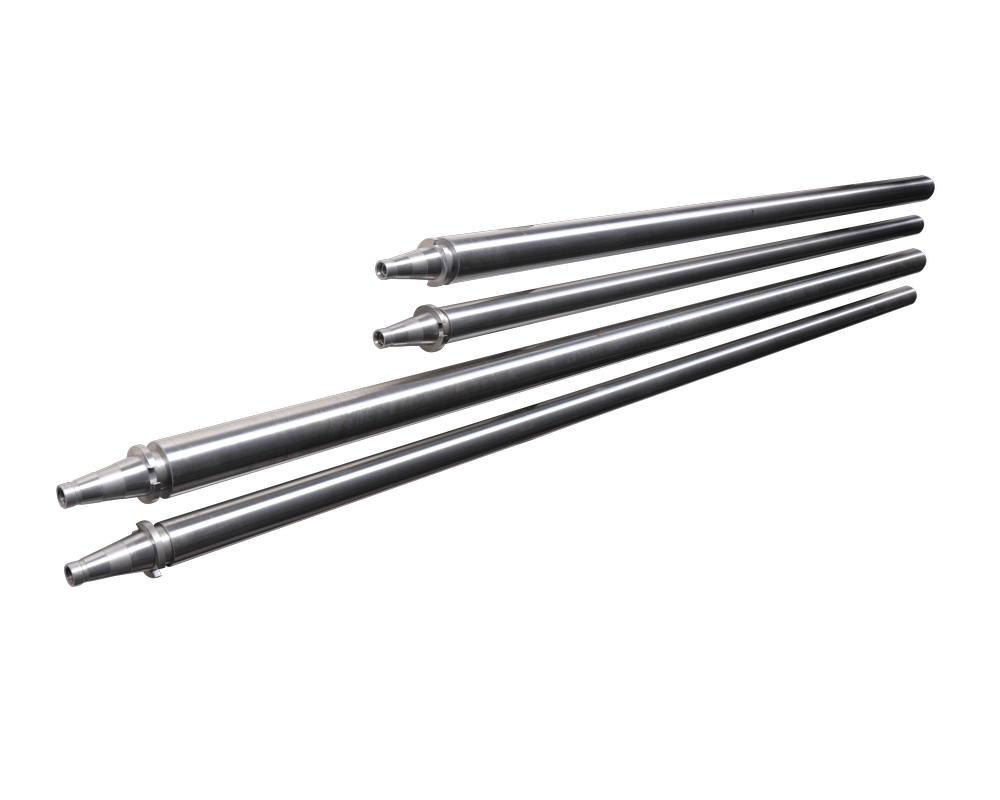

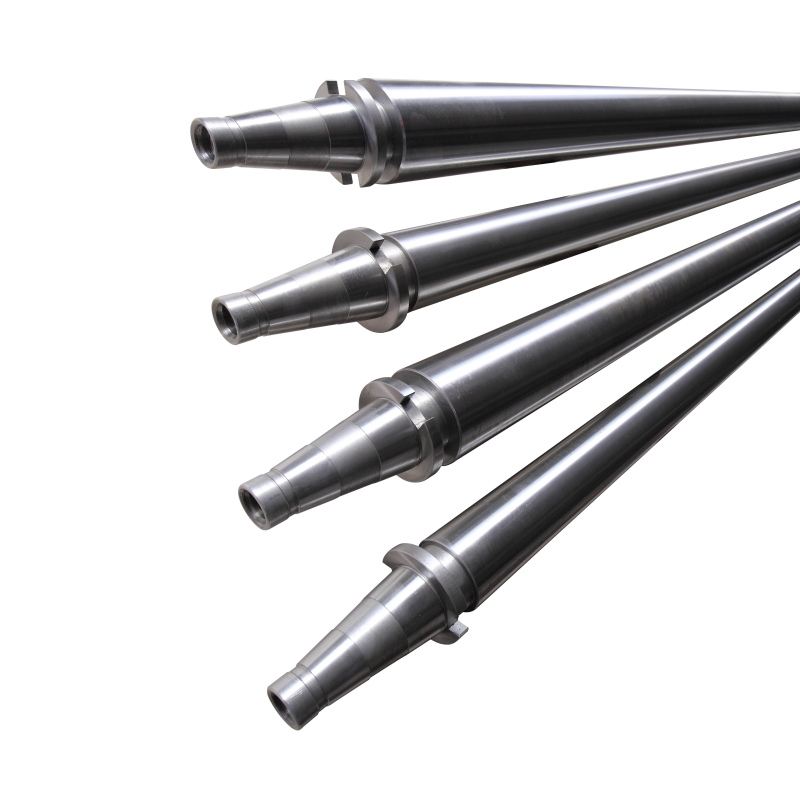

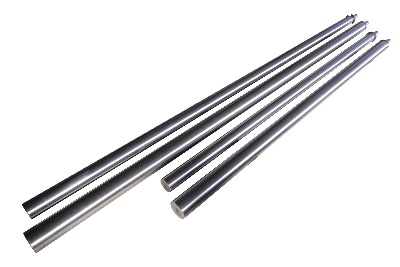

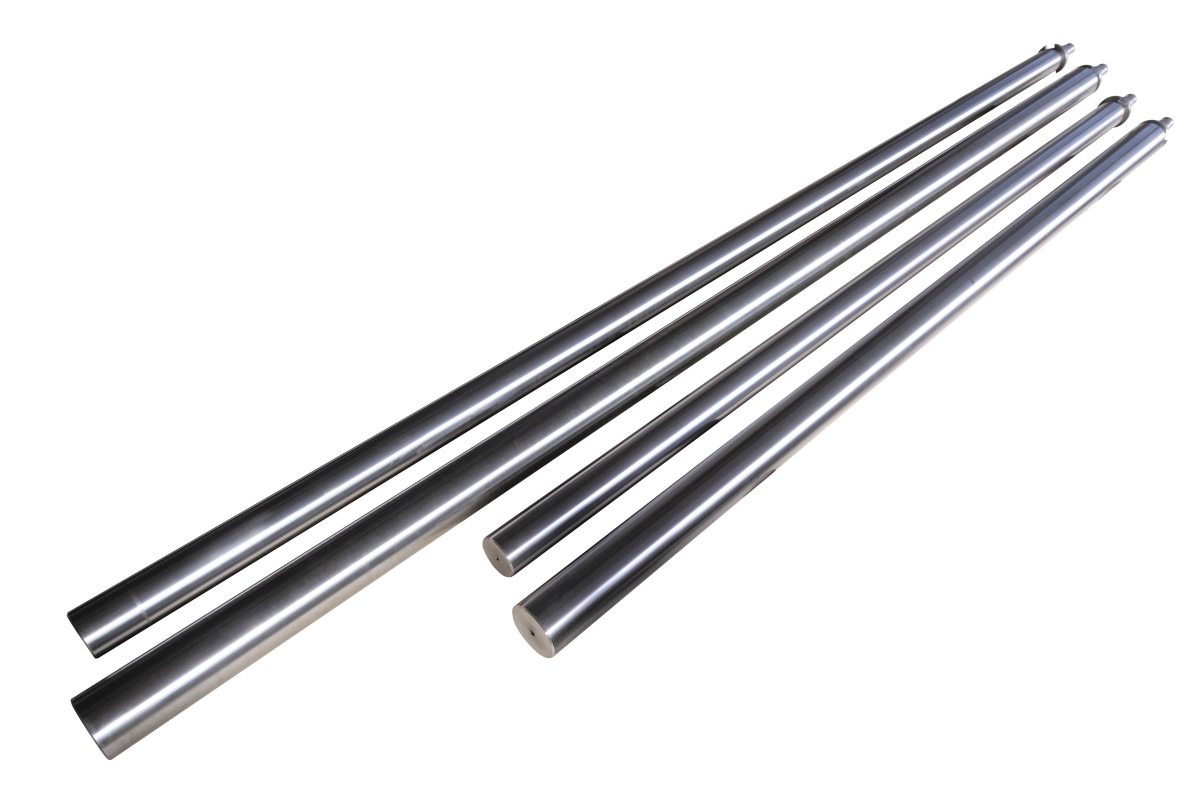

The smooth VT80 and VT100 boring bars with an ISO50 shank are optional accesssories for the W100A horizontal boring and milling machines in the version with a boring bar support (steady rest).
The use of the boring bars allows you to bore out complicated and deep through holes – meeting the requirements for maximum precision and axial alignment.
The boring bars cannot be used without the according sliding bush of the steady rest (LLK150).
Gallery
MAIN PARAMETERS
Boring bar diameter | 80 | 100 | mm |
Boring bar working length | 2500 / 3150 | 2500 / 3150 | mm |
Max. speed (achievable on the W100A machine) | 560 | 560 | rpm |
Max. permissible transmitted power | 10 | 10 | kW |
Max. permissible torque | 250 | 250 | Nm |
Min. inner machining diameter | 81 | 101 | mm |
Boring bar weight | 180 / 230 | 190 / 240 | kg |
