W100A-R, OVERHAUL 2008 | 4. 8. 2021

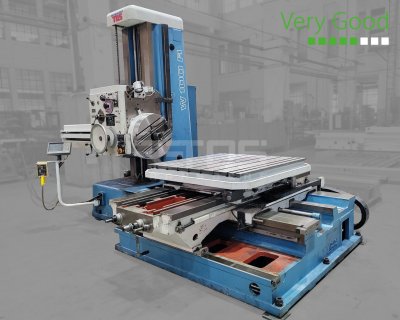

■ TABLE TYPE HORIZONTAL BORING MILL
■ PRODUCER: TOS VARNSDORF
■ OVERHAUL YEAR: 2008 (ROTOS)
■ CONDITION: USED, VERY GOOD
■ WARRANTY: NO
■ ON STOCK AT THE SUPPLIER
SPECIFICATION
■ the machine is fully functional
■ measurement of 5 axis ELBO VS2000 (X, Y, Z/W) + ESA ADP1 (B)
■ CHZ100 tool cooling kit by emulsion
Parameters
| Workspindle diameter | 100 | mm |
| Clamping taper | 50 | ISO |
| Spindle speed range | 1120 | rpm |
| Table transversal travel (X) | 1600 | mm |
| Headstock travel (Y) | 1120 | mm |
| Table longitudinal travel (Z) | 1250 | mm |
| Spindle stroke (W) | 900 | mm |
| Table clamping surface | 1250 x 1250 | mm x mm |
| Table loading capacity | 3000 | kg |
