W100A-R, OVERHAUL 2010 | 24. 9. 2021

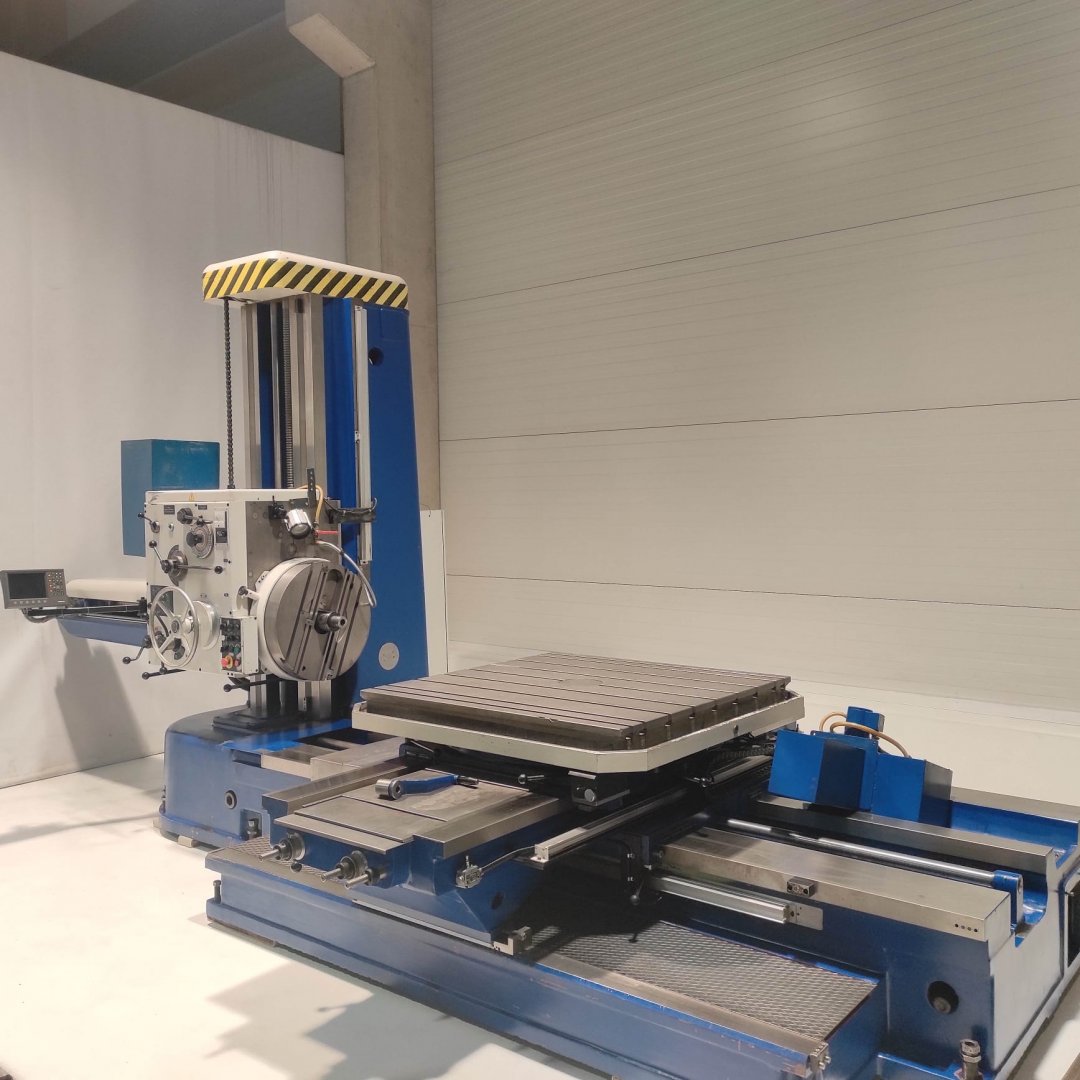

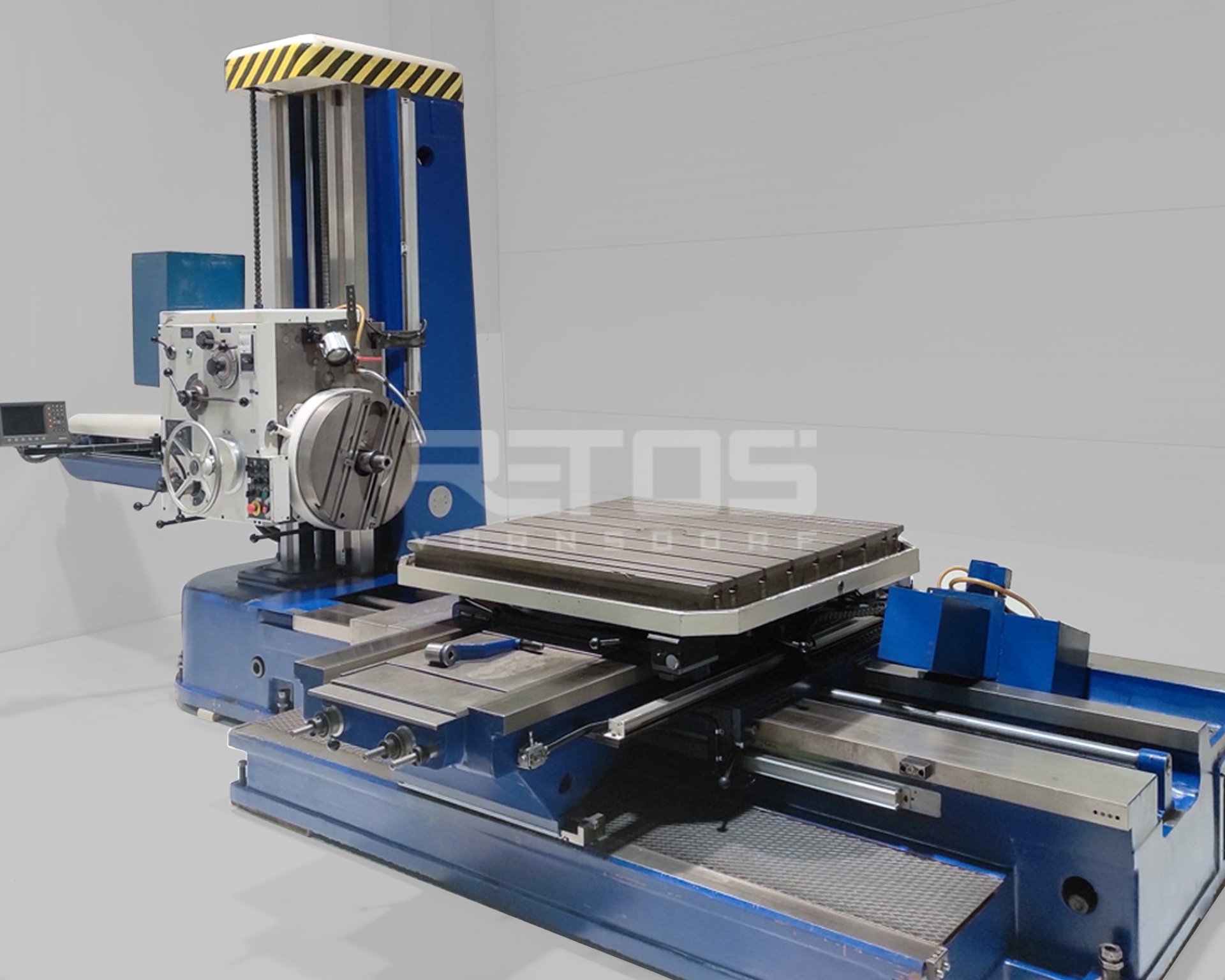

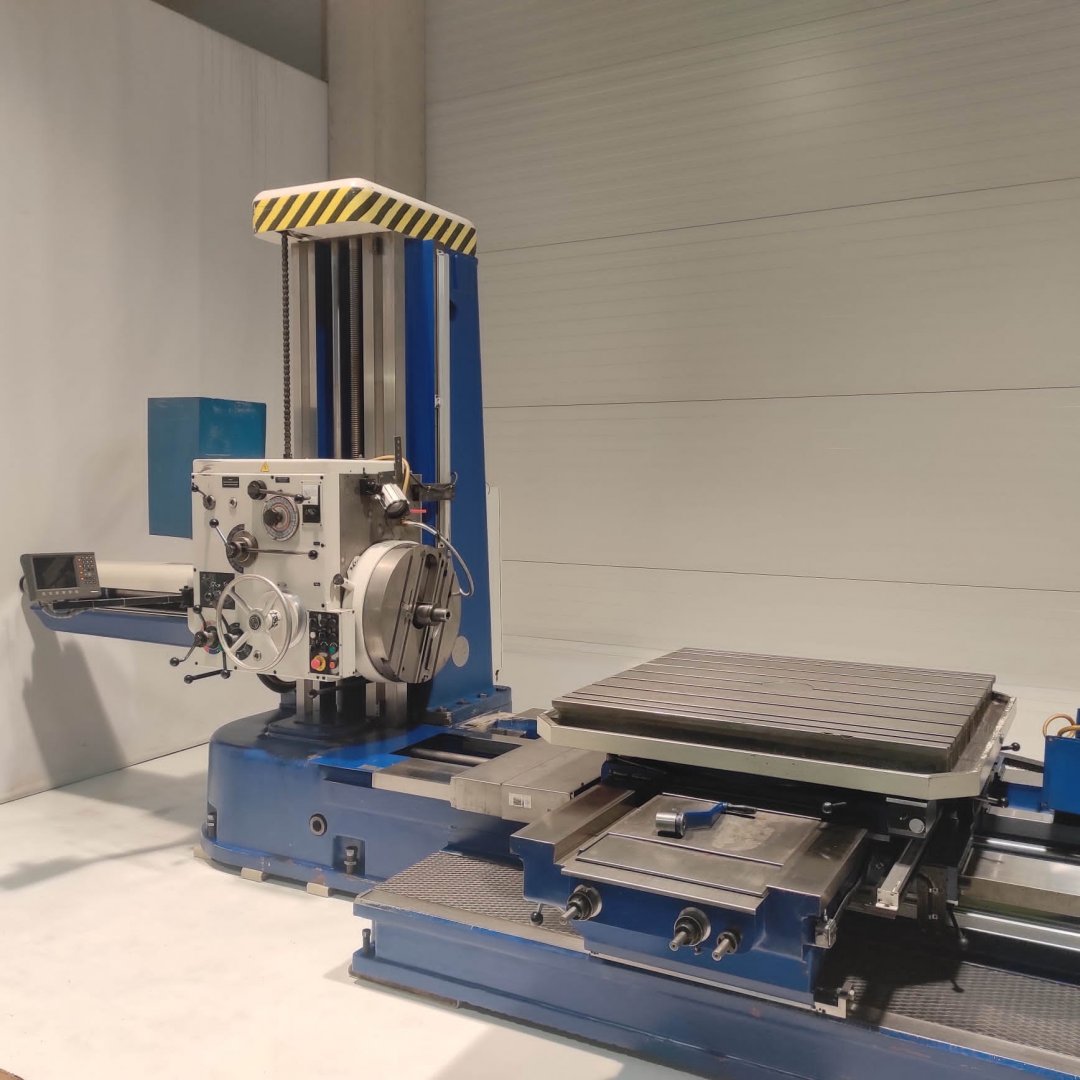

■ TABLE TYPE HORIZONTAL BORING MILL
■ PRODUCER: TOS VARNSDORF
■ OVERHAUL YEAR: 2010
■ CONDITION: USED, EXCELLENT
■ WARRANTY: YES
■ IN STOCK
Specification
■ the machine is fully functional, occasionally used
■ measurement HEIDENHAIN PT880 of 5 axis (X, Y, Z, W, B)
■ CHZ100 tool cooling kit
■ possible with boring bar support (steady rest) after overhaul
Parameters
| Workspindle diameter | 100 | mm |
| Clamping taper | 50 | ISO |
| Spindle speed range | 1120 | rpm |
| Table transversal travel (X) | 1600 | mm |
| Headstock travel (Y) | 1120 | mm |
| Table longitudinal travel (Z) | 1250 | mm |
| Spindle stroke (W) | 900 | mm |

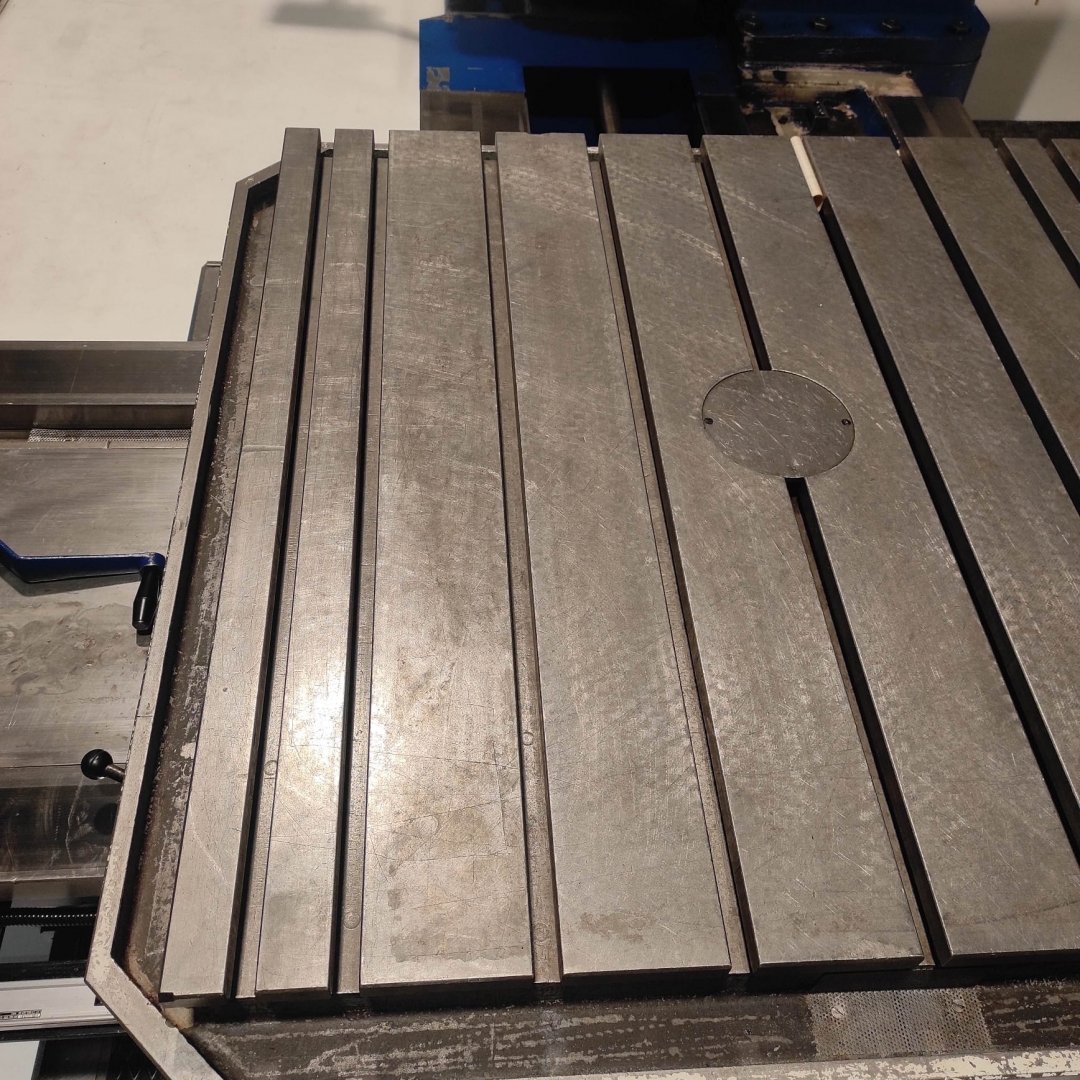

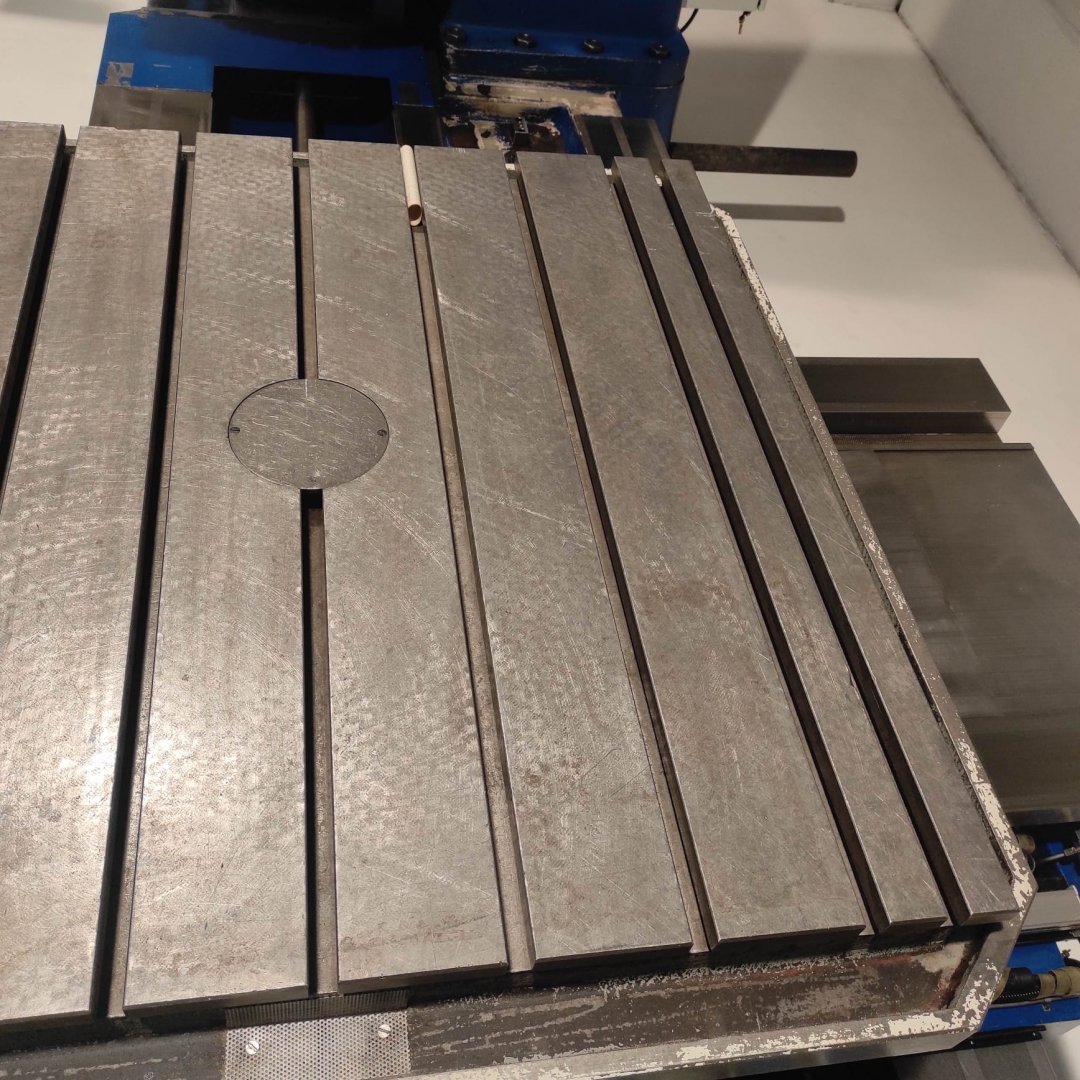

| Table clamping surface | 1250 x 1250 | mm x mm |
| Table loading capacity | 3000 | kg |
Gallery
