Horizontal boring mills

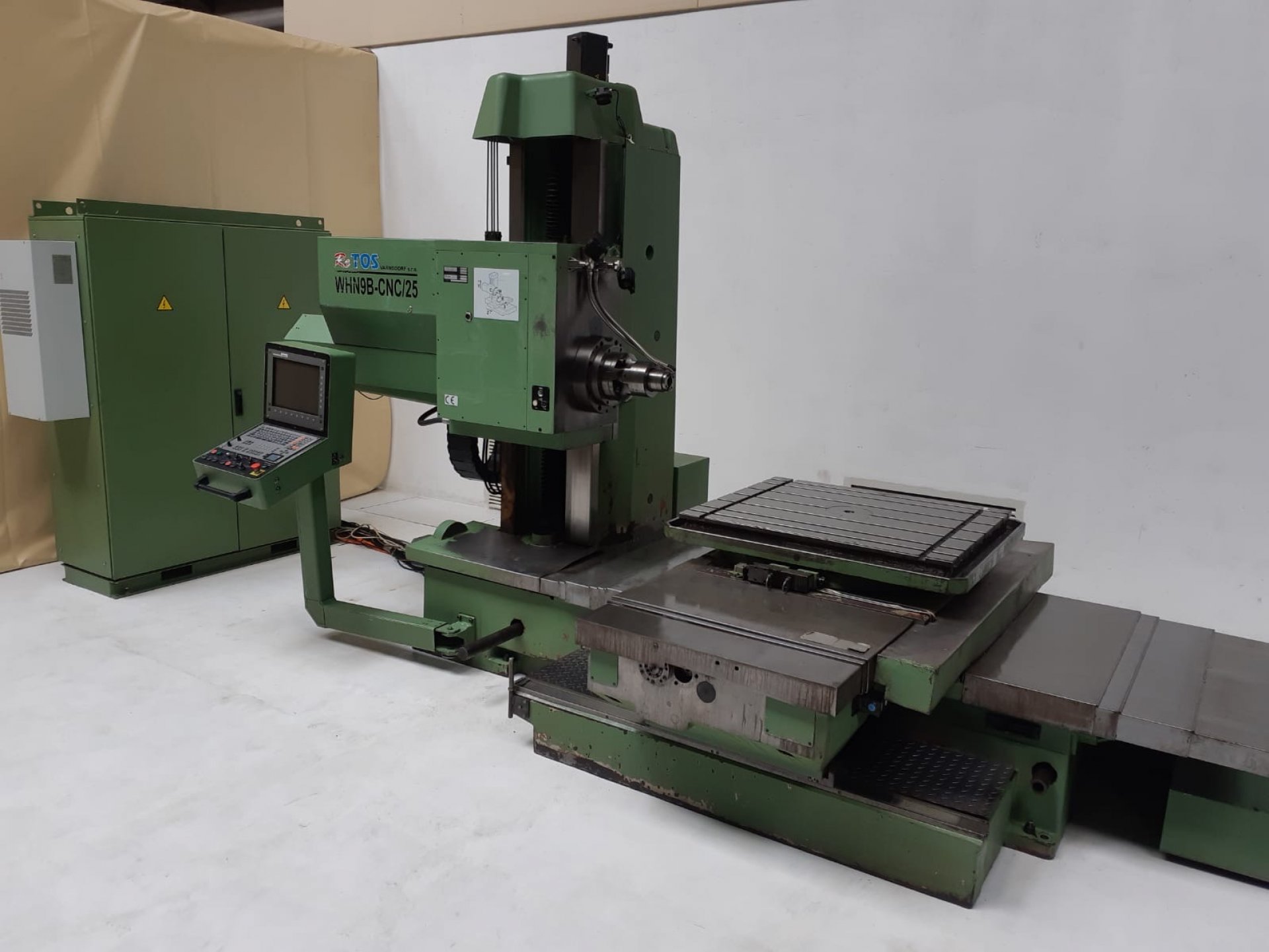

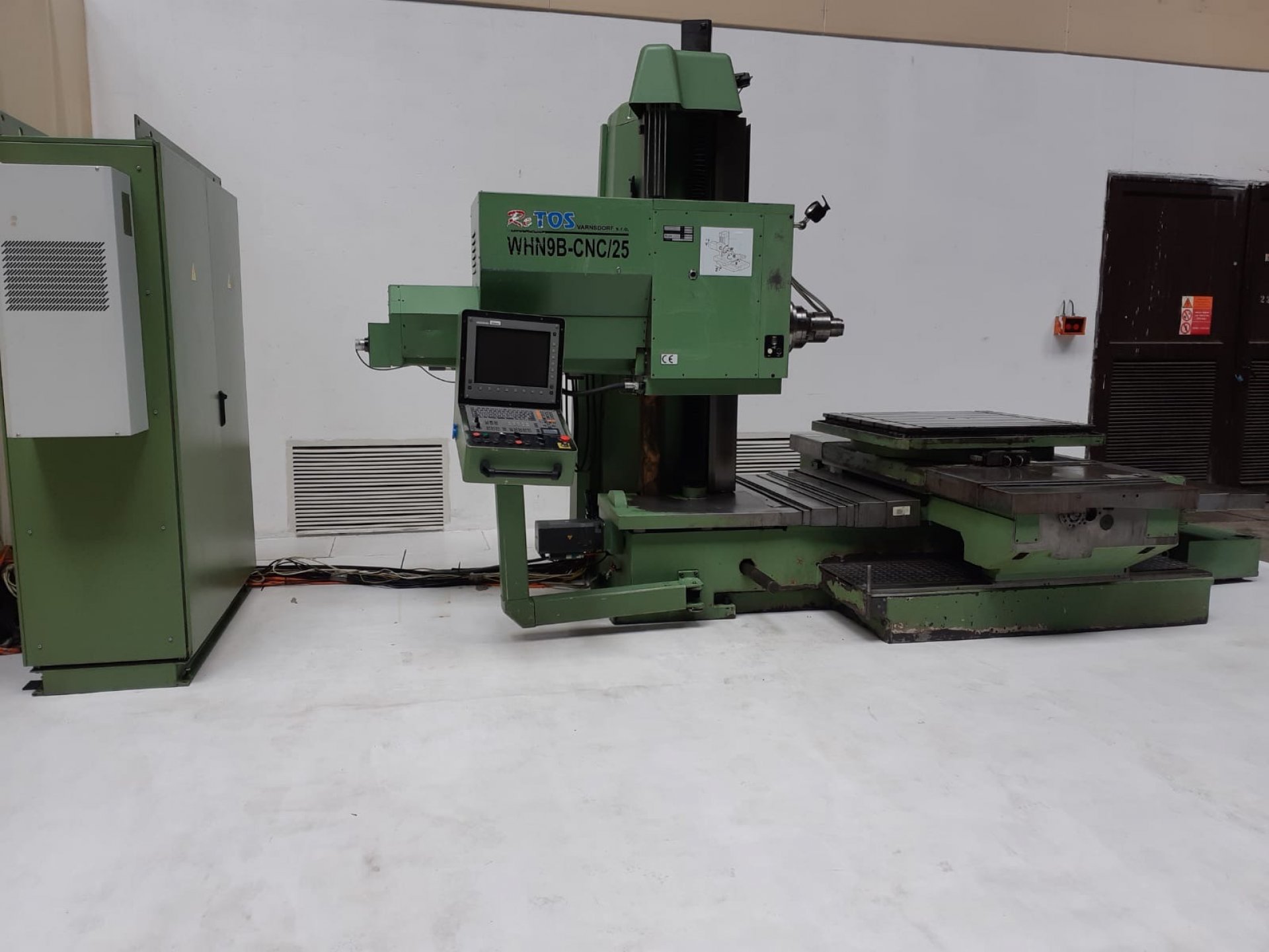

WHN9B-CNC/25, OVERHAUL 2008

■  TABLE TYPE HORIZONTAL BORING MILL

■  PRODUCER: TOS/RETOS VARNSDORF

■  OVERHAUL YEAR: 2008

■  CONDITION: USED, GOOD

■  WARRANTY: YES

■  ON STOCK AT THE SUPPLIER

SPECIFICATION

■  HEIDENHAIN iTNC530 control system + handwheel

■  new WH10CNC headstock was apllied during the overhaul

■  machine will be delivered with a new working spindle incl. clamping system as well as VP170 guiding support

■  CHZ10 functional cooling

Parameters

Workspindle diameter 100 mm
Clamping taper 50 ISO
Spindle speed range 2500 rpm
Transversal table travel (X) 1200 mm
Vertical headstock travel (Y) 900 mm
Longitudinal table travel (Z) 950 mm
Spindle stroke (W) 630 mm

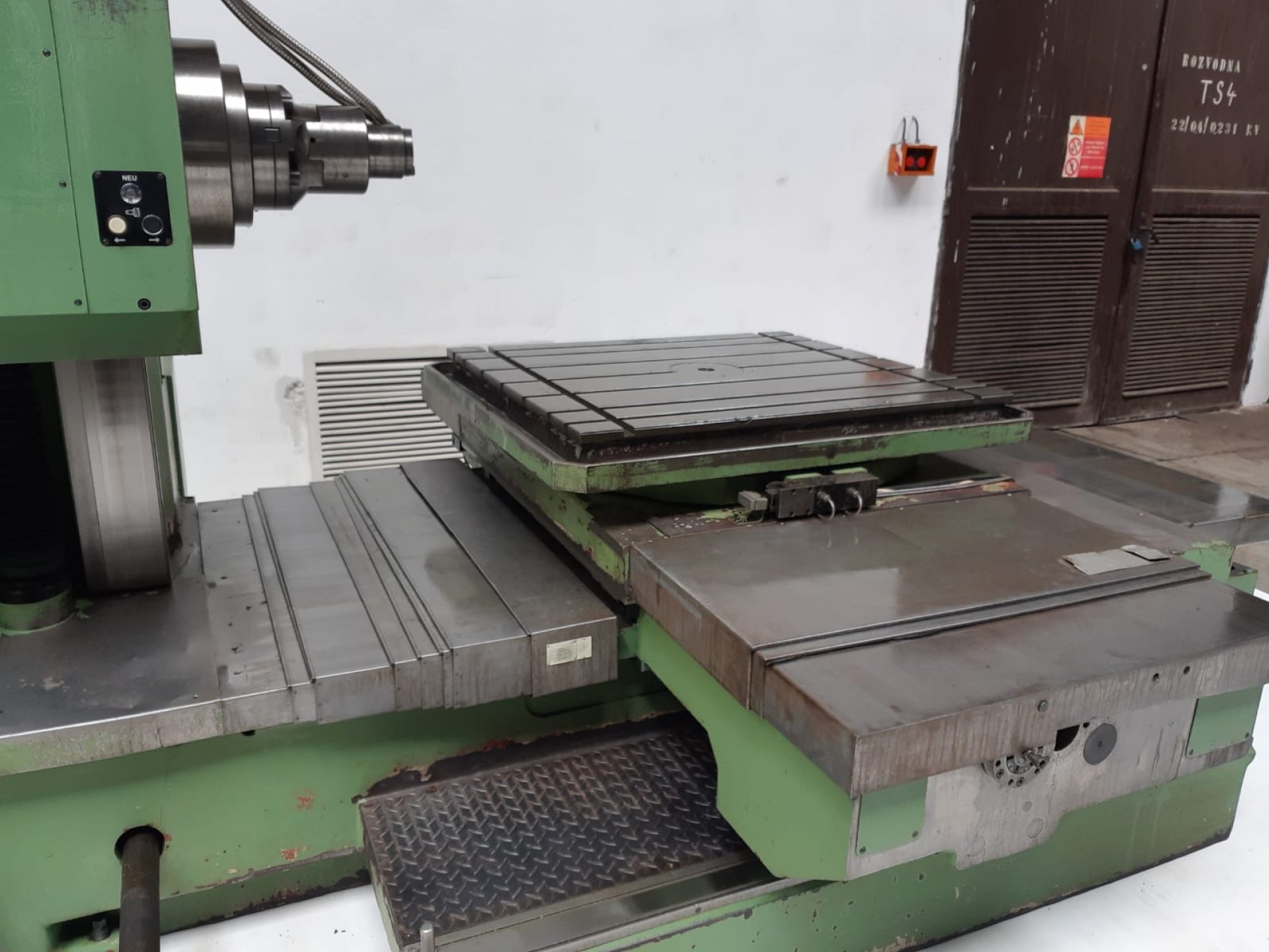

Table clamping surface 1000 x 1120 mm x mm
Table loading capacity 3000 kg
