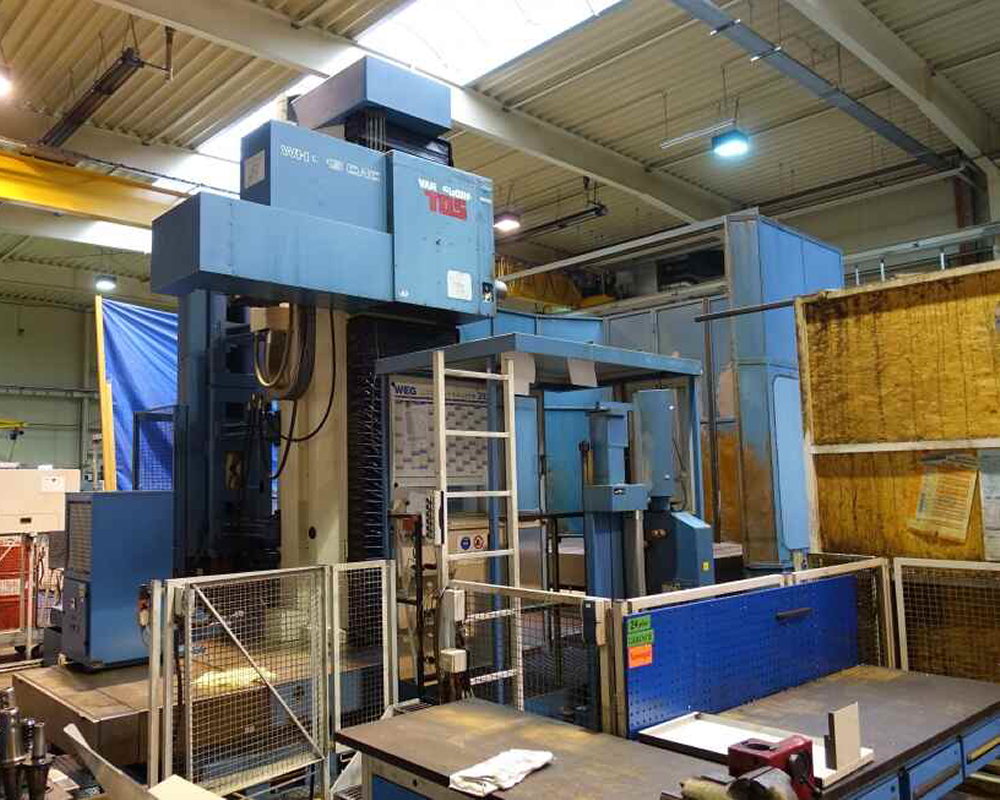

Horizontal boring mills

WHQ13.8CNC, 2004 | 7. 6. 2021

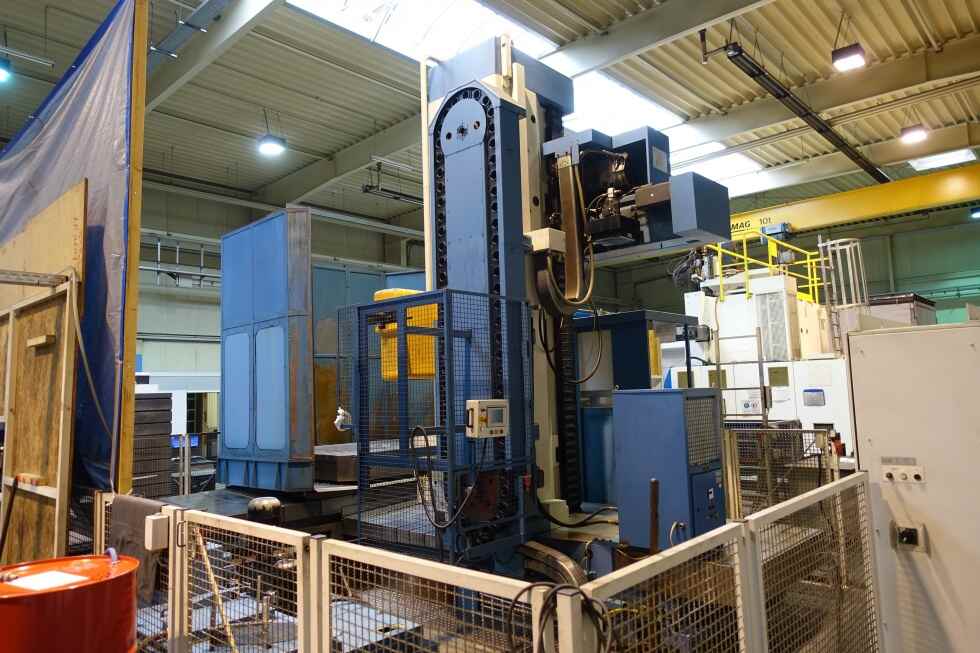

■  T-TYPE HORIZONTAL BORING MILL

■  PRODUCER: TOS VARNSDORF

■  PRODUCTION YEAR: 2004

■  CONDITION: USED, EXCELENT

■  WARRANTY: YES

■  ON STOCK AT THE SUPPLIER

Request

Specification

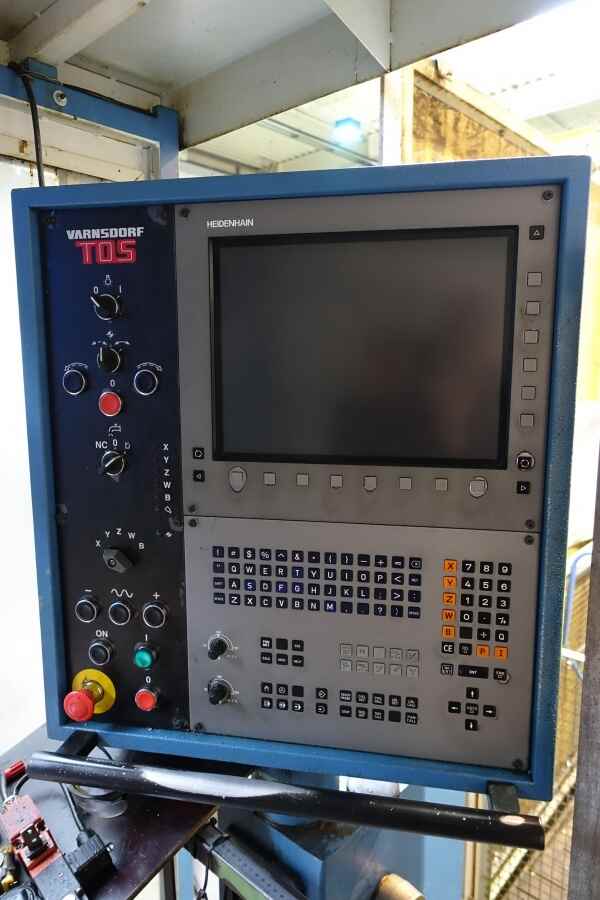

■  HEIDENHAIN iTNC530 control system + handwheel

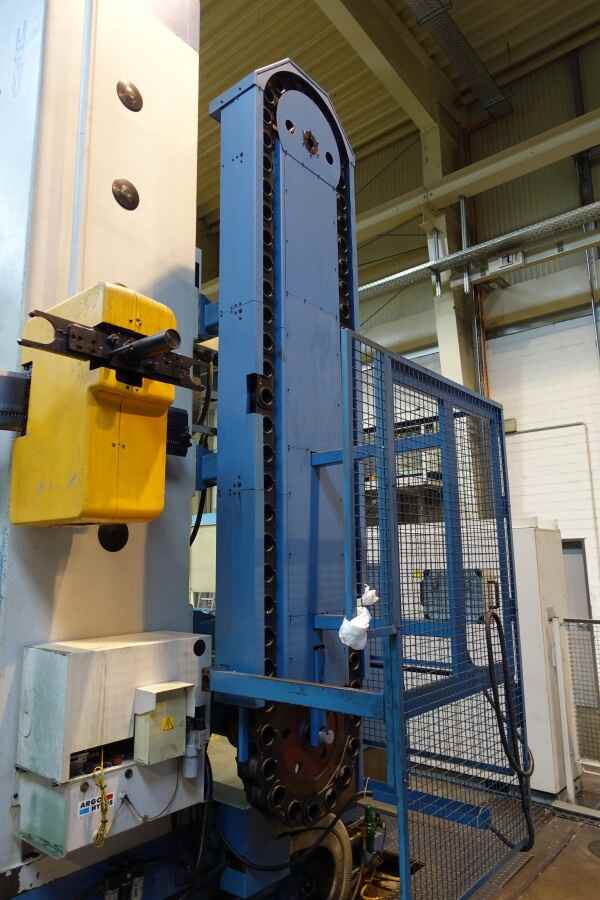

■  ATC60 automatic toolchanger

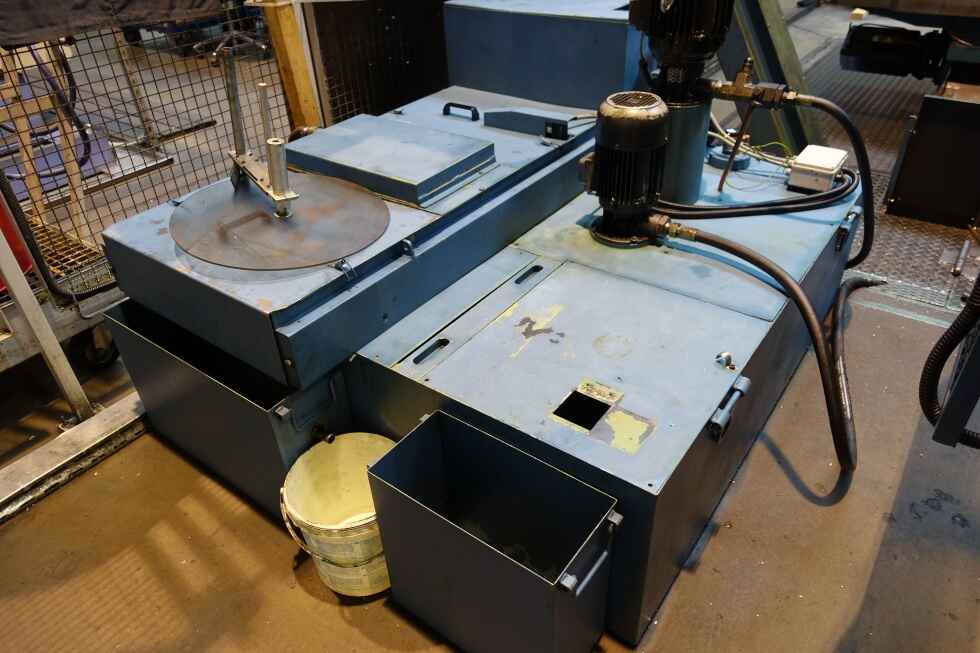

■  CHOV-20bar – tool cooling

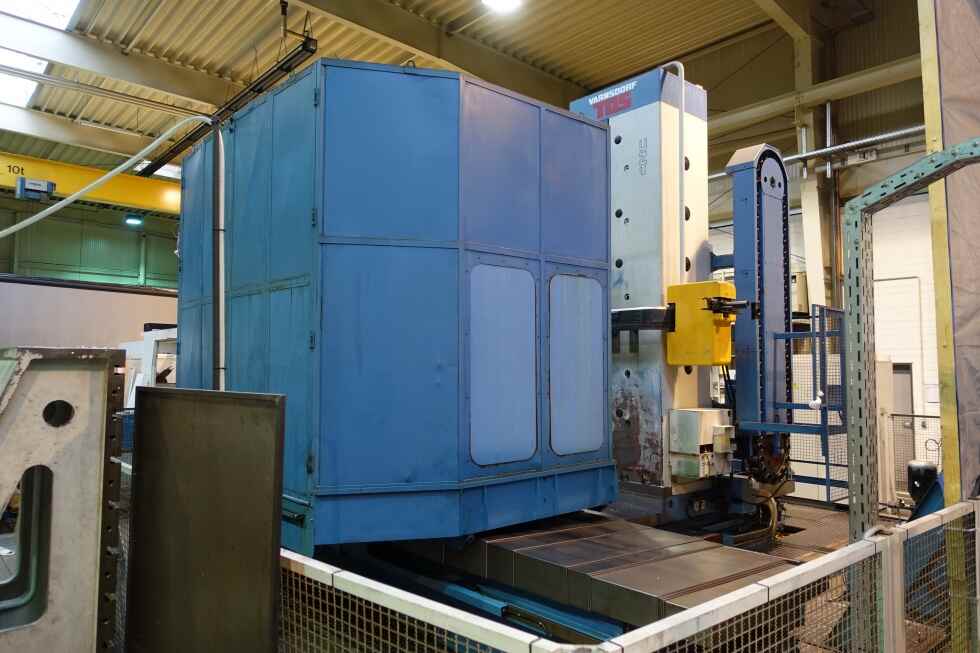

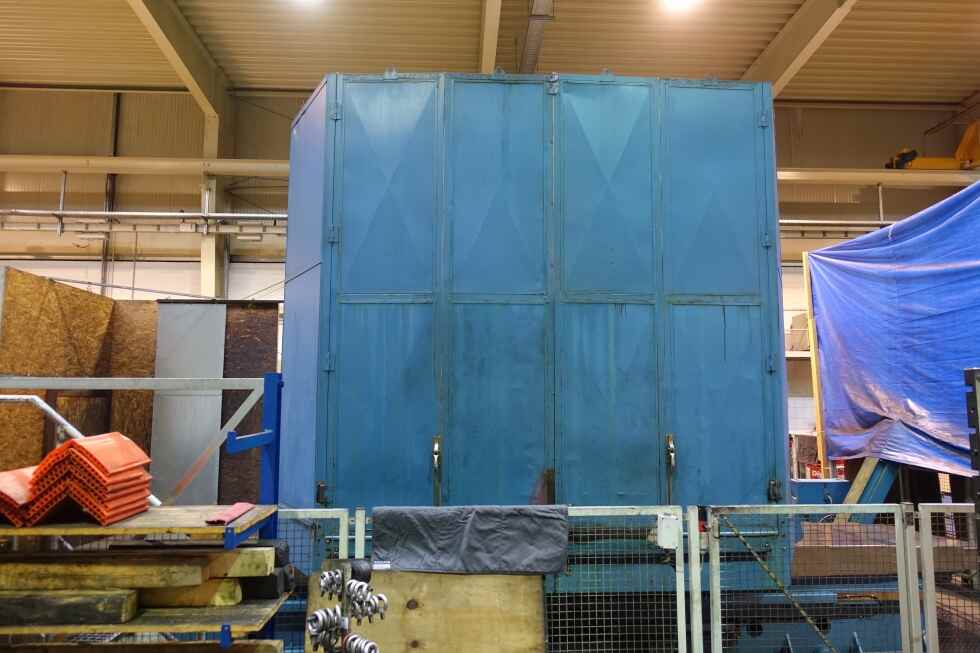

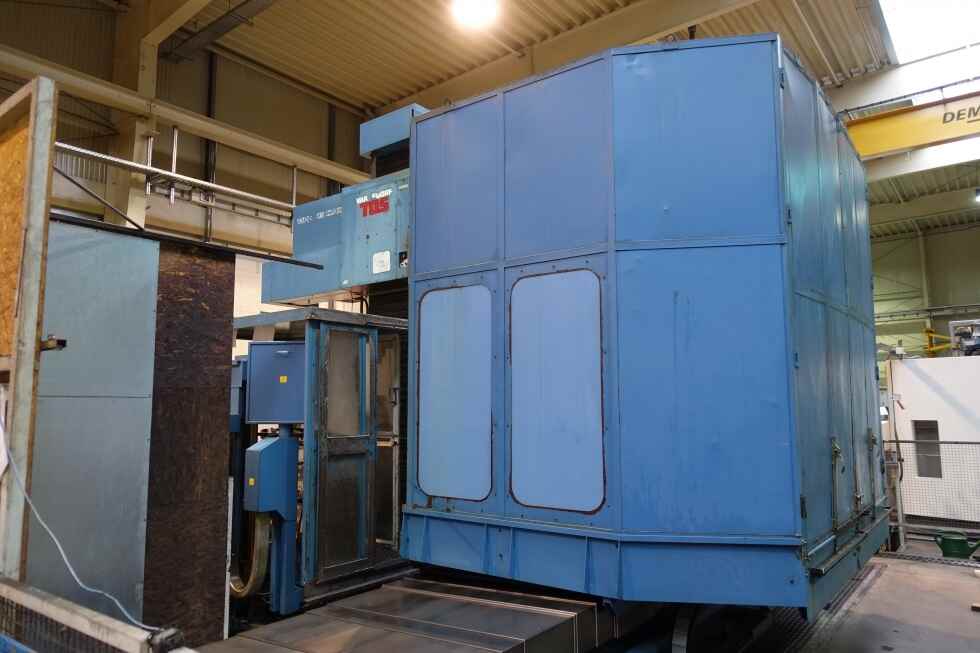

■  Protective workpiece cover KVR

■  in the 2013 was the column-saddle after a weight fall expertly repaired by RETOS

Parameters

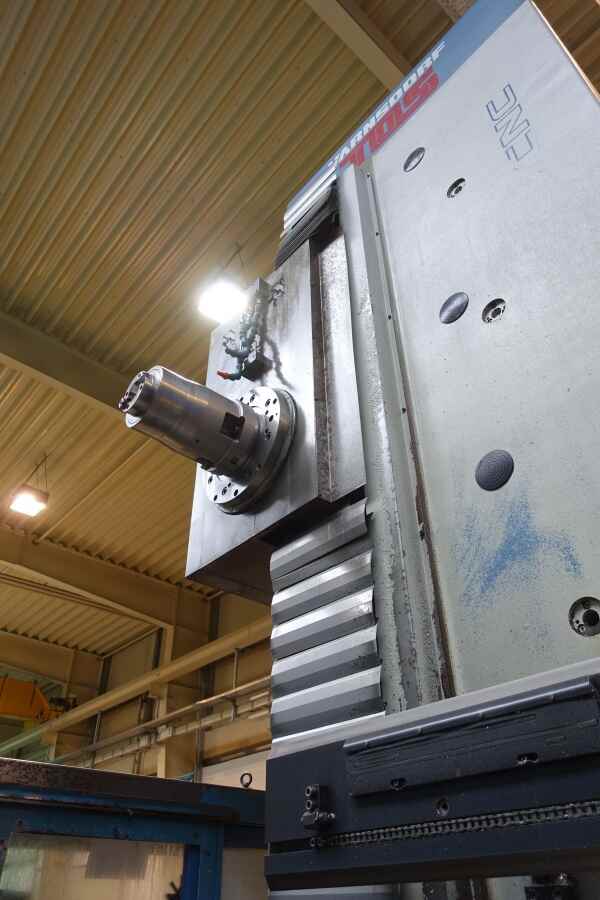

Spindle diameter 130 mm
Spindle taper 50 ISO
Turning speeds 3000 rpm
Transversal table travel (X) 3500 mm
Vertical headstock travel (Y) 2500 mm
Longitudinal table travel (Z) 1250 mm
Spindle stroke (W) 800 mm

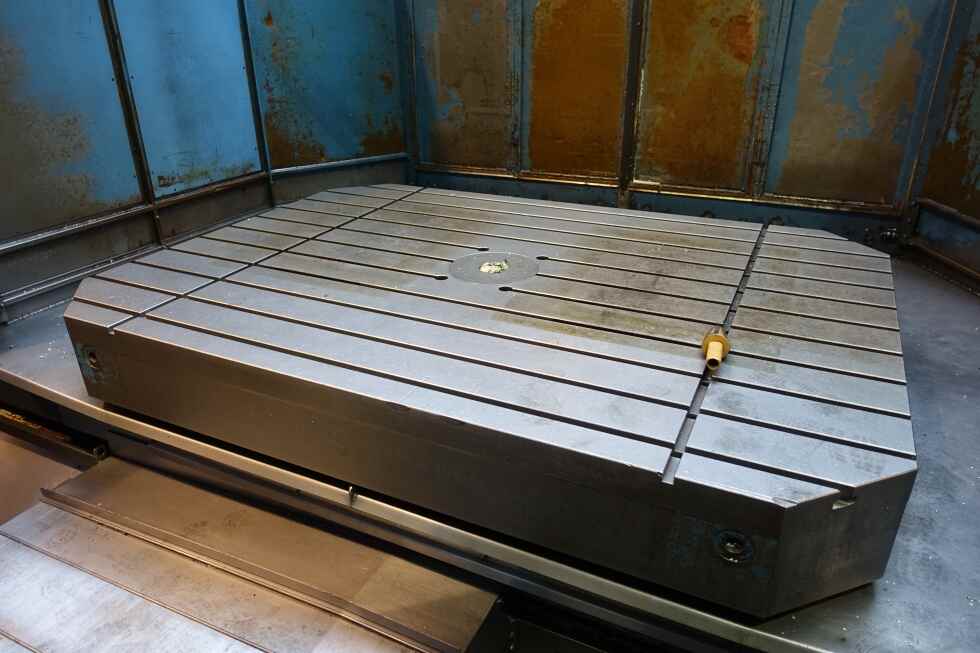

Table clamping surface 1800 x 2200 mm x mm
Table loading capacity / with KVR 8000 / 12000 kg
