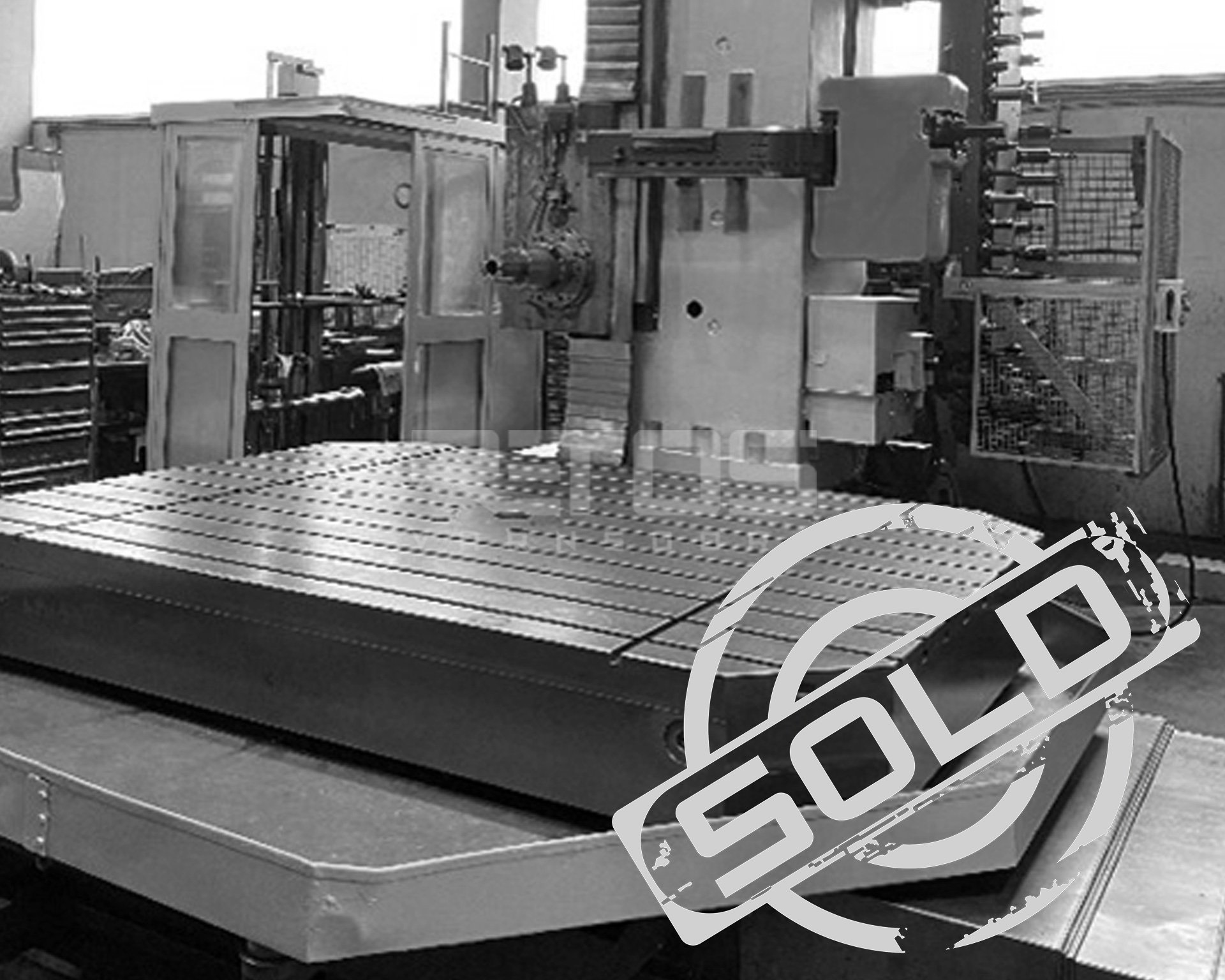

WHQ13.10CNC, 2008
■ T-TYPE HORIZONTAL BORING MILL
■ PRODUCER: TOS VARNSDORF
■ PRODUCTION YEAR: 2008
■ CONDITION: USED, GOOD
■ WARRANTY: YES
■ ON STOCK AT THE SUPPLIER
Specification
■ HEIDENHAIN iTNC530 control system + handwheel
■ ATC60 automatic toolchanger
■ CHOV-20bar – tool cooling
■ tool wear measurement PROMETEC
ПАРАМЕТРЫ
| Workspindle diameter | 130 | mm |
| Clamping taper | 50 | ISO |
| Spindle speed range | 3000 | rpm |
| Transversal table travel (X) | 4000 | mm |
| Vertical headstock travel (Y) | 3000 | mm |
| Longitudinal table travel (Z) | 1600 | mm |
| Spindle stroke (W) | 730 | mm |
| Table clamping surface | 2500 x 1800 | mm x mm |
| Table loading capacity | 20000 | kg |
