Horizontal boring mills

FP40-10

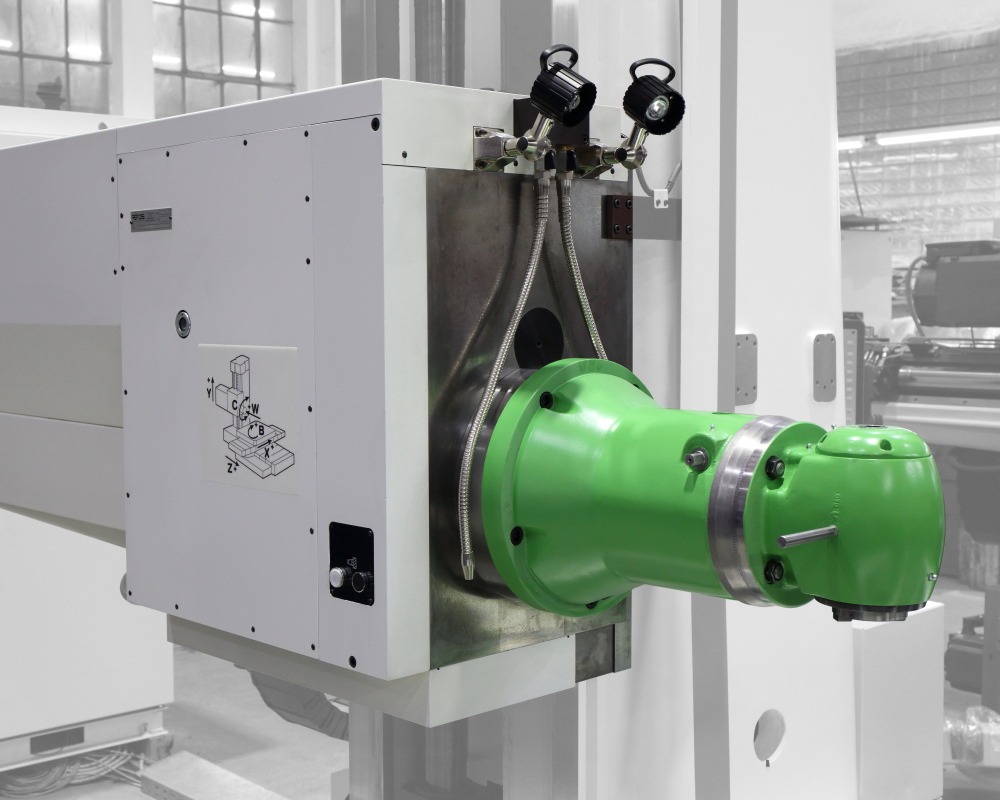

VERTICAL MILLING HEAD

Request

The FP40-10 milling head can be used to mill in planes parallel to the machine's workspindle axis and to bore in planes vertical to the workspindle axis.

The milling head is mounted on the front side of the head stock (centering diameter of spindle bearing bushing) manually.

The milling head is positioned manually.

Main Parameters

Clamping taper 40 ISO
Tool shank 2080 DIN
Max. speed (achievable on the RET10X, RET10P, RET100B) 900 rpm
Max. permissible transmitted power 10 kW
Max. permissible torque on the spindle 250 Nm
Speed transmission from machine spindle to milling head spindle 1:01
Rotatability of the rotatable milling head parts 360 deg
Total weight 110 kg
