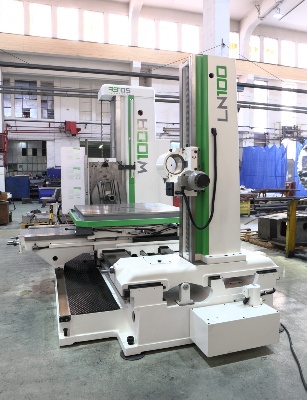

Horizontal boring mills

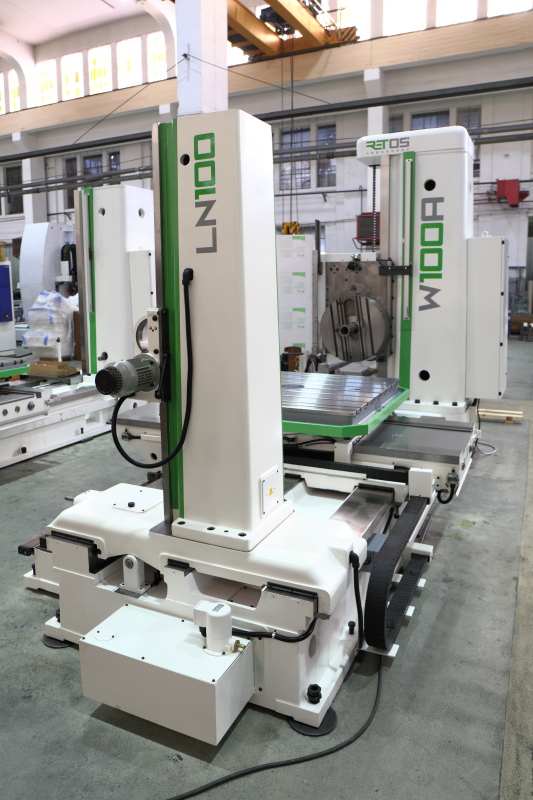

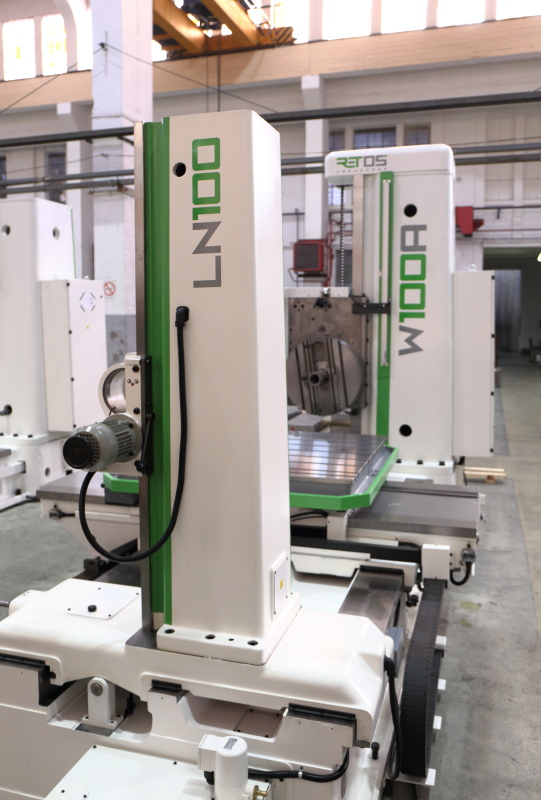

LN100

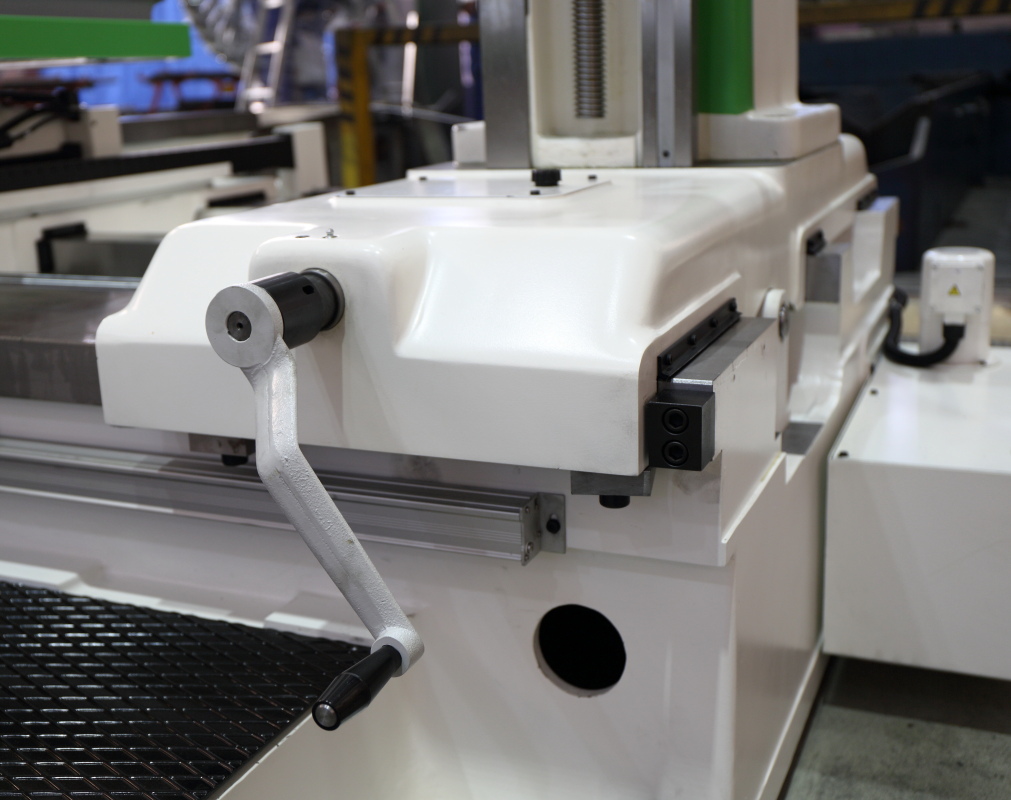

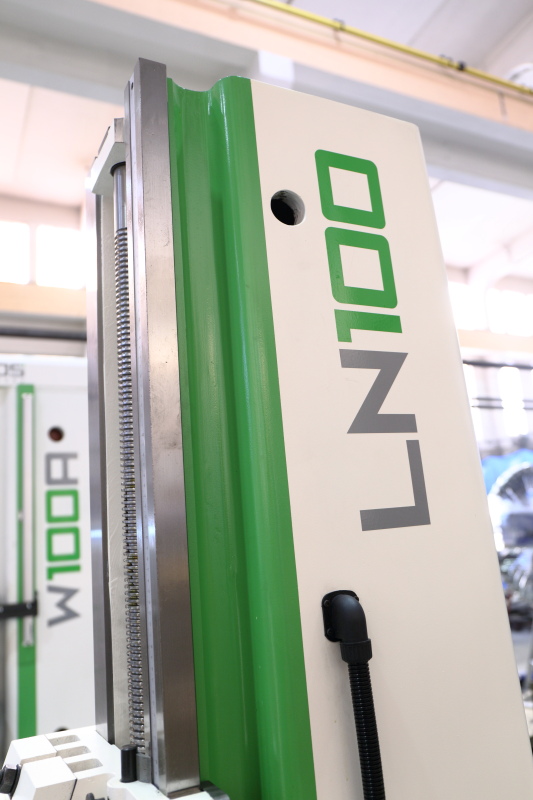

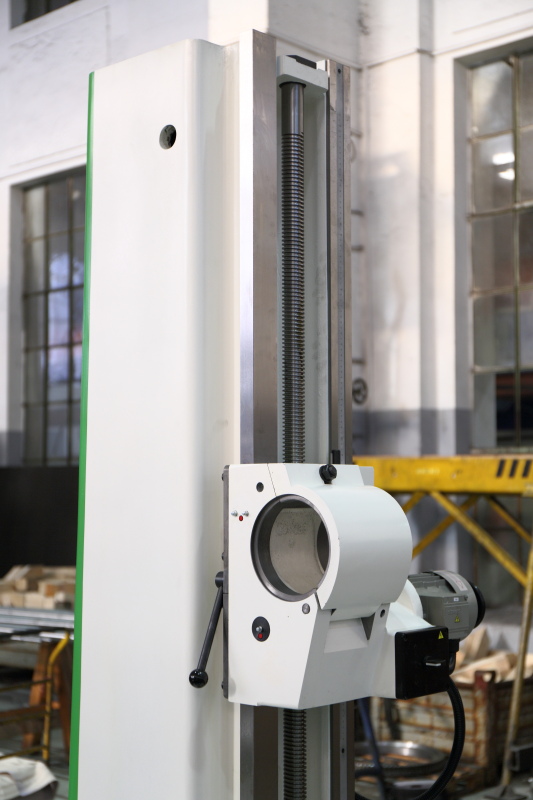

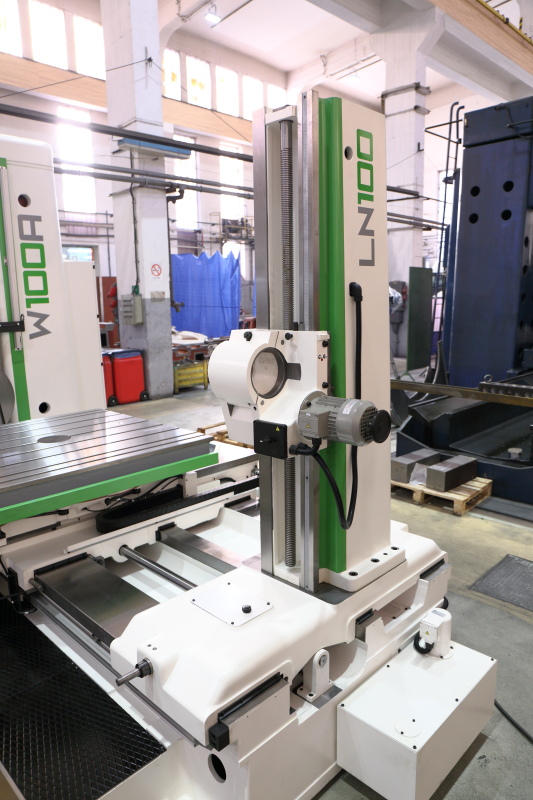

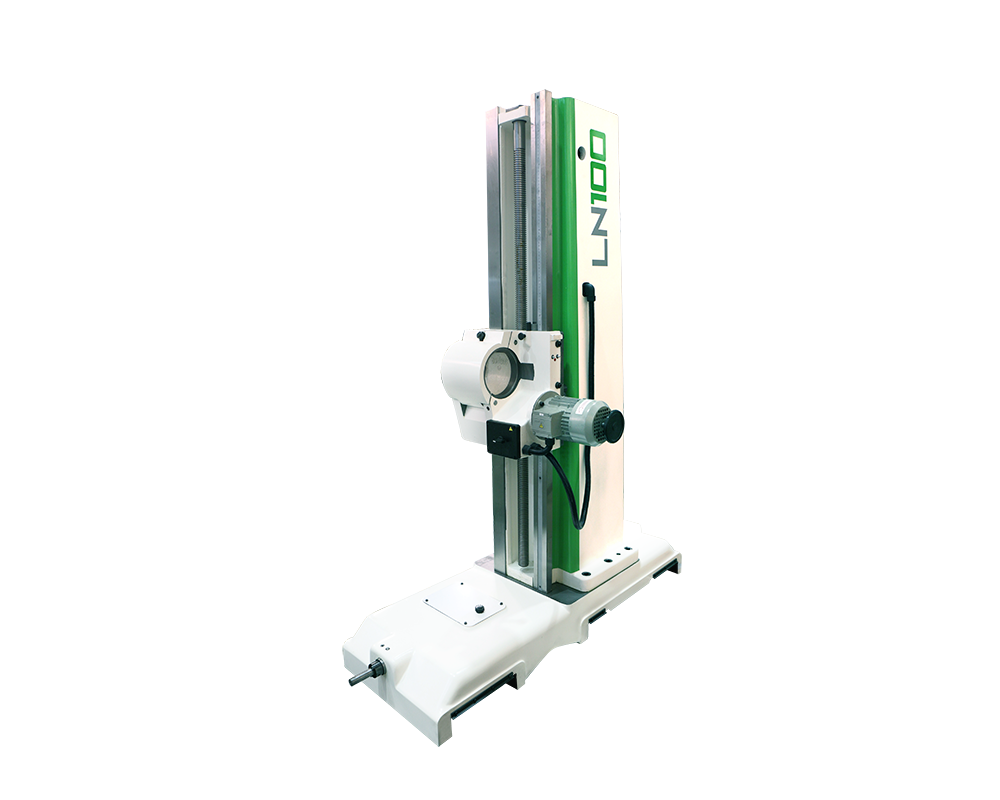

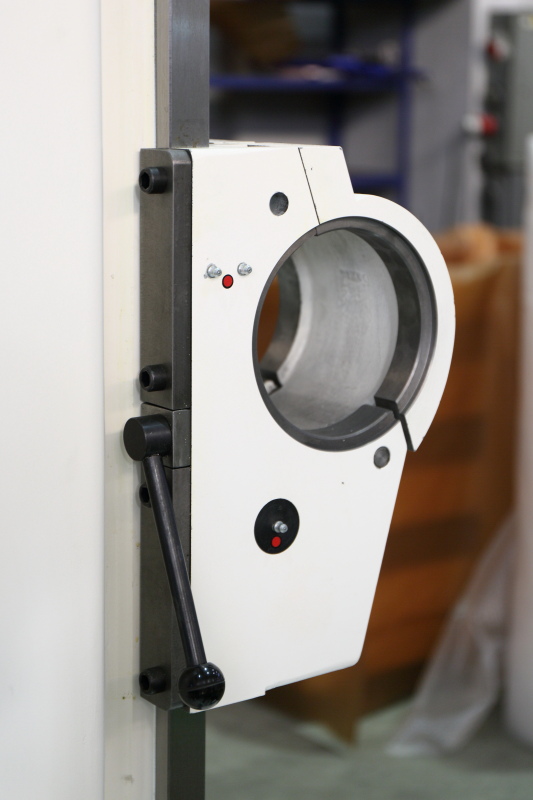

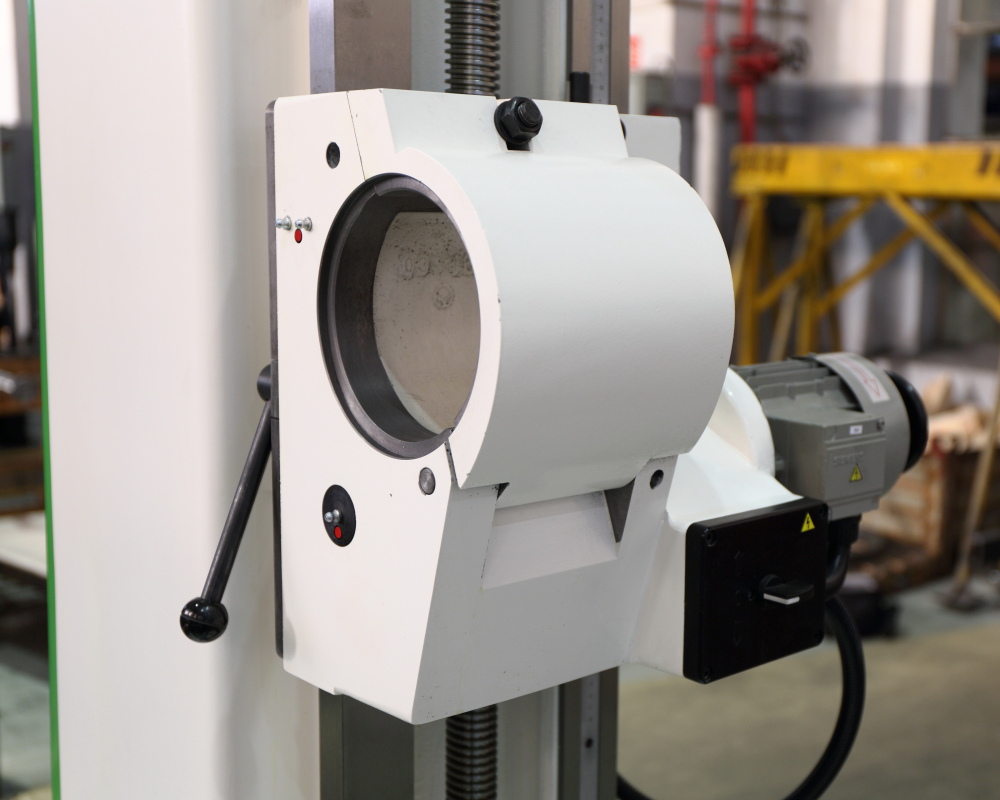

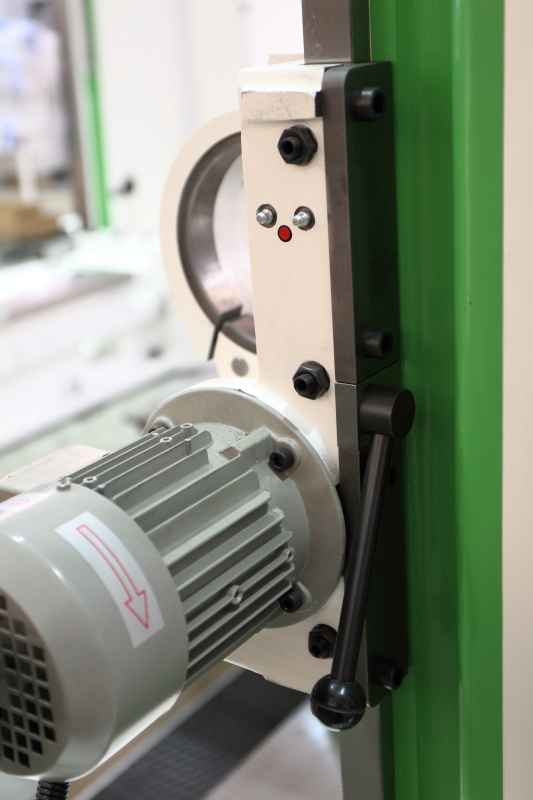

boring bar support (steady rest)

The steady rest is essential for the use of the VT80 and VT100 boring bars.

The use of the steady rest and the boring bars allows you to bore out complicated and deep through holes – meeting the requirements for maximum precision and axial alignment.

The steady rest can only be fitted to a machine in a version with a long bed and remains installed permanently.

MAIN PARAMETERS

From hollow spindle face to steady rest bearing 2800mm

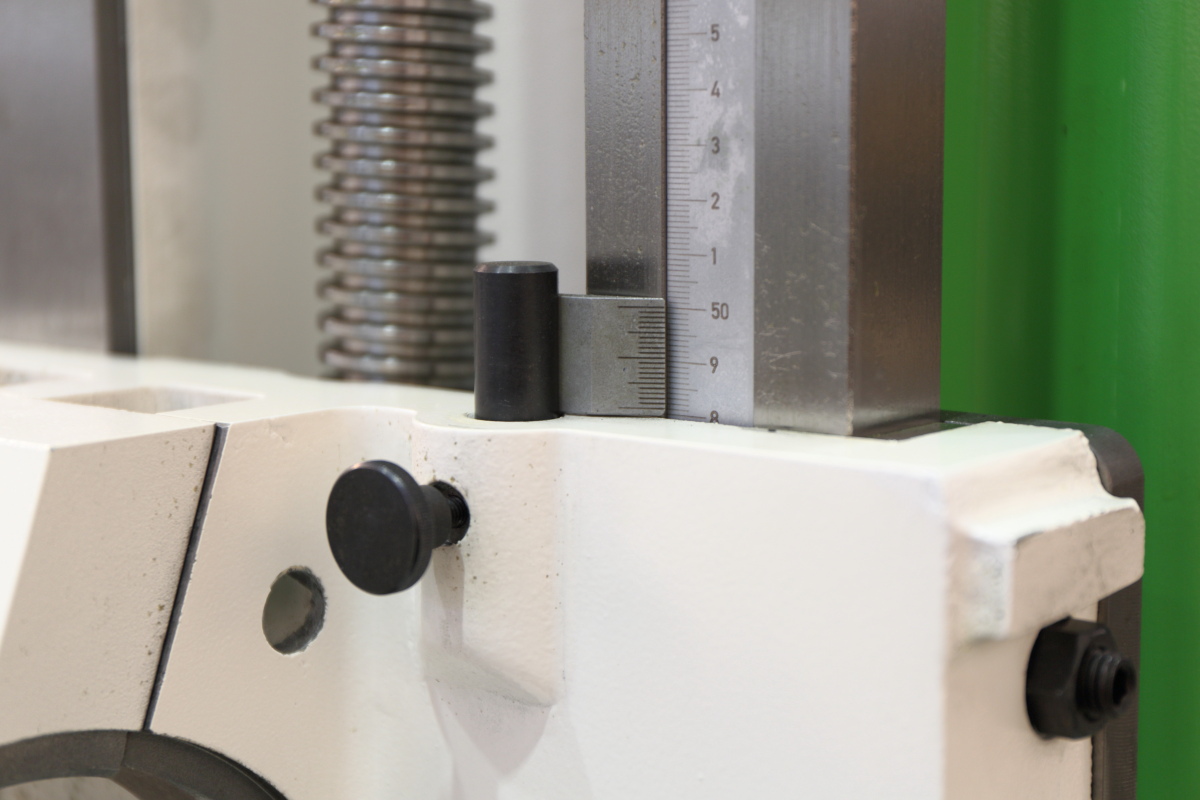

Bearing axis height above table0 - 1120mm
Rapid traverse of bearing696mm / min
Bearing bore150 H7mm

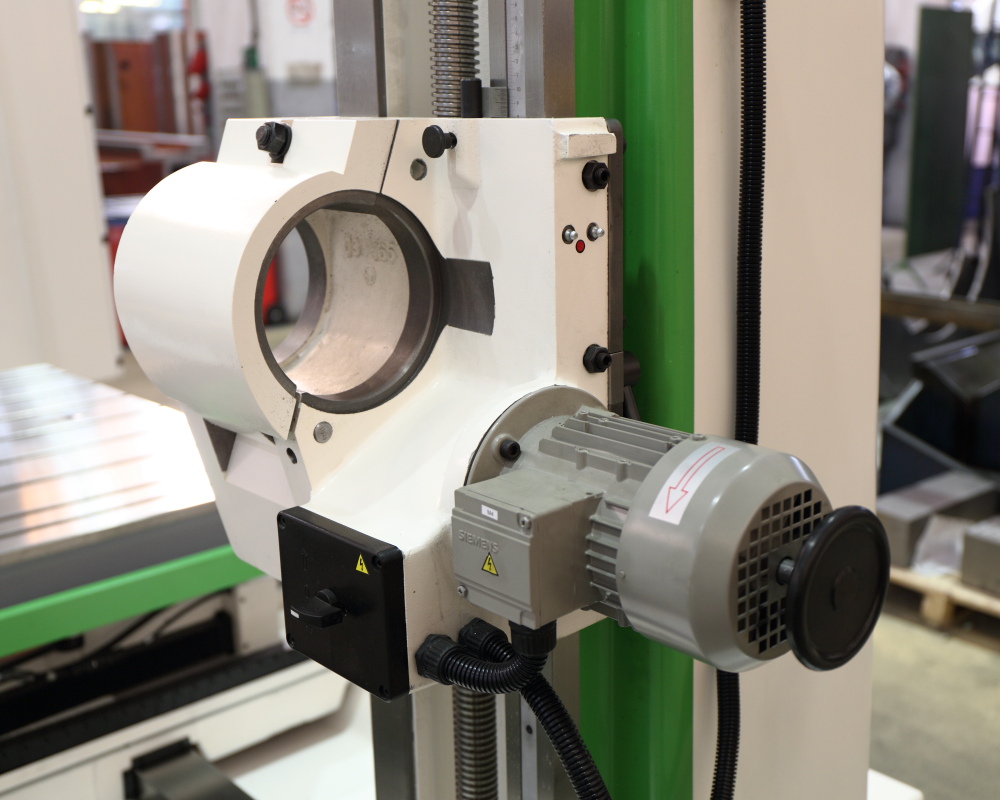

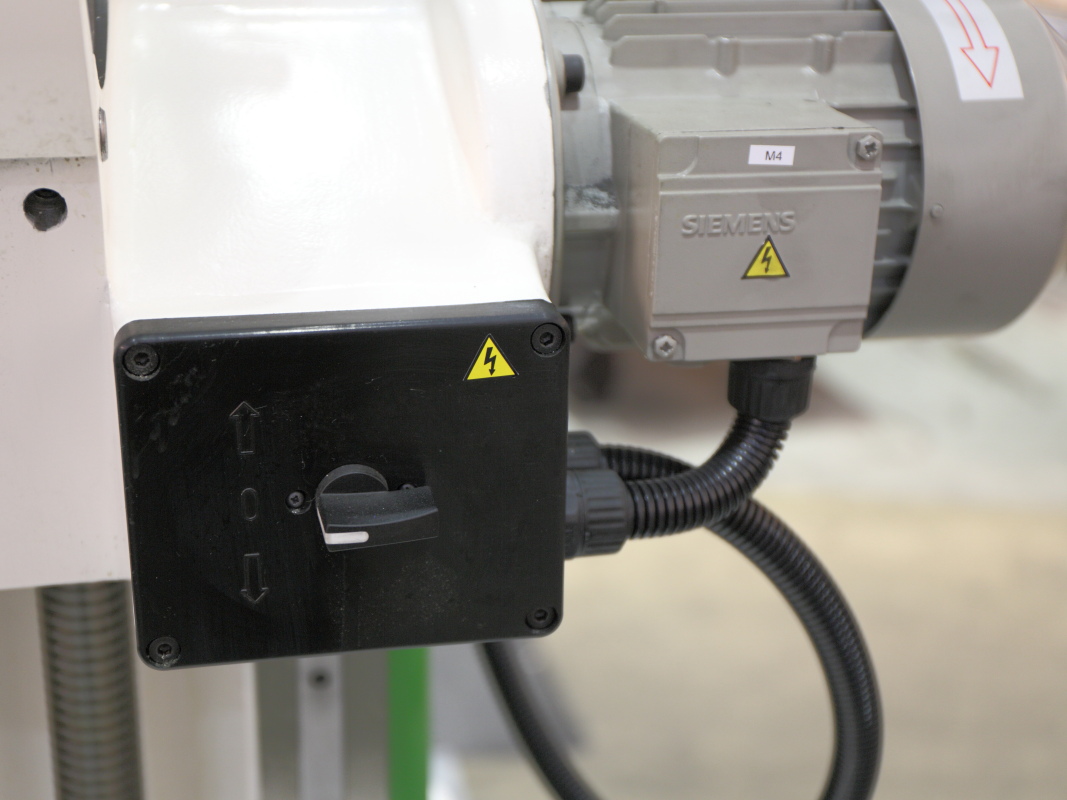

Motor power of steady rest0,55kW
Motor speed of steady rest2780rpm
