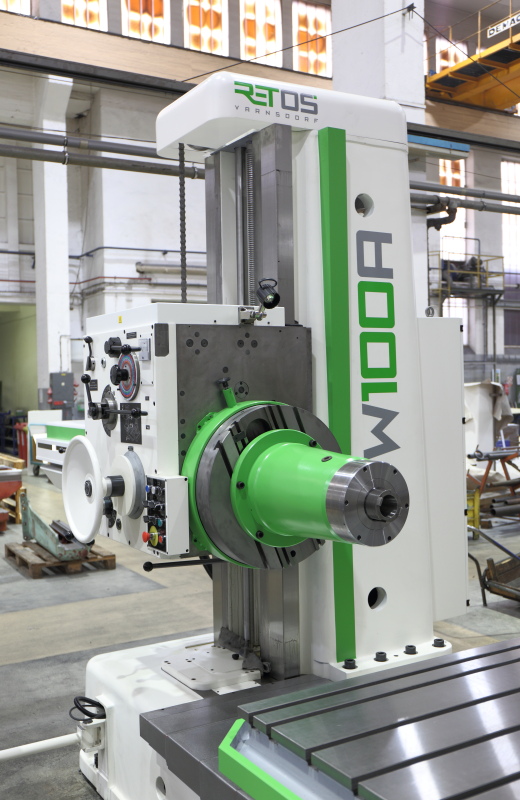

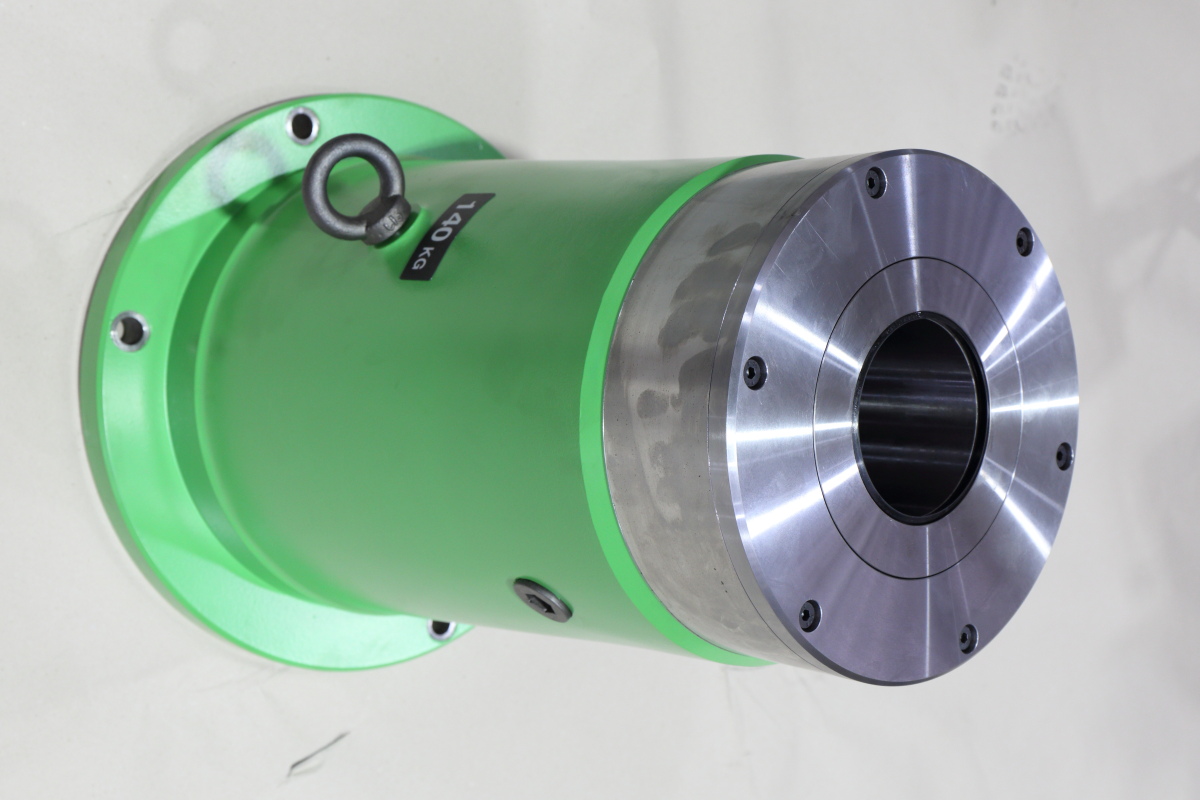

spindle guiding support
The spindle guiding support considerably increases the rigidity of the workspindle bearing and thus also the number of possible spindle applications, especially for high-power or high-precision machining with larger overhangs – using the full workspindle speed range and stroke.

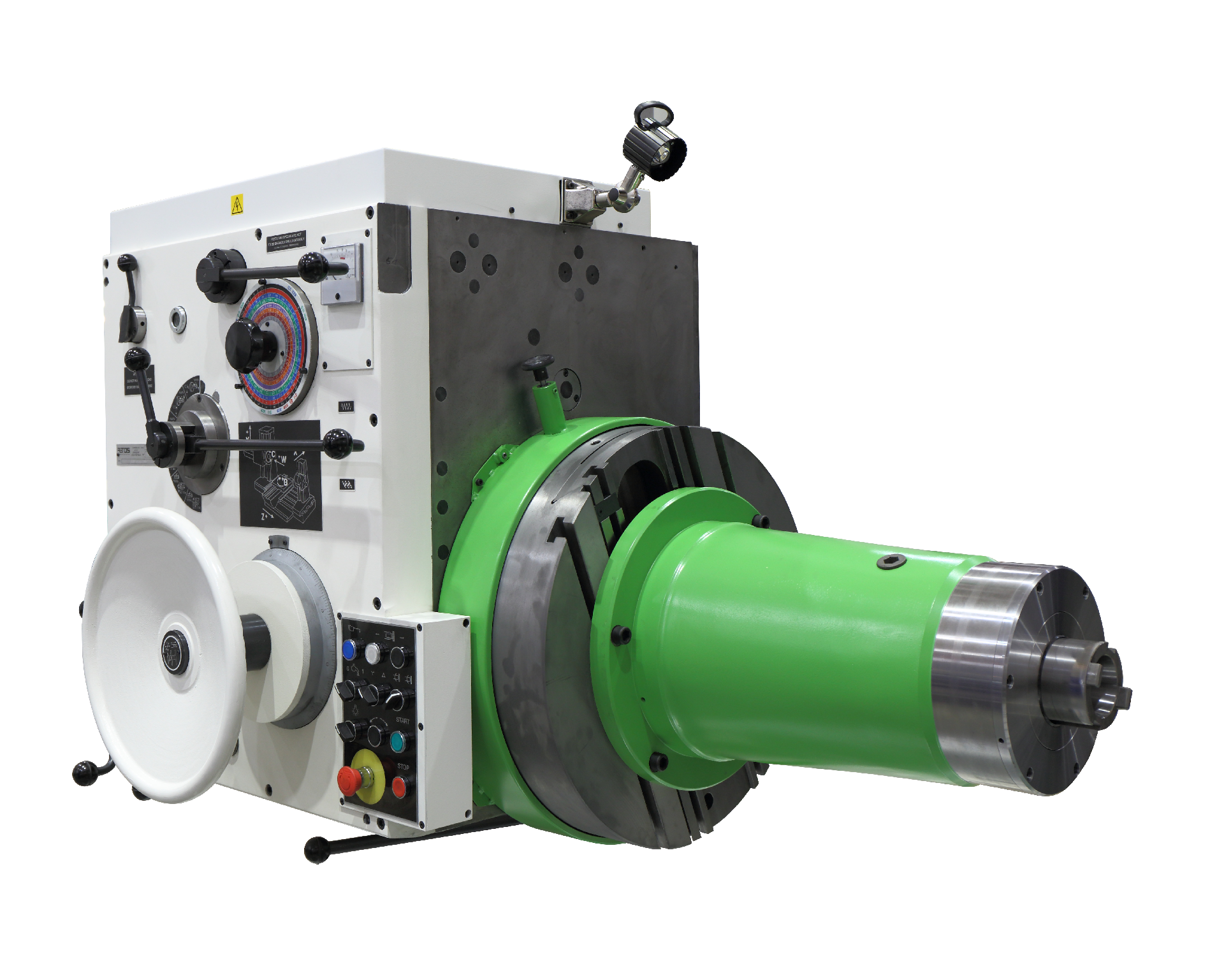

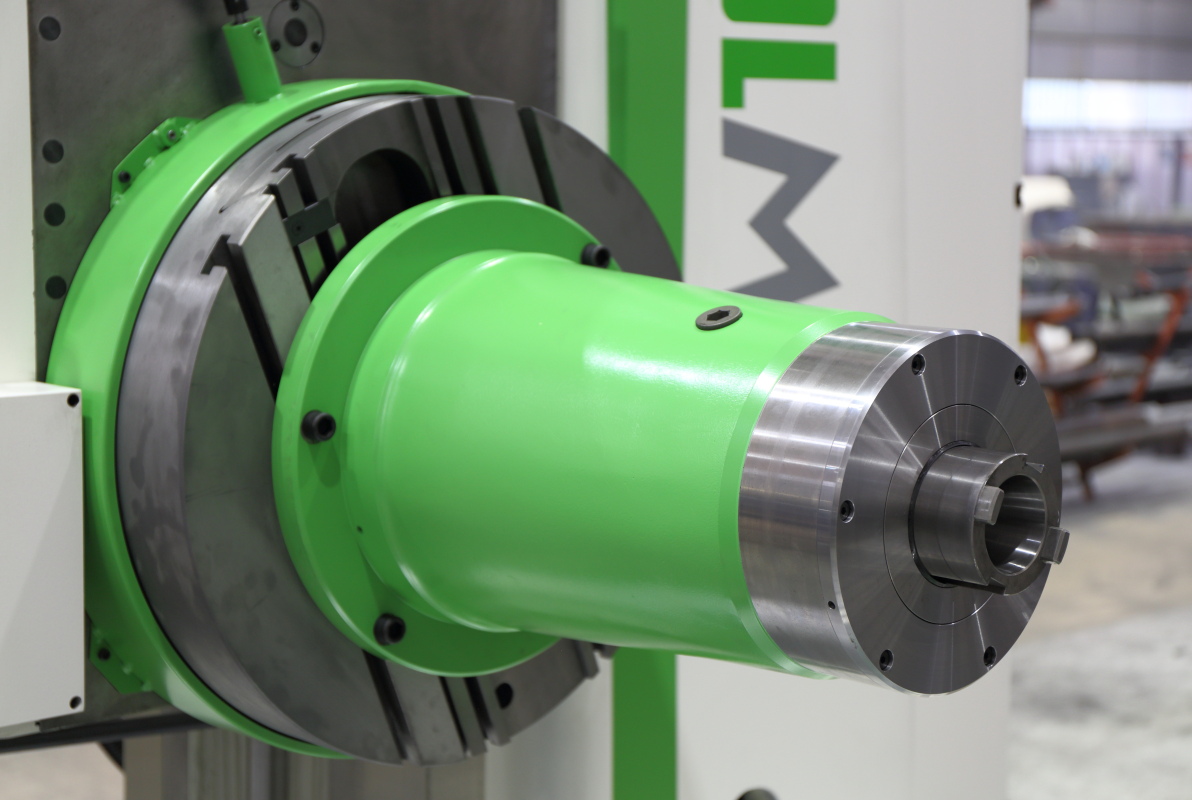

The spindle guiding support is mounted on the front side of the installed facing head of the machine manually.
|Distance between guiding support front and steady rest front||541||mm|
|Total guiding support weight||150||kg|
