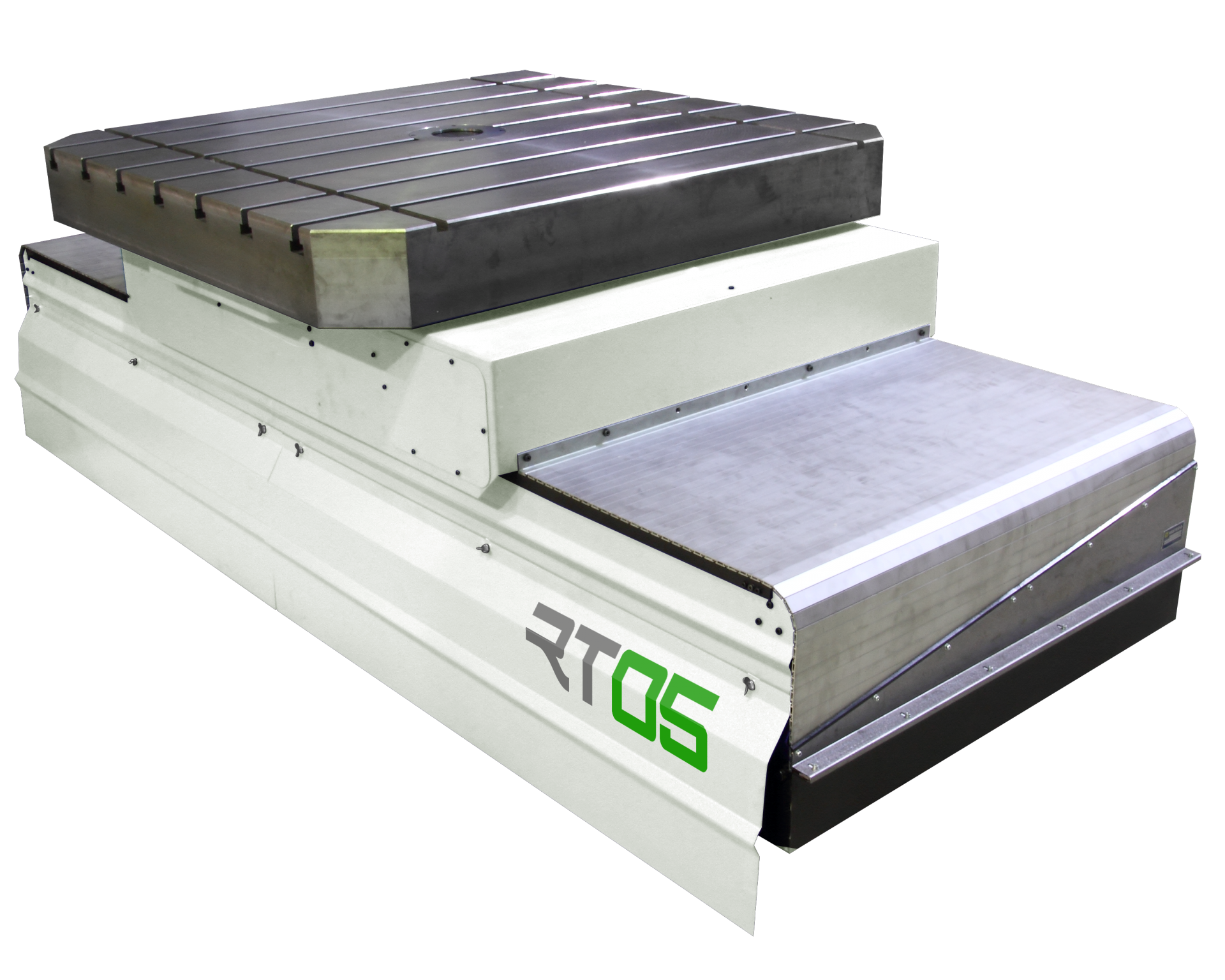

RT05

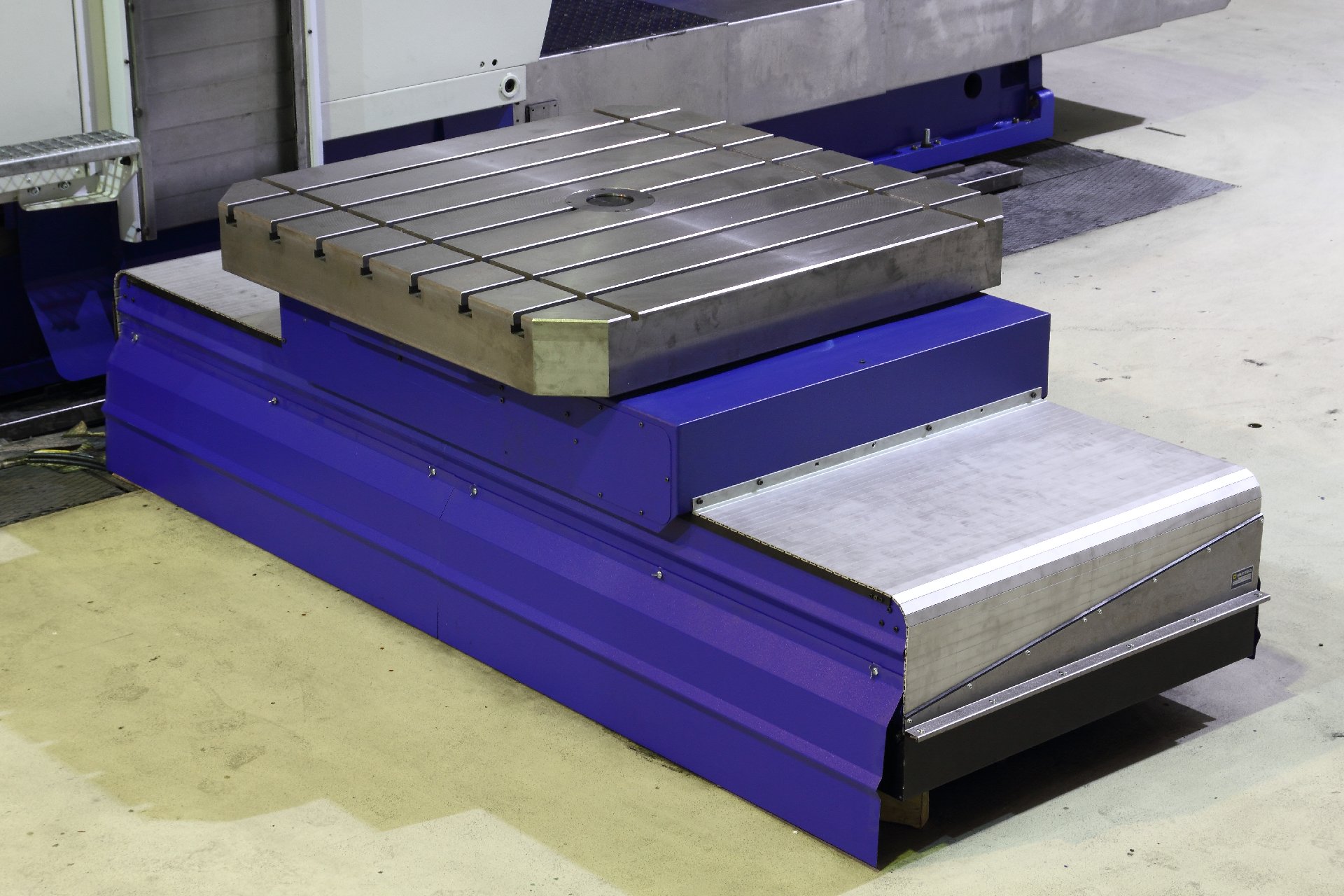

Contouring rotary table

The CNC rotary table of the original construction is designed as an accessories for the RET10P machine or other machine tools. It is planned to integrate the controlling of the table into the controlling system of the machine.

Basic Information

  • contouring rotary table
  • 1 linear axis + rotary table
  • designed as an accessories of the technological sites mainly of the floor type horizontal boring mills
  • optimized for RET10P machine
  • serves for clamping and positioning of the workpieces as option or complement of the clamping plate
  • enlarges the technological capabilities of the machine
  • it is a separate unit and it is not fixed to the machine
  • it is electrically, on the level of the control system and electrocabinet, fully integrated into the configuration of the machine

Main Parameters

Table loading capacity – rotation 5000 kg
Table loading capacity – static 8000 kg
Table clamping surface 1250 x 1250 mm x mm
1500 x 1500 mm x mm
Width of T-slots 22 H8 mm
Centering hole diameter 100 H7 mm
V…longitudinal travel of table 1000 / 1500 mm
Feeds…V – manual mode 4 - 500 mm / min
Feeds…V – automatic mode 4 - 10000 mm / min
Rapid traverse...V 20000 mm / min
Feeds of table rotation…B 0 - 5 rpm
Rapid traverse of table rotation…B 10 rpm
Table weight 4000 - 5500 kg
Basic dimensions – length 2600 / 3200 mm
Basic dimensions – width 1250 / 1500 mm
Basic dimensions – height 850 mm

Detailed Specification

Controlling of the Table

  • all functions of the equipment are controlled via the control panel of the machine

Table Design

Compatibility

  • HEIDENHAIN iTNC 530 HSCI
  • SIEMENS SIN 840D SL

Powered Axes

  • Z – longitudinal travel of slide on bed
  • B – table rotation

Table Capabilities

  • complements the machine moveable groups of 2 fully CNC powered axes
  • enables cylindrical interpolation

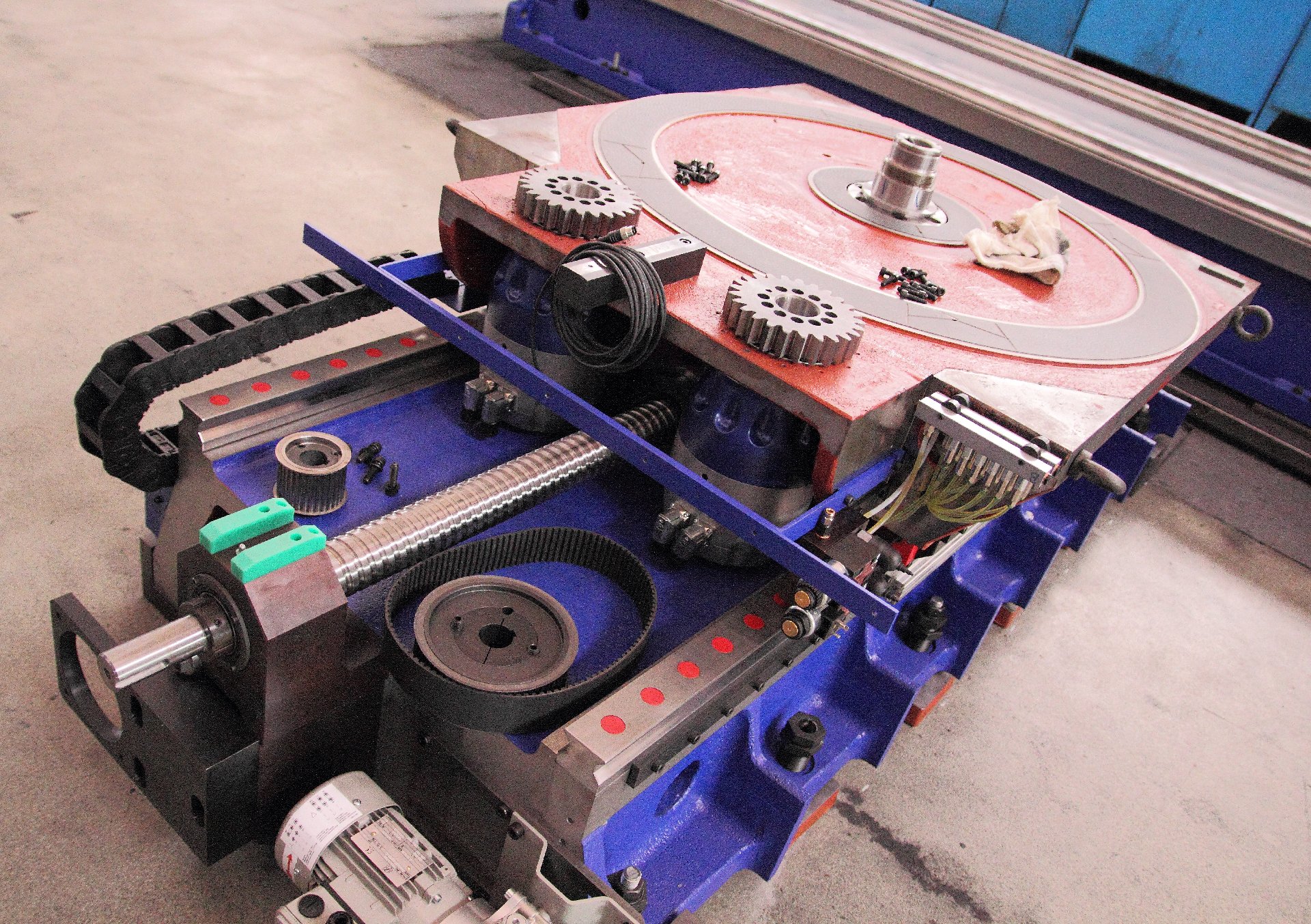

Kinematics of the Z Axis

  • brushless digital servomotor with servo-drive
  • clearance-free gearing of the timing belt
  • ball screw

Kinematics of the B Axis

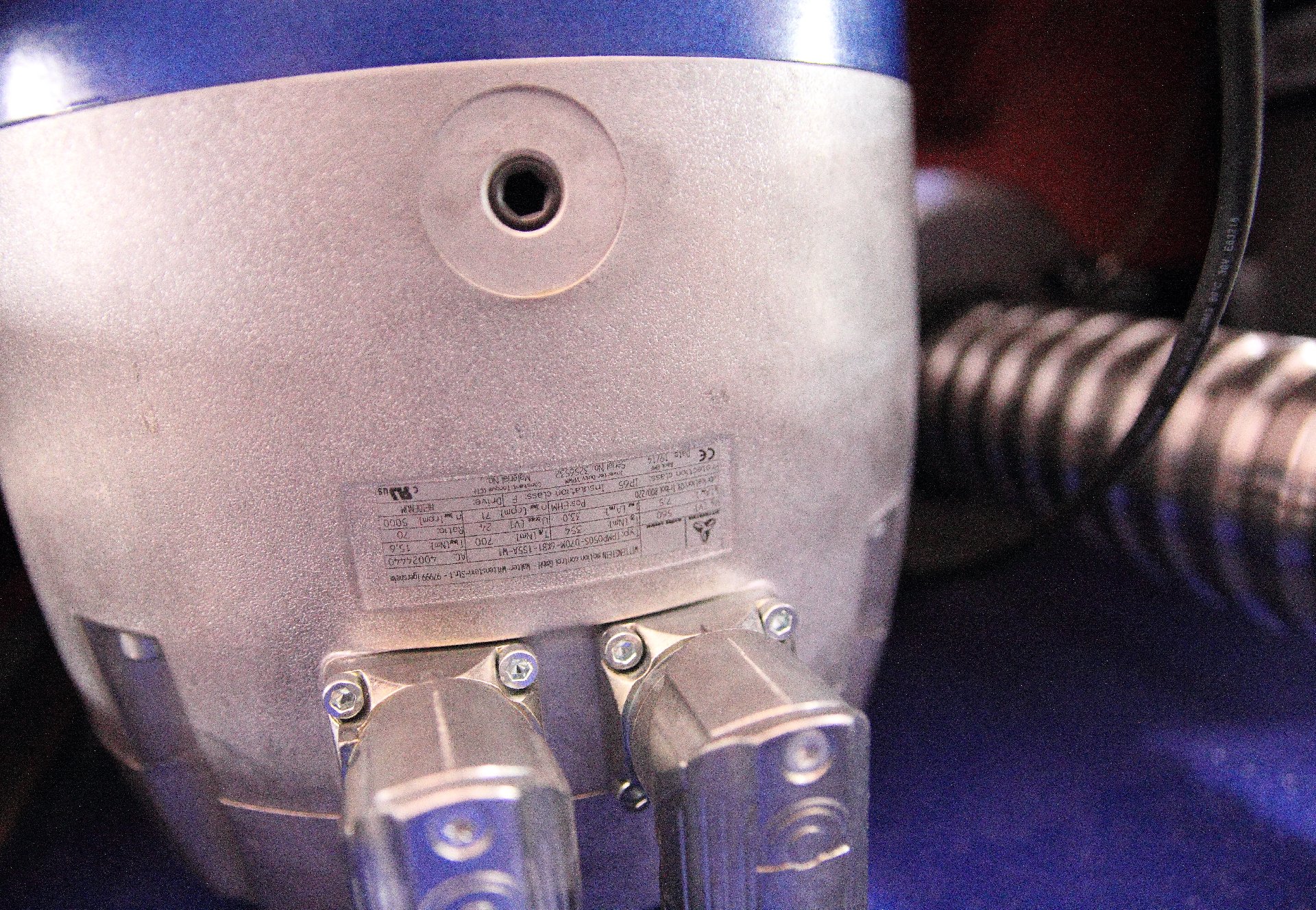

  • 2 brushless digital servomotors with inbuilt gearbox with servo-drive (master/slave)
  • gear ring

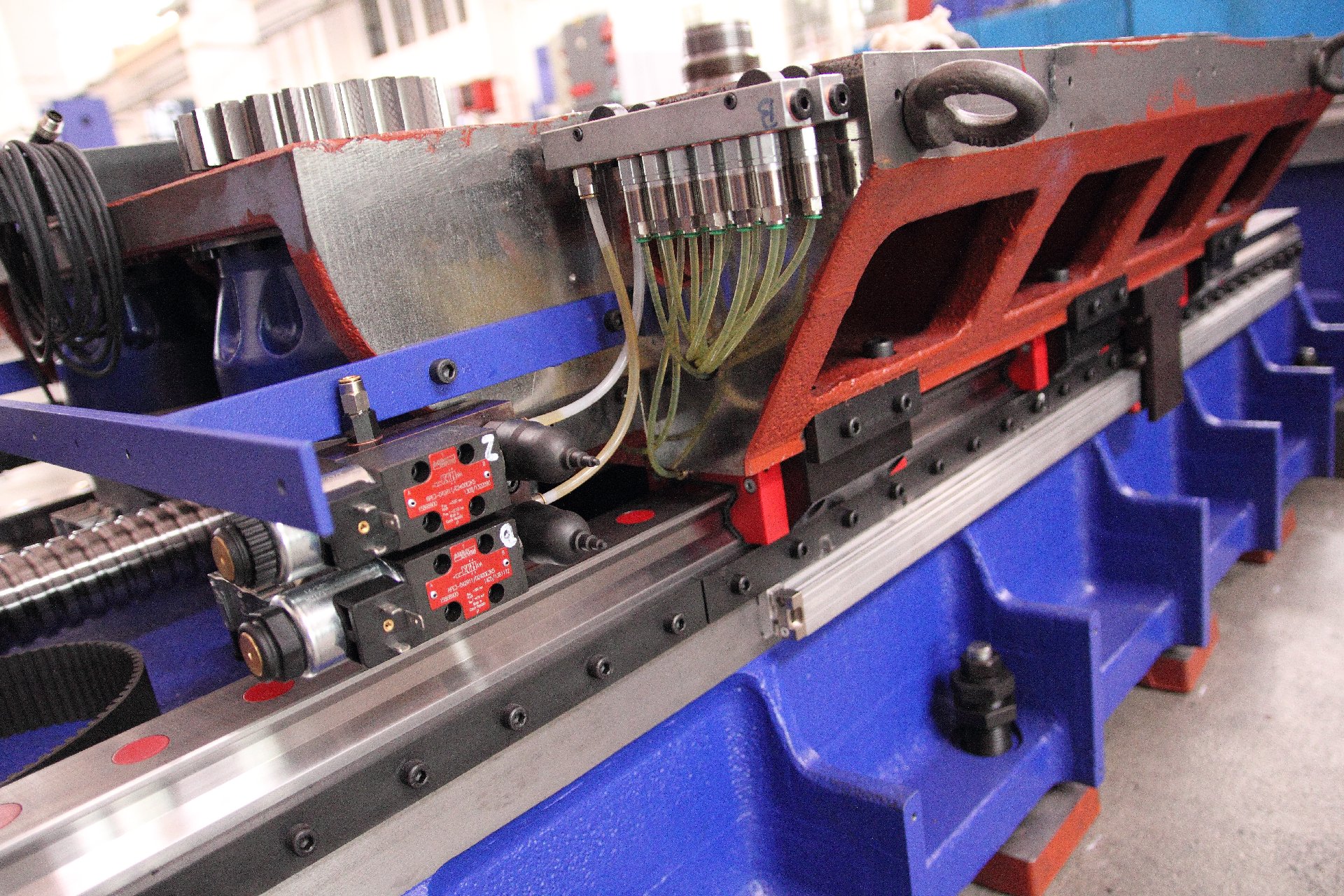

Group Guidance

  • Z axis – rolling guideways
  • B axis – sliding guideway, TURCITE, scraped

Lubrication

  • central, axial lubrication
  • frequency of lubrication cycles correlates to travelled track of a particular group

Clamping

  • Z, B axes – not clamped – positional feedback

Hydraulic Power Pack

  • HYTOS lubrication set – lubrication of all axes

Admeasurement of Position

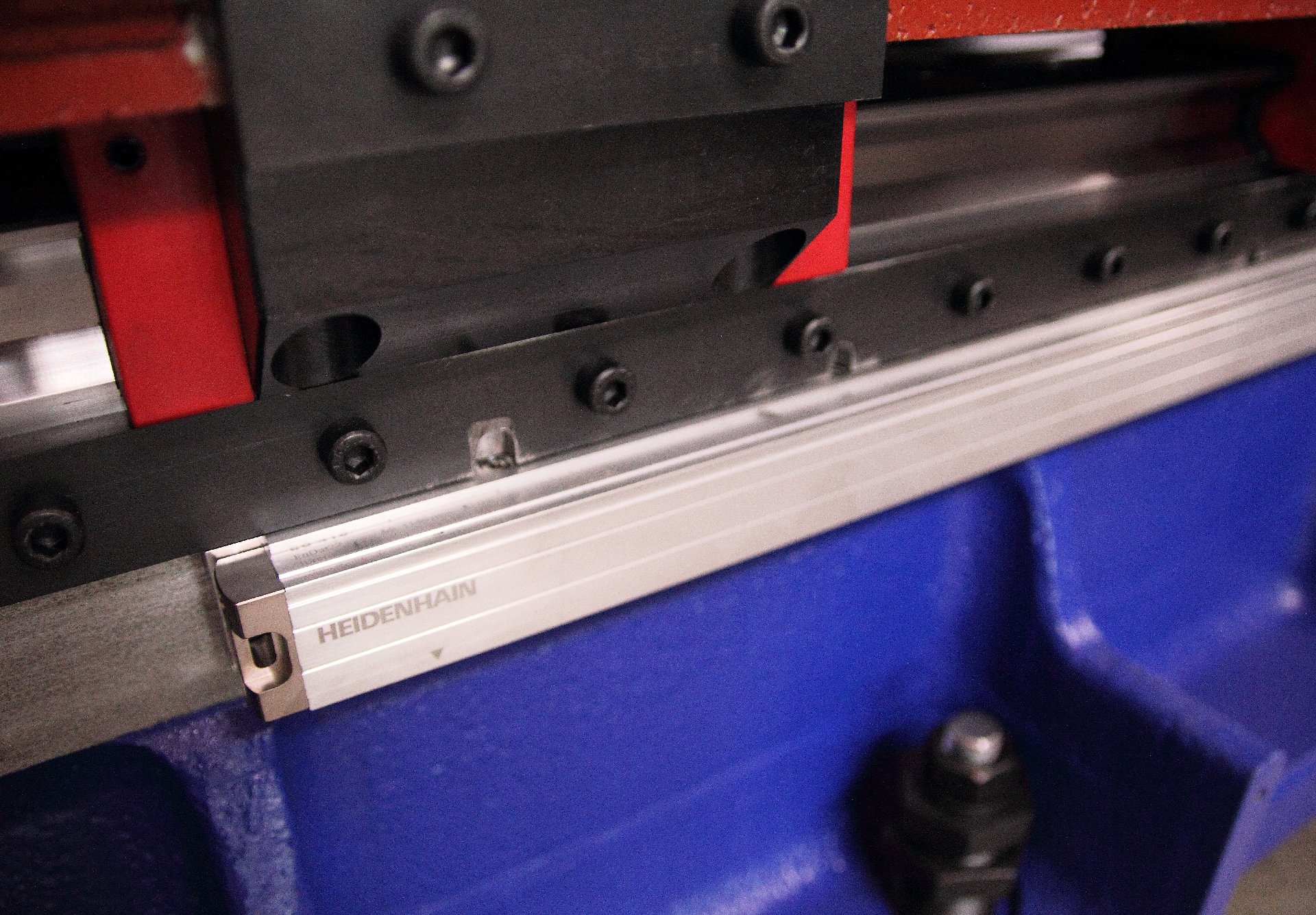

  • HEIDENHAIN digital optical admeasuring
  • Z axis – absolute linear encoder
  • B axis – absolute angle encoder

Energy Distribution

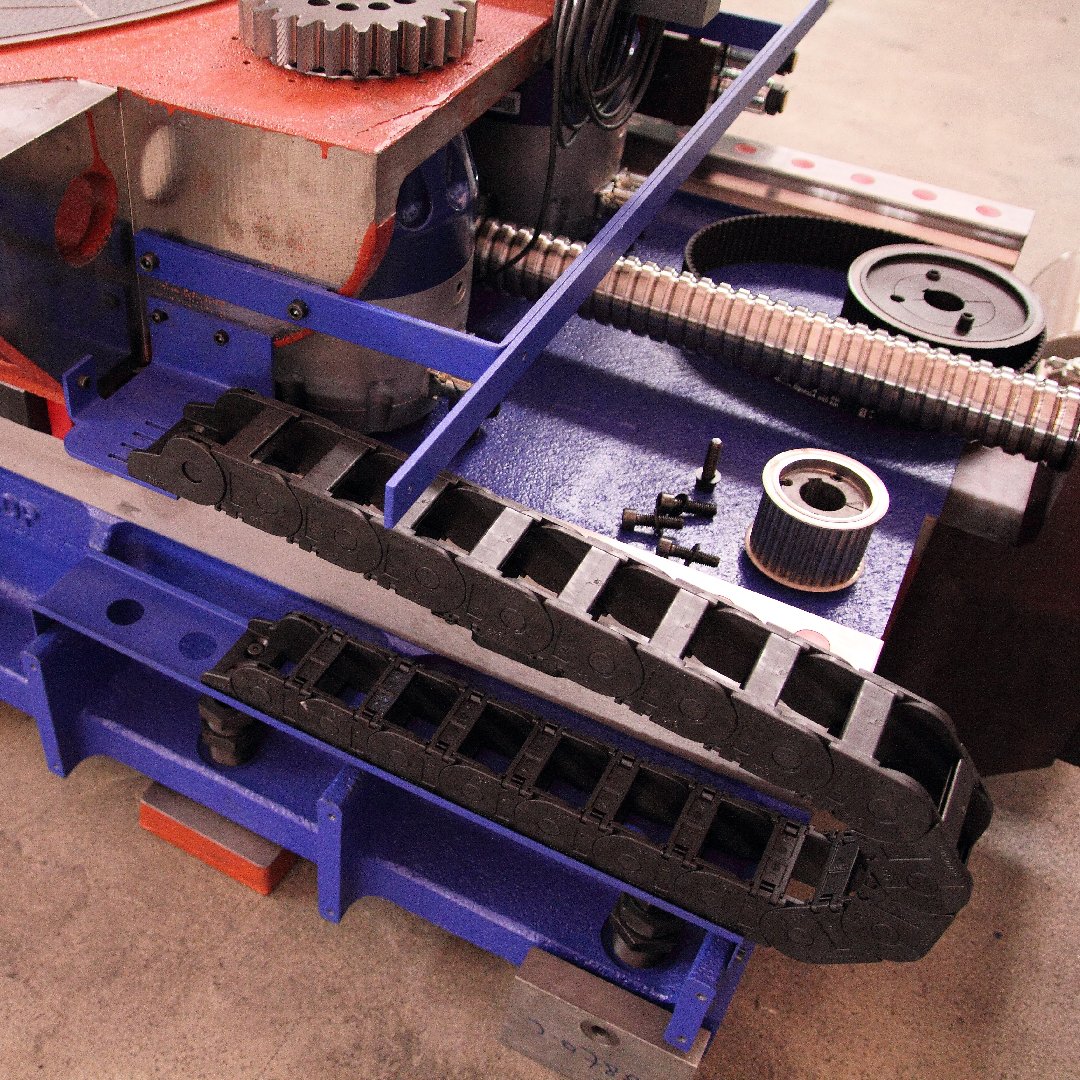

  • IGUS chain energy carrier

Coverage

  • Z axis – complete coverage of the group
  • B axis – complete coverage of the guideways and the drive

CE – valid only for the European Union

  • table is integrated into the safety system of the machine according to the applicable legislation and technical standards



Table design can be customized.

Accessories

Standardly Delivered Accessories

  • KM anchoring kit
  • basic tool kit for operation and maintenance
  • basic spares kit
  • technical documentation

Optional Accessories

  • UK500 clamping cube
  • UU800, UU950, UU1120 clamping angle plates
  • spares kit for 3-year operation
