Horizontal boring mills

SP100/800

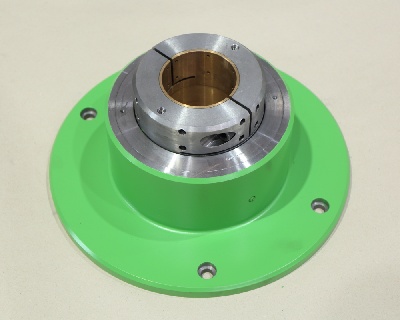

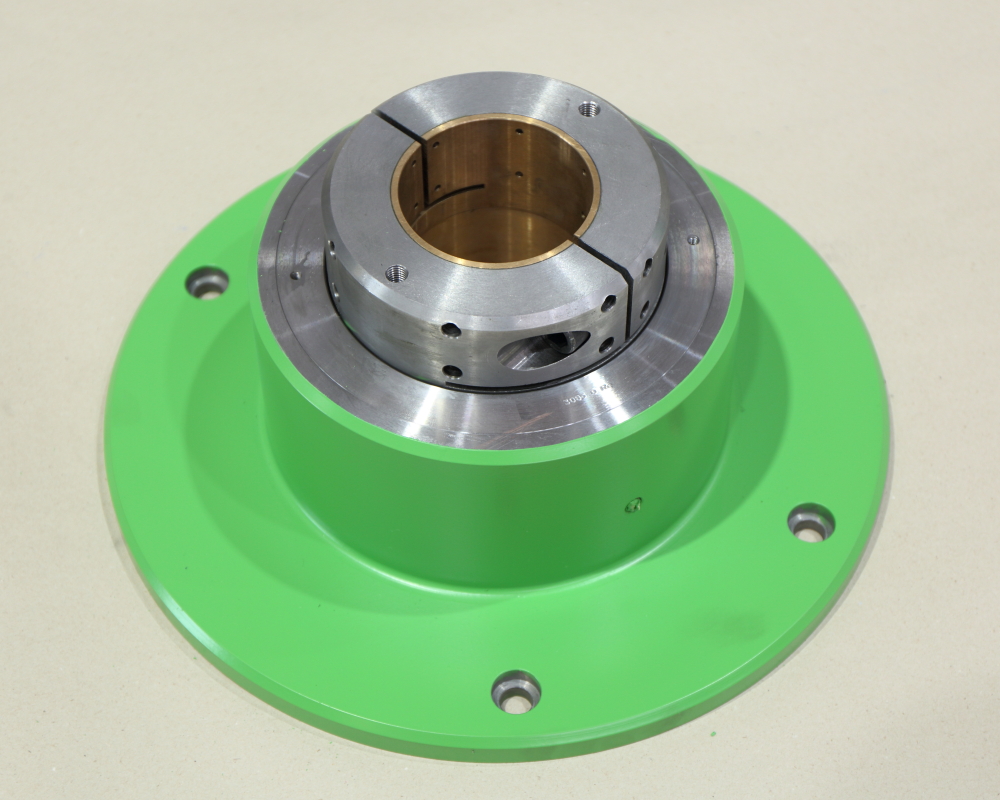

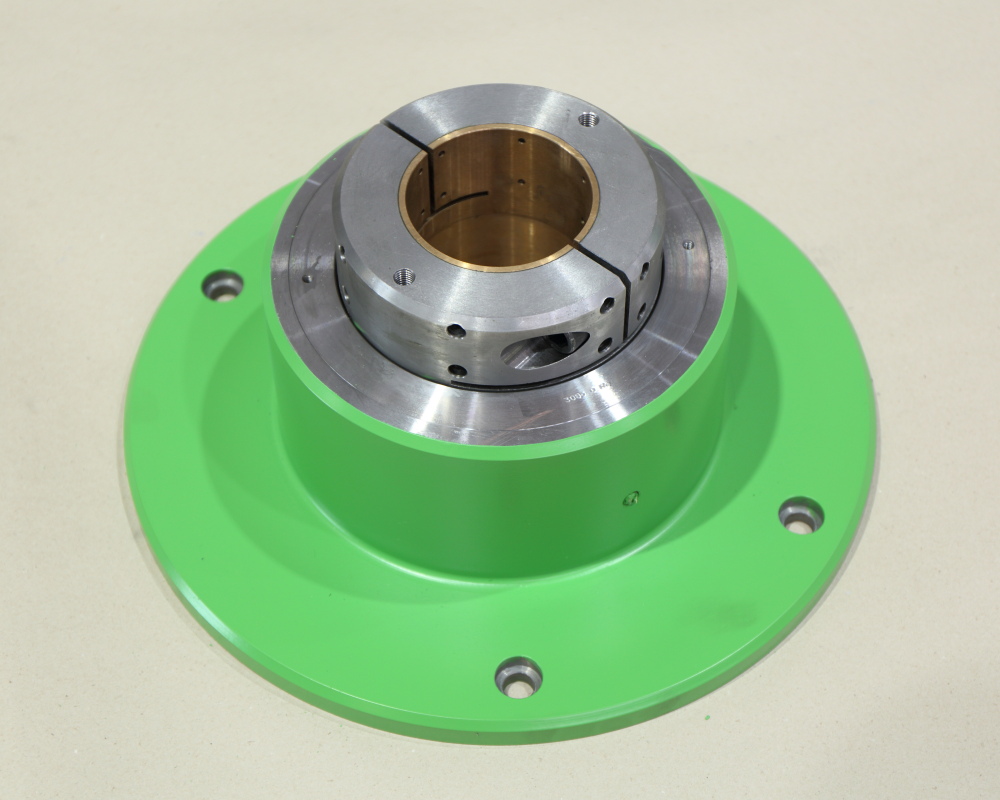

spindle clamping support

The SP100/800 spindle clamping support increases the rigidity of the workspindle bearing. Thus, with a fixed spindle stroke in the W axis of over 200 mm, the machining parameters can be raised, while the spindle speed range is slightly reduced.

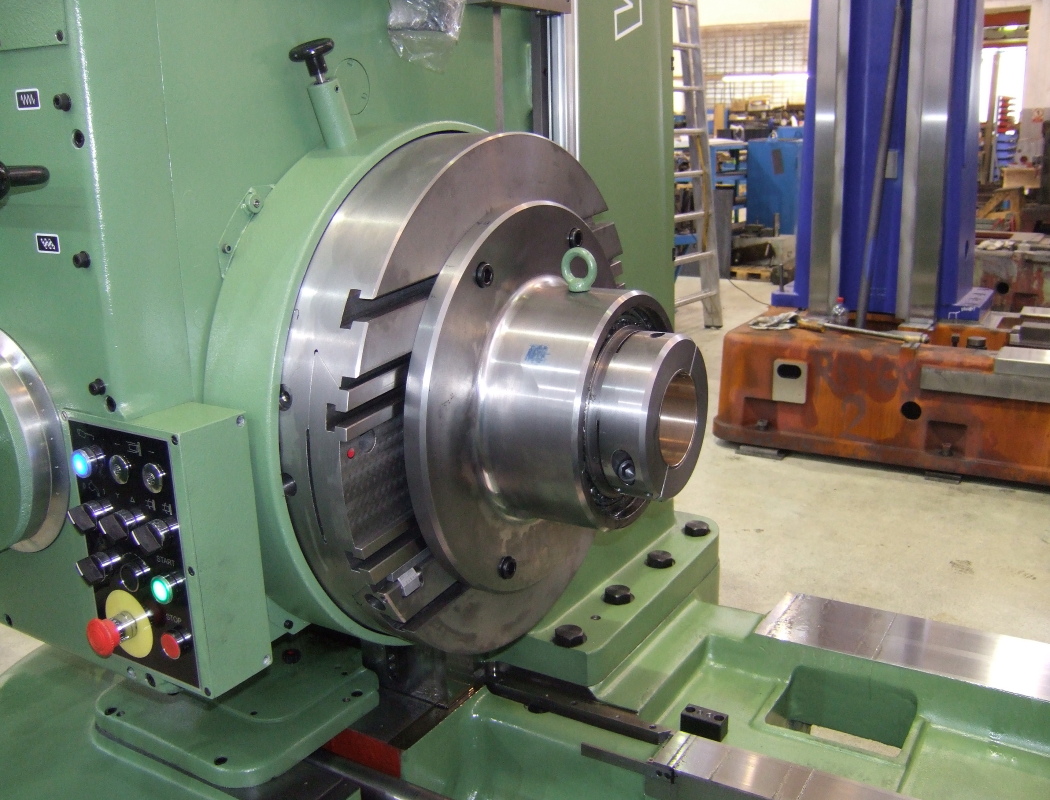

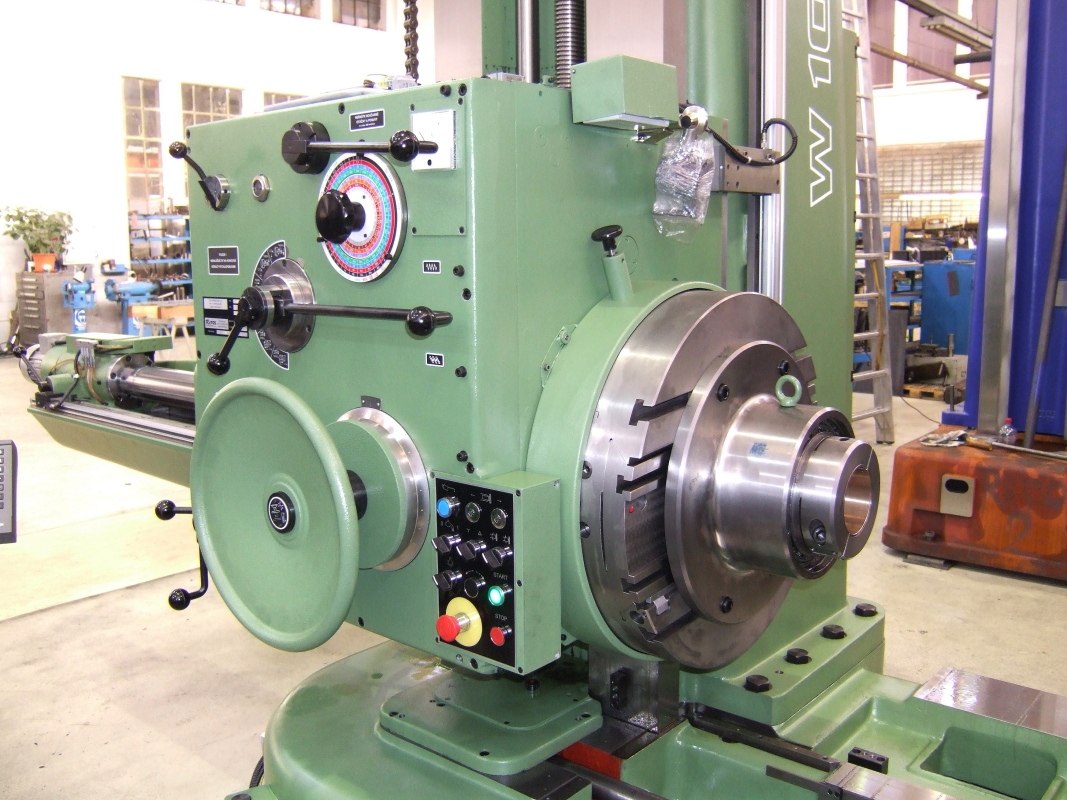

The spindle clamping support is mounted on the front side of the installed facing head of the machine manually.

MAIN PARAMETERS

Distance between clamping support front and steady rest front 196mm
Max. permissible workspindle speed800rpm
Total clamping support weight60kg
