MT03

rotary table

Brochure

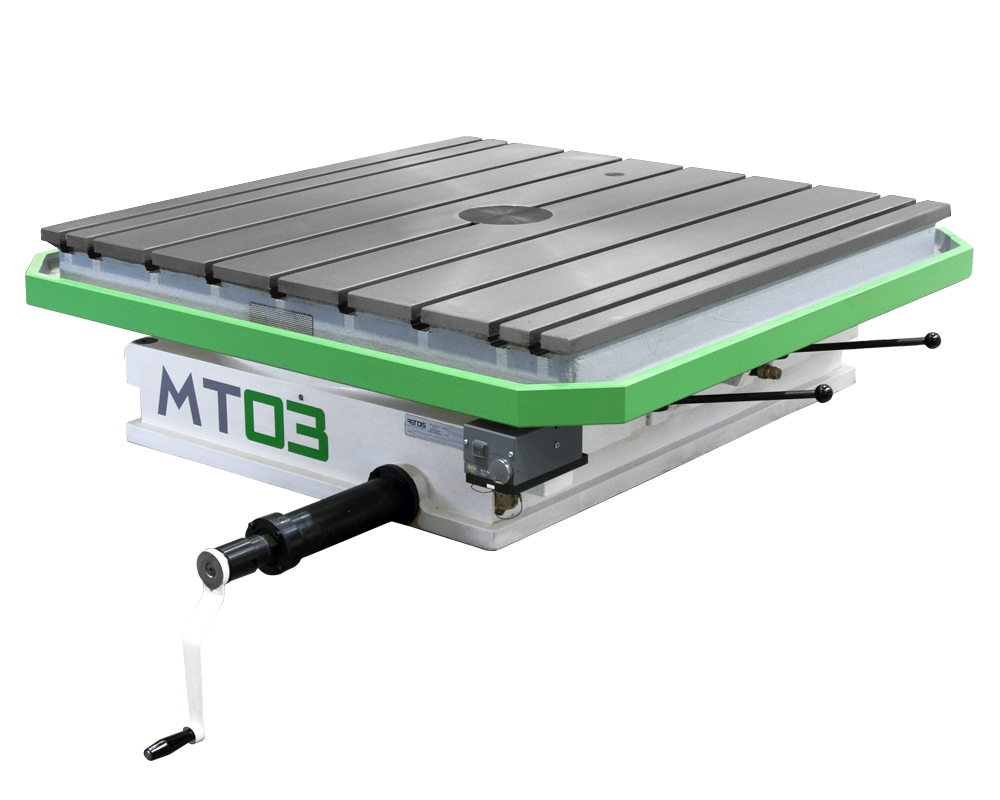

MT03 rotary table is an optional technological accessory for the RET10P and HP100 floor type horizontal boring and milling machines.

This rotary table is used as a secondary horizontal clamping surface for workpiece clamping and positioning in vertical axis. Table positioning is performed maunally.

The clamping is performed on the main machine clamping surface (clamping plate).

MT03 rotary table is set with a lifting device and fastened via T-slots and standardized clamps manually.

Main Parameters

Table clamping surface 1250 x 1250 mm x mm
1500 x 1500 mm x mm
Width of T-slots 22 H8 mm
Table loading capacity – 1250 x 1250 3000 kg
Table loading capacity – 1500 x 1500 2500 kg
Centering hole diameter 180 H6 /10 mm
Table drive ratio 1,41 deg / rev
Voltage 230 V
Table weight 1800 kg
Basic dimensions – length 1800 mm
Basic dimensions – width 1400 / 1650 mm
Basic dimensions – height 400 mm

Specification

Main components are high-quality grey iron castings with reinforcement ribs for high stiffness.

Travelling groups

  • 1 nonlinear axis – B – table rotation

Kinematics

  • hand crank
  • it can be driven by using a hand drill with a driving bit
  • gear set +  ring gear

Group Guidance

  • guideways of the rotary table are scraped

Lubrication

  • lubrication of the kinematics and the guideways is derived from the rotation of the driving shaft – pump
  • central lubrication, connection to the lubrication system of the machine (optional)

Clamping

  • manually by levers

Position Measurement

  • PZI version – preparation for additional installation of rotary encoder and DRO
  • 4x90° optical readout
  • HEIDENHAIN position measurement (optional) – incremental rotary encoder + ND 280 DRO

CE – valid only for the European Union

  • the table is supposed to be integrated into the safety system of the technological site (machine) according to the applicable legislation and technical standards



The table design can be customized.

Accessories

Standardly Delivered Accessories

  • basic tool kit for operation and maintenance
  • basic spares kit
  • technical documentation including an operating manual

Optional Accessories

  • UK500, UK 1000 clamping cube
  • UU800, UU950, UU1120 clamping angle plates
  • spares kit for 3-year operation
