WFQ80CNC, OVERHAUL 2008 | 1.3.2024

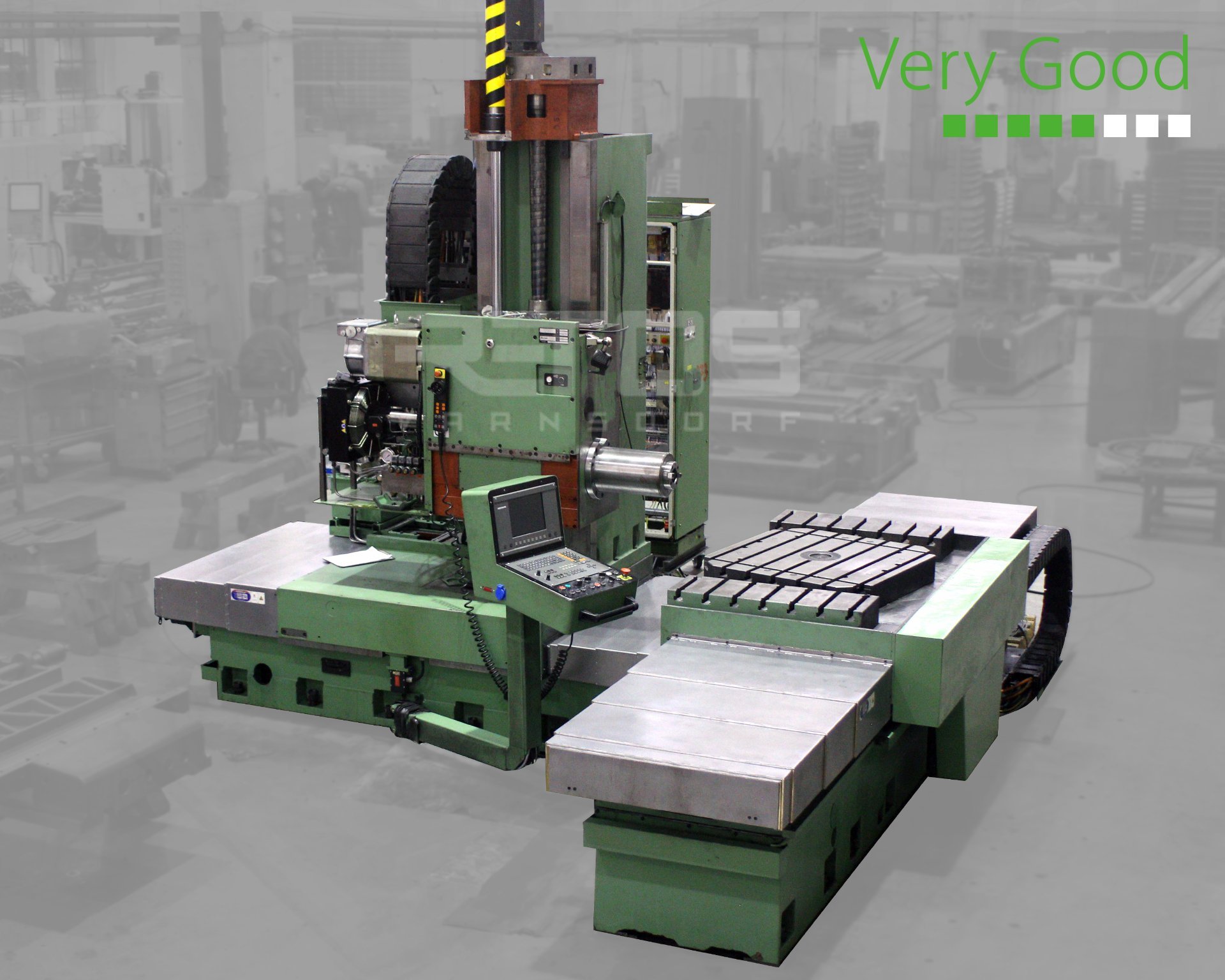

■ T-TYPE HORIZONTAL BORING MILL
■ PRODUCER: TOS VARNSDORF
■ OVERHAUL YEAR: 2008 (RETOS)
■ CONDITION: USED, VERY GOOD
■ WARRANTY: YES
■ IN STOCK
SPECIFICATION
■ Heidenhain TNC426 control system with handwheel HR410
■ SIEMENS motors and drives
■ operator housing against swarf and water
■ magnetic swarf conveying system
SCOPE OF REPAIR 2024
■ cleaning, revision and technical inspection
■ replacement of Heidenhain TNC426 control system
■ refurbish of electrical cabinet
■ exchange of damaged cables
■ repair of control panel
■ complete machine geometry repair (geometric accuracy protocol on request)
■ revision of drives (new ball screw bearings X+Z)
■ revision of headstock
■ revision of hydraulic power pac
■ revision of lubrication and clamping
■ new telescopic covers
MAIN PARAMETERS
| Workspindle diameter | 128.57 | mm |
| Clamping taper | 50 | ISO |
| Spindle speed range | 3500 | rpm |
| Table transversal travel (X) | 1600 | mm |
| Headstock travel (Y) | 920 | mm |
| Table longitudinal travel (Z) | 950 | mm |
| Table clamping surface | 850x850 (850x1600 *) | mm x mm |
| Table loading capacity | 3000 (5000 *) | kg |
| * including additional supports | ||
