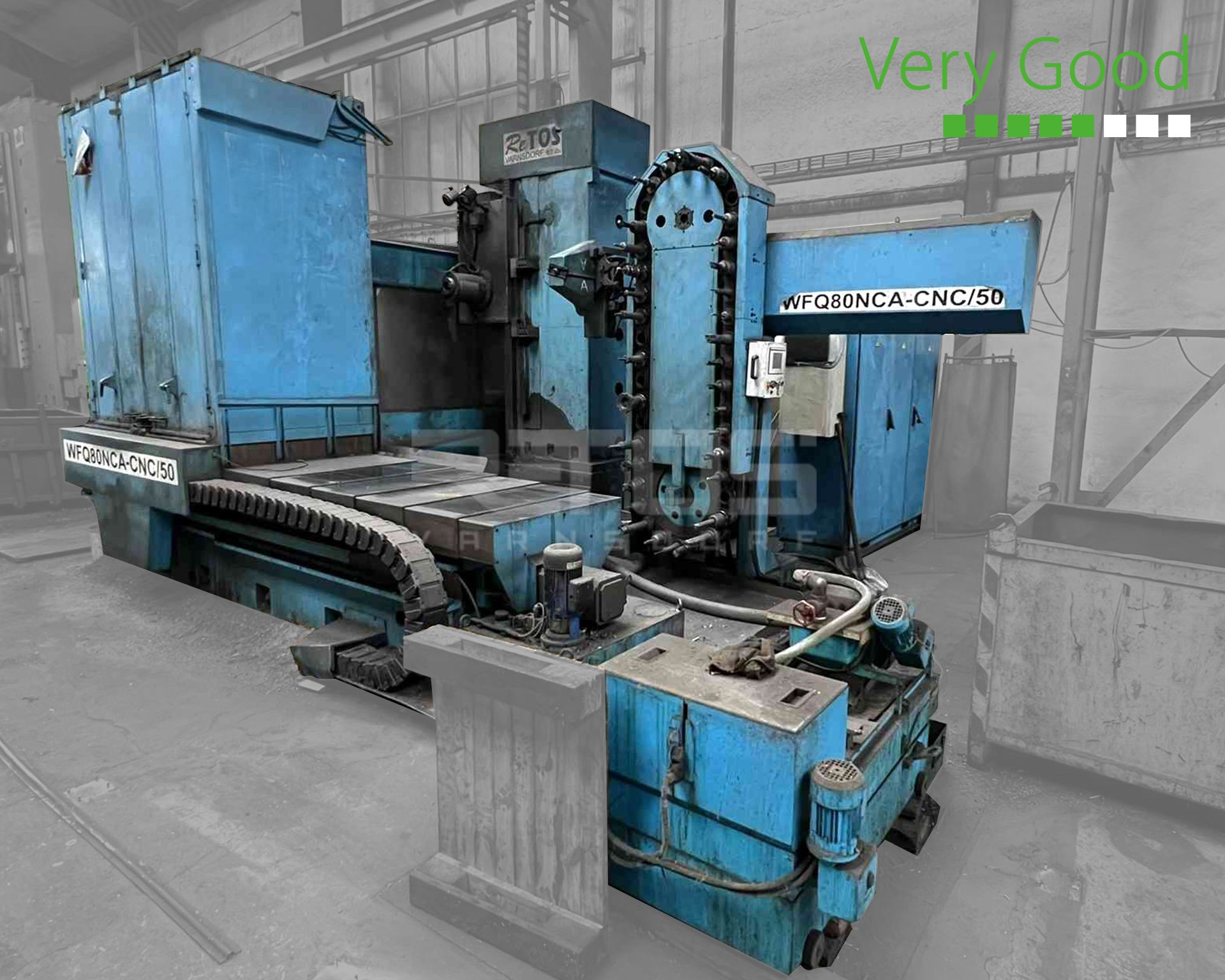

WFQ80NCA-CNC/50, 2005 | 2.12.2024
■ T-TYPE HORIZONTAL BORING MILL
■ PRODUCER: TOS VARNSDORF
■ PRODUCTION YEAR: 1990
■ MODERNISATION AND OVERHAUL YEAR: 2005 (RETOS)
■ REPAIR YEAR: 2024 (RETOS)
■ CONDITION: USED, VERY GOOD
■ WARRANTY: YES
■ IN STOCK AT THE SUPPLIER
SPECIFICATION
■ HEIDENHAIN iTNC530 control system + handwheel
■ SIEMENS motors and drives
■ CNC table - full B axis control
■ CHOV-K 10bar - cooling through spindle axis – emulsion
■ ATC40 - automatic tool changer
■ operator housing against swarf and water
■ workpiece cover
SCOPE OF REPAIR 2024
■ Cleaning
■ Revision and machine geometry adjustment
■ Revision of machine functionality
■ Revision of electrical equipment
■ Revision of hydraulic and lubrication
■ Clearance adjustment and drive optimisation
■ Replacing of guideway wipers
■ Repair of machine telescopic covers
■ Revision of tool cooling CHOV-K 10bar
■ Revision of automatic tool changer ATC40
MAIN PARAMETERS
| Workspindle diameter | 128.57 | mm |
| Clamping taper | 50 | ISO |
| Spindle speed range | 5000 | rpm |
| Table transversal travel (X) | 1600 | mm |
| Headstock travel (Y) | 920 | mm |
| Column longitudinal travel (Z) | 950 | mm |
| Table clamping surface | 850x850 (850x1600 *) | mm x mm |
| Table loading capacity | 3000 (5000 *) | kg |
| * including additional supports | ||
