W100A, 2025 | 13.01.2026

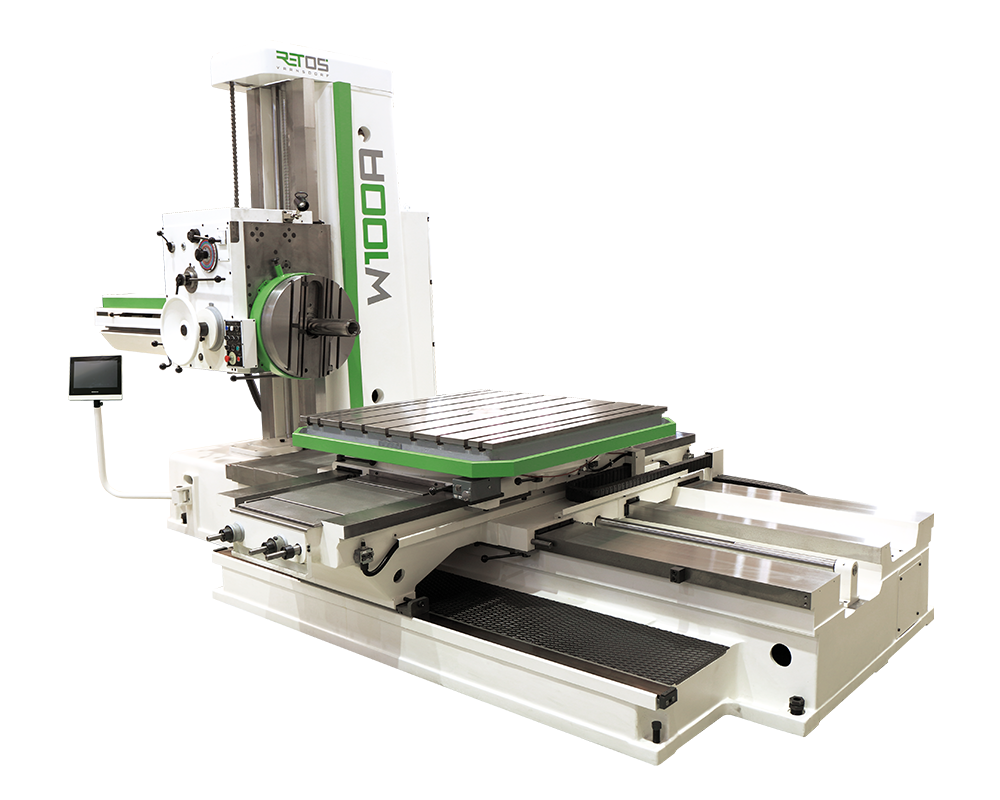

■ TABLE TYPE HORIZONTAL BORING MILL
■ PRODUCER: RETOS VARNSDORF
■ PRODUCTION YEAR: 2025
■ CONDITION: NEW
■ WARRANTY: YES
■ IN STOCK
SPECIFICATION
■ In PZI design – set up for additional mounting of rulers and DROs
■ Can be equipped with position measurement and other optional accessories - delivery on request
MAIN PARAMETERS
| Workspindle diameter | 100 | mm |
| Clamping taper | 50 | ISO |
| Spindle speed range | 1120 | rpm |
| Table transversal travel (X) | 1600 | mm |
| Headstock travel (Y) | 1120 | mm |
| Table longitudinal travel (Z) | 1250 / 1750 | mm |
| Spindle stroke (W) | 900 | mm |
| Table clamping surface | 1250 x 1250 | mm x mm |
| Table loading capacity | max. 3000 | kg |
